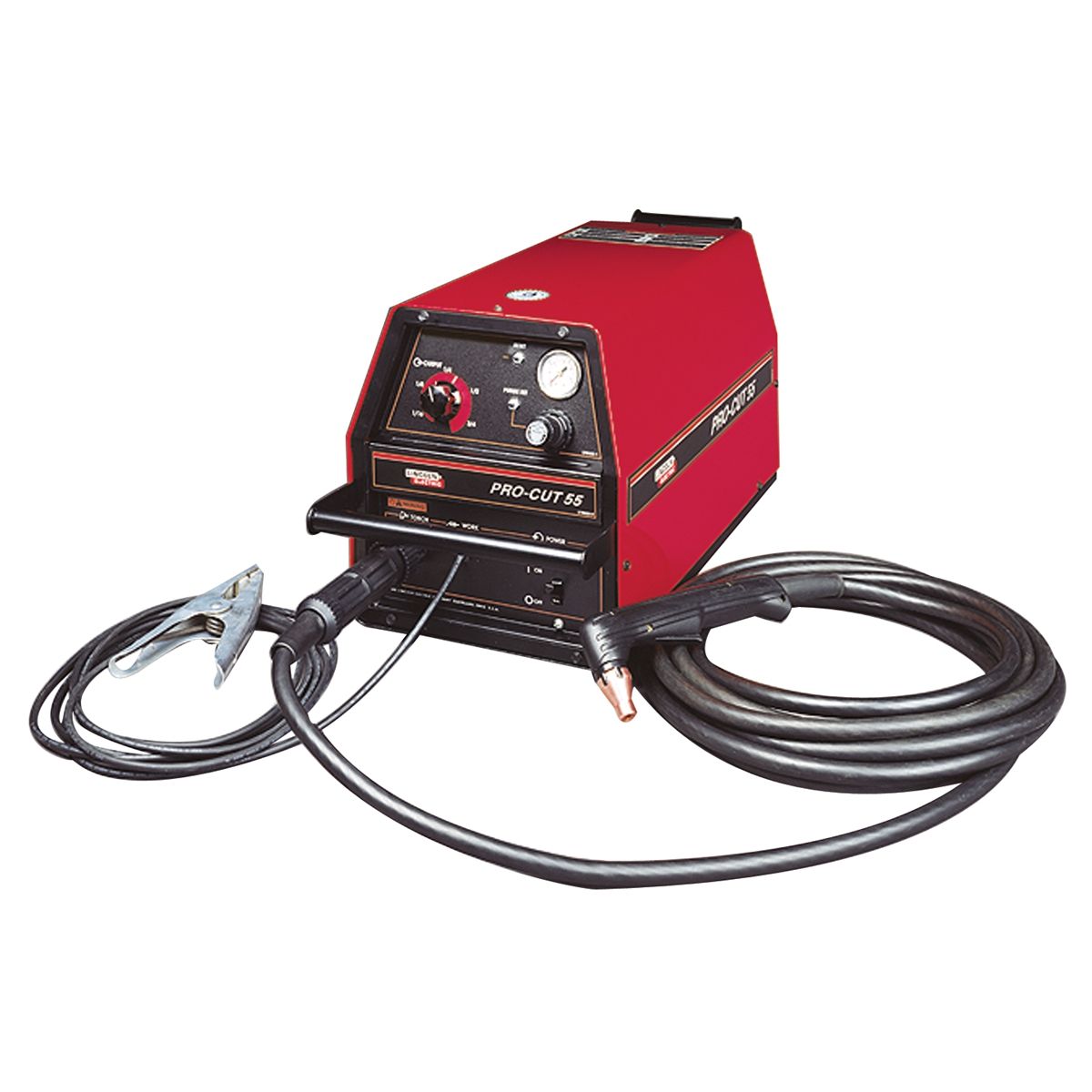

Pro Cut 55 Plasma Cutter w/ 25 Ft Torch

The Pro-Cut 55 is your top choice for industrial plasma cutting for HVAC, sheetmetal and light plate fabrication metalworking applications. Packed with patented features, the compact Pro-Cut generates 60 amps of cutting power capable of cutting conductive materials up to 3/4"(19.0 mm) thick. Its dual winding technology delivers easy starts, lower dross levels and quick arc transfer rates for fast re-strikes, even on expanded metal. Long-lasting VortechT technology torch concentrates the arc to deliver outstanding cutting efficiency. Patented Parts-in-Place safety indicator and lockout circuit protects both the operator and the system.

Features:

• 60 amps of power for world class performance up to 3/4" (19.0 mm) in only a 55 lb. (25 kg) package.
• Patented PCT 80 torch and VORTECHT technology consumables for excellent cutting speed and performance.
• Dual winding technology for fast arc transfers, and improved cut quality.
• Can be powered by most Lincoln engine driven welders for ultimate portability.
• Back-lit LED system for status indicators eliminates confusion yet conveys all the information necessary to monitor the power source readiness.
• Parts-in-Place safety indicator and lockout circuit to protect both the operator and the system.
• Quick disconnect torch for fast and easy torch removal.
• "Valet Style" undercarriage available for easy transport around the shop or site.
• Three-year warranty on parts and labor (1 year warranty on plasma torch).

Kit Includes:

• PCT 80 Torch
• Work lead and clamp
• Spare consumables
• Built-in air filter and pressure regulator with gauge.

Physical Specifications:

• Weight: 55 lbs. (25 kgs.)
• Dimensions (in) H x W x D: 12.6 x 11 x 26
• Dimensions (mm) H x W x D: 320 x 279 x 660
