Harley Davidson Alignment Tool - JIMS USA

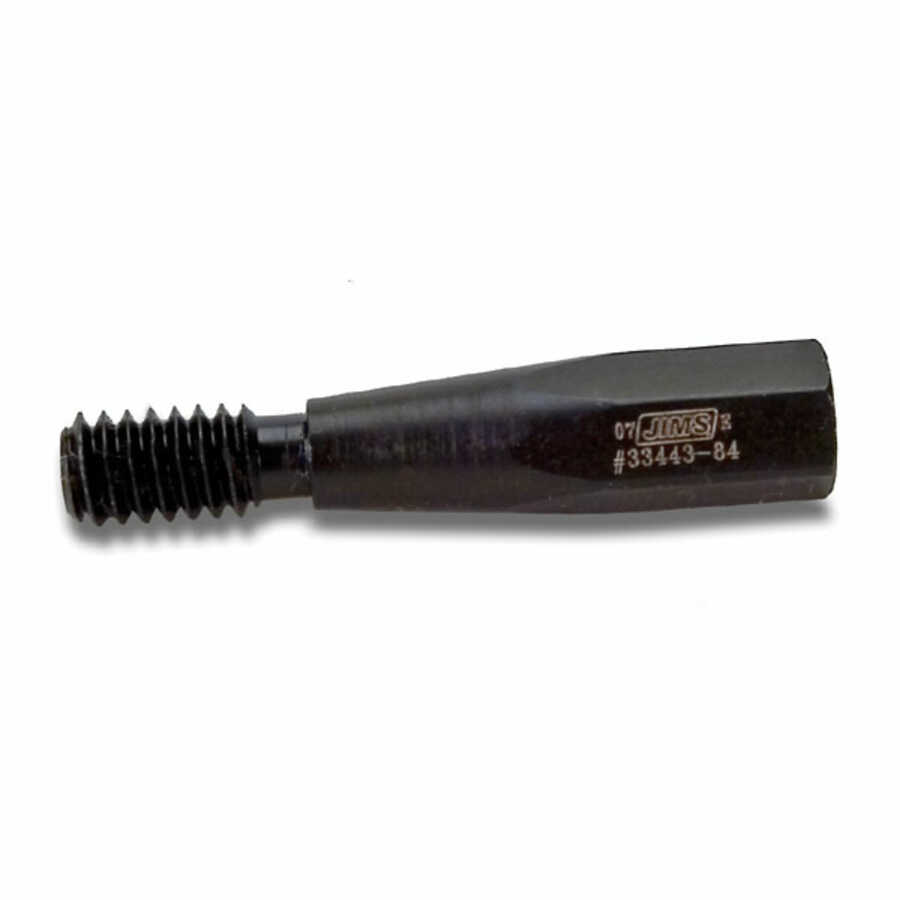

The JIMS USA 33443-84 Harley Davidson Alignment Tool is a professional-grade instrument engineered for precise component alignment within a range of Harley-Davidson engines. This critical tool aids technicians in maintaining optimal engine function and ensuring accurate fitment during demanding maintenance and repair tasks in workshop environments.

Key Features

• Precision Engineering: Features a meticulously machined bore, guaranteeing accurate alignment of vital engine components to extend engine longevity.
• Durable Construction: Manufactured from robust, high-quality steel, designed to withstand the rigors of repeated professional use in automotive and industrial settings.
• Damage Prevention: Ensures correct component alignment, effectively safeguarding against premature wear and potential engine damage, crucial for overall motorcycle reliability.
• Versatile Application: Facilitates multiple alignment functions across various Harley-Davidson engine types, enhancing its utility for professional mechanics.
• U.S.A. Manufactured: Proudly produced in the U.S.A., reflecting JIMS USA's commitment to quality and professional-grade tooling.

Applications

• Tappet Block Alignment: Accurately aligns the oil hole from the crankcase to the tappet block on Harley-Davidson Big Twin (late 1976-present, single cam) and Evolution engines (1984-1999).
• Oil Pump Alignment: Essential for precise oil pump alignment on Harley-Davidson Twin Cam models. This procedure often requires two of these alignment tools for optimal results.
• Rocker Box Alignment: Can also be utilized for aligning rocker box bases on Evolution heads, typically requiring two tools for proper positioning.
• Engine Maintenance & Repair: Integral for performing routine maintenance and critical repair services that involve precise engine component alignment, contributing to overall motorcycle reliability.

Specifications

• Manufacturer: JIMS USA
• Model Number: 33443-84
• Material: High-quality steel
• Thread Size: 1/4"-20 threads
• Compatibility: Harley-Davidson Big Twin (late 1976-present, single cam), Evolution engines (1984-1999), and Twin Cam models.
• Origin: U.S.A.
