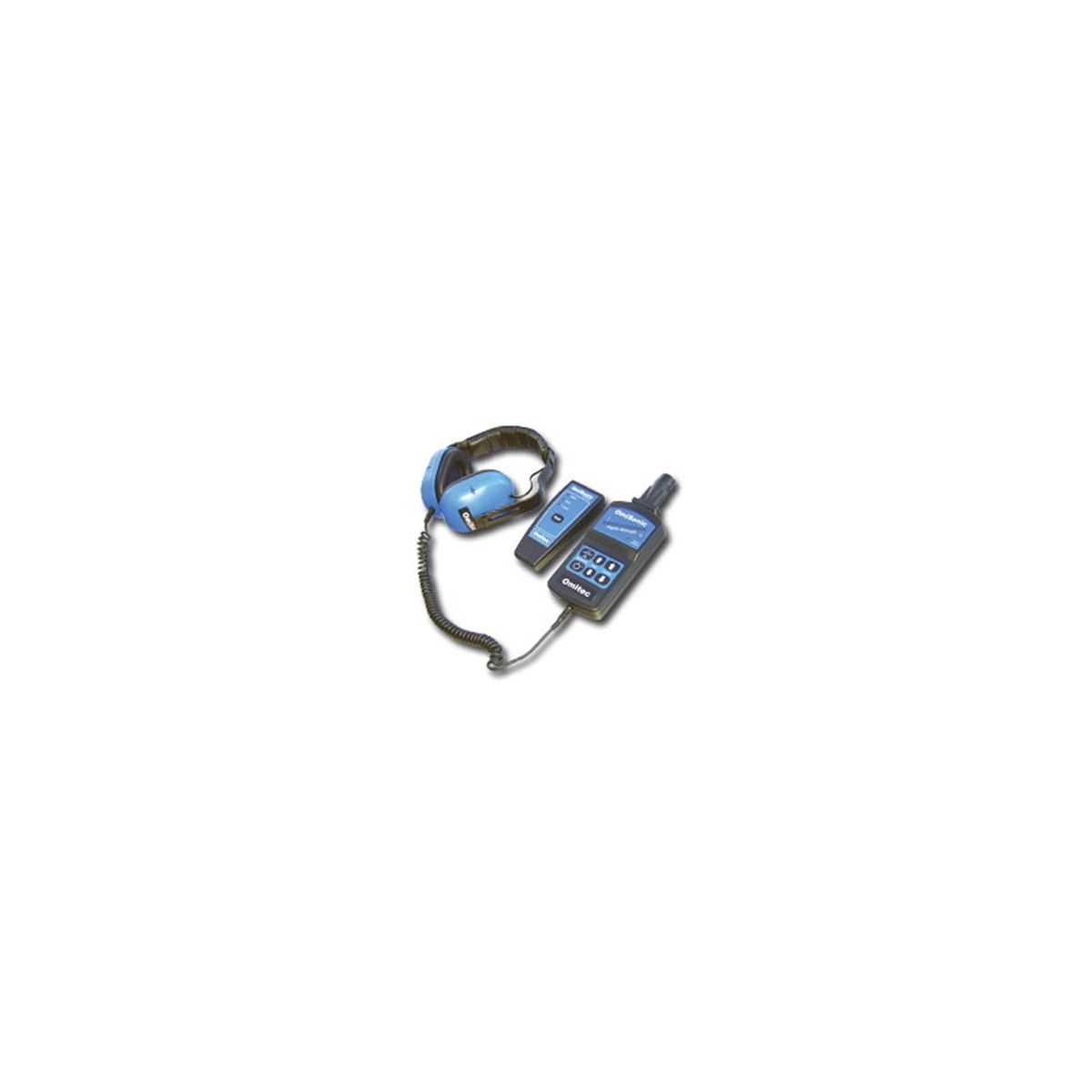

OmiSonic - Ultrasound Diagnostic System - Omitec, Inc.

The Omitec OmiSonic OM601 is a professional-grade ultrasound diagnostic system designed to provide technicians with a precise and efficient method for identifying and isolating a wide array of faults in automotive and industrial settings. This compact, easy-to-use tool utilizes advanced ultrasonic technology to quickly pinpoint problem areas that might otherwise go undetected, enhancing diagnostic accuracy and reducing repair times.

Key Features

• Precise Leak Detection: Equipped with a standard 40kHz general-purpose transducer and an included ultrasound transmitter, the system excels at identifying vacuum, pressure, and air leaks. A sophisticated twin filter system further refines detection, allowing for the precise isolation of even minute leaks.
• Professional Audio Isolation: The included professional headset is engineered to attenuate ambient noise, ensuring technicians can clearly discern critical diagnostic sounds without distraction.
• Versatile Probing Options: The OM601 kit includes both contact and acoustic wave guide probes, offering flexibility for various applications, such as examining fuel injectors or listening for internal component wear.
• Expandable Transducer Design: Featuring a detachable transducer head, the system is compatible with optional flex probes (not included in the OM601 kit), enabling access to confined or hard-to-reach areas for thorough inspection.
• Clear Visual Feedback: A 10-LED analog bar graph provides immediate visual indication of signal strength, complemented by dedicated LEDs for signal distortion, power status, and bandwidth.

Applications

The OmiSonic OM601 is an invaluable tool for diagnosing a diverse range of common vehicle and industrial issues. Technicians can efficiently locate and confirm vacuum and pressure leaks, accurately pinpoint windshield leaks and sources of wind noise, and identify failing mechanical components such as bearings, gears, and actuators. It is also well-suited for checking the operational integrity of electrical components, including relays, fuel injectors, and coil packs, by analyzing their ultrasonic emissions.

Specifications

• Weight: 0.25 kg (with battery and transducer head)
• Operating Temperature: -10 to +50°C
• Power Source: Single 9-volt alkaline battery
