Dial indicators are precision measurement tools used by machinists, mechanics, and other tradespeople to accurately measure small distances and variations. ToolSource carries 302 products in this category.
Dial indicators are essential for precise measurements in various applications, from checking runout on rotating parts to aligning machinery. Our selection includes a wide range of dial indicators, sets, and accessories to meet your specific needs. When you need to measure and inspect dimensional measurement indicators, ToolSource has you covered.
We stock dial indicators from trusted brands like Central Tools, known for their reliable and affordable options, and Fowler High Precision, offering high-accuracy instruments for demanding applications. ATD Tools and Milwaukee Electric Tools also provide durable and dependable dial indicators suitable for automotive and industrial use. For specialized applications, consider OTC Tools and Equipment, Alemite, Armstrong, and John Dow Industries, which offer indicators designed for specific tasks and environments.
Whether you're looking for a basic dial indicator for general measurements or a more advanced model with features like digital displays or wireless connectivity, you'll find it here. We also carry a variety of accessories, such as magnetic bases, extension points, and adapters, to help you get the most out of your dial indicator.
Frequently Asked Questions
Dial indicators are precision measuring instruments used to accurately measure small linear distances and variations. They are commonly used in machining, manufacturing, and inspection to check for runout, flatness, concentricity, and other dimensional characteristics. You'll find them indispensable for tasks like aligning machine tools or verifying the accuracy of parts.
When selecting a dial indicator, consider the required measuring range, resolution (accuracy), and the type of mounting needed. Also, consider the environment in which it will be used; some indicators are designed for harsh environments with features like shock resistance or water resistance. Brands like Fowler High Precision and Central Tools are known for their quality and durability.
There are several types of dial indicators, including standard dial indicators, test indicators (lever-type), and digital dial indicators. Standard dial indicators are versatile for general-purpose measurements, while test indicators are better suited for tight spaces and measuring runout. Digital dial indicators offer the convenience of a digital display and often include features like data output.
Dial indicators are typically mounted using a magnetic base, a clamp, or a dedicated indicator holder. The mounting method depends on the application and the surface you're measuring against. Ensure the indicator is securely mounted and properly aligned to obtain accurate readings. Many magnetic bases are available from brands like ATD Tools and OTC Tools and Equipment.
A dial indicator uses a plunger that moves linearly to measure distance, while a test indicator uses a lever arm that pivots. Test indicators are generally more sensitive and better suited for measuring in tight spaces or on curved surfaces. Dial indicators are more robust and suitable for general-purpose measurements requiring a larger measuring range.
The measuring range depends on the maximum distance you need to measure. The resolution, or accuracy, determines the smallest increment the indicator can display. For high-precision work, look for indicators with a resolution of 0.0001" or finer. ToolSource offers over 300 dial indicators with varying ranges and resolutions to suit different needs.

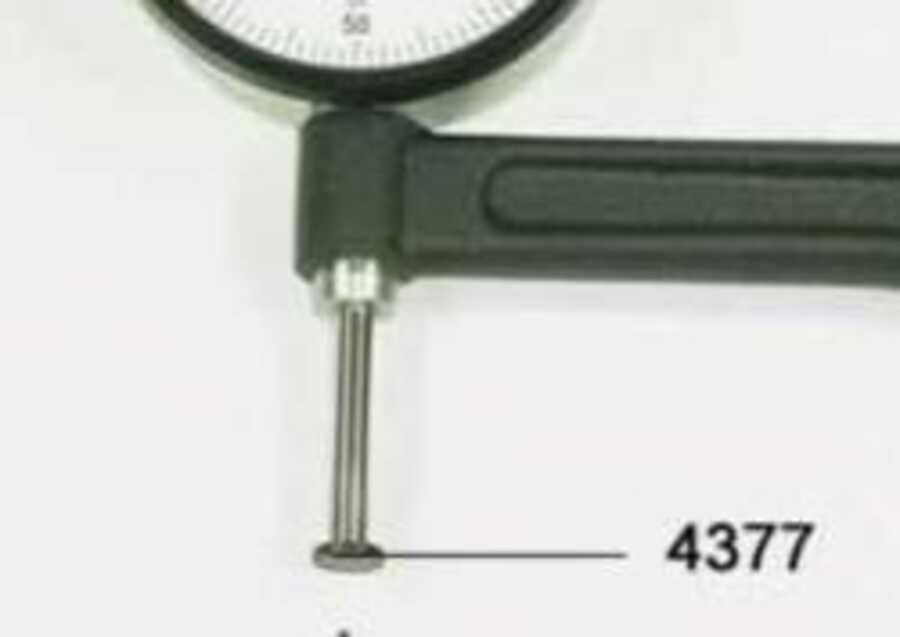

Yes, common accessories include different types of contact points (tips) to suit various surfaces and materials, extension rods to increase the measuring range, and magnetic bases for secure mounting. Consider accessories that improve the versatility and usability of your dial indicator. Brands like Alemite and Armstrong offer a variety of accessories compatible with their indicators and others.
To ensure accurate readings and prolong the life of your dial indicator, keep it clean and free from debris. Store it in a protective case when not in use and avoid exposing it to extreme temperatures or humidity. Regularly check the indicator for any signs of damage or wear and calibrate it as needed.
Dial indicators are indispensable measurement tools in the automotive industry, designed to provide precise readings for critical adjustments and inspections. These tools are commonly used to measure small linear distances, ensuring proper alignment and optimal functioning of engine components. Automotive mechanics rely on dial indicators for jobs such as verifying cylinder sleeve height, measuring piston-to-deck height, checking valve protrusion, and assessing counterbore depth. Their role in delivering precise measurements makes them vital for achieving accurate repairs, particularly in high-performance or heavy-duty applications where precision is non-negotiable.
Modern dial indicators are built for versatility and ease of use, featuring compact designs, clear graduations, and rugged construction to withstand demanding work environments. Tools like the Central Tools 6434 Sleeve Height & Counterbore Gage Dial Indicator offer precise measurements with a 1.00-inch range and .001-inch graduations, making it ideal for assessing sleeve heights or counterbore depths across all diesel engines. Similarly, universal kits such as the Kent-Moore J-8001 Dial Indicator Set are tailored for medium-duty truck applications, with a durable design that supports tasks like rear axle pinion settings and transmission endplay travel. Sophisticated options, such as the CDI Torque Electronic Dial Wrench, even combine digital readouts with advanced features like visual LED indicators and audible alarms, enhancing user convenience and accuracy.
From engine rebuilds to transmission adjustments, dial indicators streamline the measurement process, ensuring precision and confidence in every task. For automotive technicians who demand reliability and efficiency, dial indicators are irreplaceable tools that maximize accuracy and improve daily workflow.
