Cylinder Bore Gauges

Dial cylinder bore gauges and telescoping gauges for measuring cylinder bores and inside diameters during engine work.

Cylinder Bore Gauges

More than 50 products

Cylinder bore gauges from ToolSource provide precise internal diameter measurements for engine cylinders and other critical applications. We offer 51 different gauges ranging in price from $0 to $2497.44.

About Cylinder Bore Gauges

Cylinder bore gauges are essential tools for machinists and mechanics who need to accurately measure the internal diameter of cylinders. These gauges allow you to check for wear, out-of-roundness, and taper, ensuring proper engine performance and longevity. Our selection includes a variety of types, including dial bore gauges and telescoping gauges, to suit different measurement needs and budgets. Top search queries often involve finding gauges with specific ranges and resolutions.

We carry cylinder bore gauges from leading brands like Central Tools, known for their durability and value, and Fowler High Precision, which offers high-accuracy instruments for demanding applications. Kent-Moore gauges are often specified for automotive work, while Haltec and Milton Industries provide reliable solutions for tire and wheel maintenance. Atlas Automotive also offers dependable options for automotive professionals. Whether you're rebuilding an engine or performing routine maintenance, a quality cylinder bore gauge is a must-have tool.

Frequently Asked Questions

A cylinder bore gauge is a precision measuring instrument used to determine the inside diameter and roundness of engine cylinders. It allows technicians to accurately assess cylinder wear, taper, and out-of-roundness, which are critical factors in engine performance and longevity. These measurements help determine if a cylinder needs to be honed, bored, or sleeved.

ToolSource offers a variety of cylinder bore gauges, including dial bore gauges and telescoping gauge sets. Dial bore gauges, like those from Fowler High Precision and Central Tools, provide direct readings on a dial indicator. Telescoping gauge sets are used in conjunction with an external micrometer to determine the bore size.

When selecting a cylinder bore gauge, consider the measuring range required for your applications. Also, look for gauges with durable construction, a clear and easy-to-read dial indicator (if applicable), and the ability to be calibrated for accurate measurements. Some gauges, like those from Kent-Moore, are specifically designed for certain engine types.

The measuring range varies depending on the specific cylinder bore gauge. We offer gauges suitable for a wide range of cylinder sizes, from small engine cylinders to larger industrial applications. Be sure to check the product specifications to ensure the gauge's range meets your needs.

Yes, some cylinder bore gauges are designed for specific applications. For example, Kent-Moore offers specialized gauges for certain automotive engine types. Additionally, some gauges may be better suited for measuring smaller bores or for reaching deep within a cylinder block.

Proper use involves carefully inserting the gauge into the cylinder, rocking it to find the true diameter, and taking multiple readings at different depths and angles. Regular cleaning and calibration are essential for maintaining accuracy. Store the gauge in a protective case to prevent damage.

ToolSource carries a selection of reputable brands, including Central Tools, Fowler High Precision, Kent-Moore, haltec, Milton Industries, and Atlas Automotive. With 51 cylinder bore gauges currently in stock, you'll find a variety of options to suit your needs and budget.

Cylinder bore gauges are often used in conjunction with other tools such as external micrometers (for use with telescoping gauges), dial indicators, and honing tools. Micrometers are essential for accurately determining the bore size when using telescoping gauges. Honing tools are used to correct minor imperfections and achieve the desired cylinder finish after measuring with the bore gauge.
Displaying 1 to 36 (of 63 products)

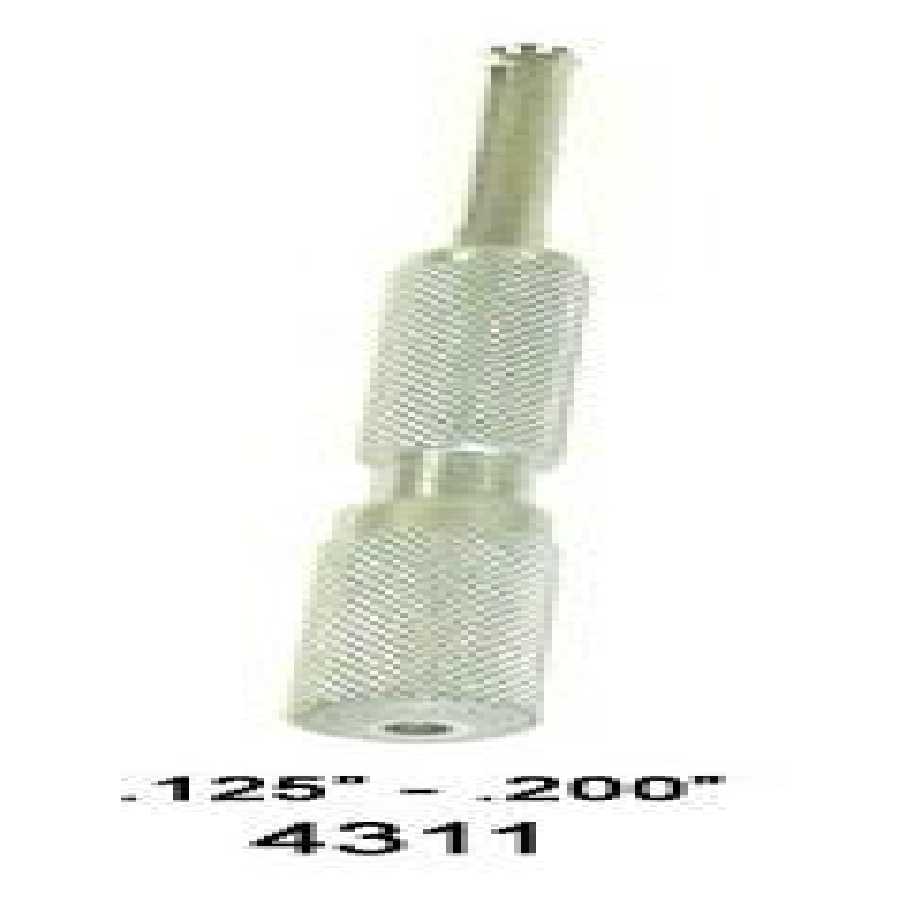

(image for) .125-.200" Individual Gauge
.125-.200" Individual Gauge
Central Tools 4311
Your Price: $34.37
(image for) .300-.400" Individual Gauge
.300-.400" Individual Gauge
Central Tools 4313
Your Price: $34.37
(image for) .400-.500" Individual Gauge
.400-.500" Individual Gauge
Central Tools 4314
Your Price: $34.37
(image for) 0.7-1.5" BORE GAGE
0.7-1.5" BORE GAGE
Fowler High Precision 72-646-100
Your Price: $204.13
(image for) 1.320 Cylinder Bore Gauge 6467 Extension
1.320 Cylinder Bore Gauge 6467 Extension
Central Tools 4232
Your Price: $8.56
(image for) 14mm Timing Gage Adapter
14mm Timing Gage Adapter
Central Tools 4220
Your Price: $39.11
(image for) 30mm Master 2 Cycle & Small Engine
30mm Master 2 Cycle & Small Engine
Central Tools 6483
Your Price: $294.06
(image for) 5/16-1/2" Precision Individual Gauge
5/16-1/2" Precision Individual Gauge
Central Tools 4349
Your Price: $33.10
(image for) 6 Pc Telescoping Gage Set
6 Pc Telescoping Gage Set
Central Tools 3S116
Your Price: $65.64
(image for) Adjustable Gauge 2-1/8" to 3-1/2"
Adjustable Gauge 2-1/8" to 3-1/2"
Central Tools 4353
Your Price: $59.04

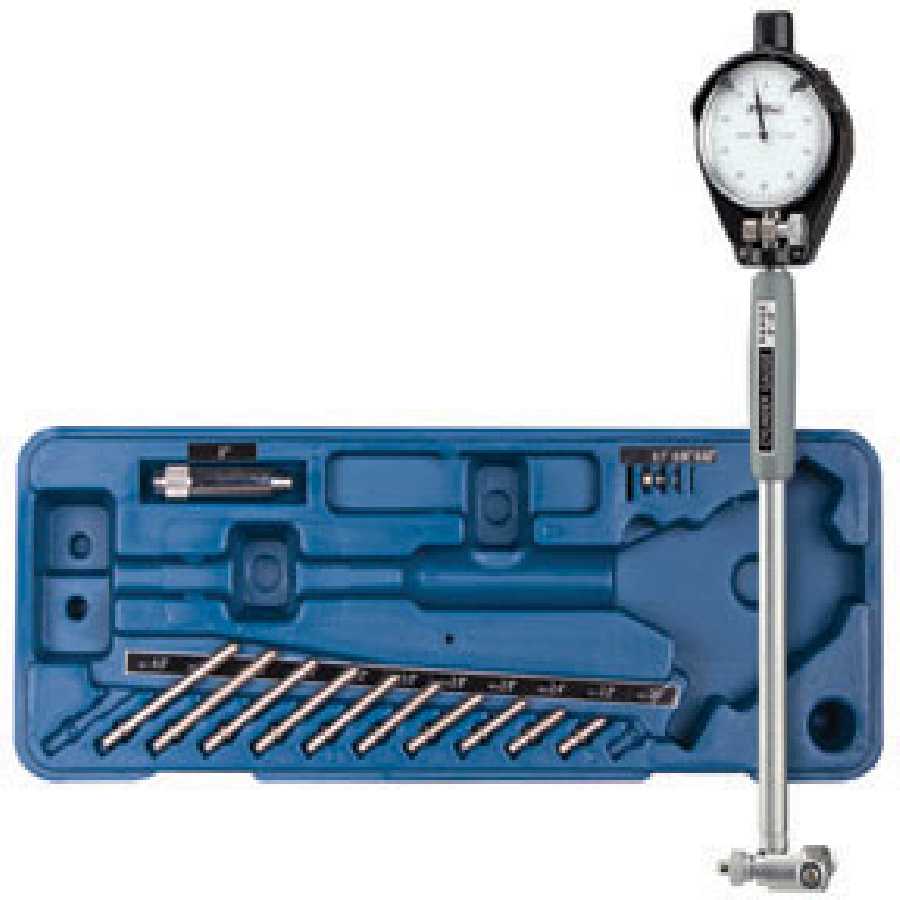

(image for) Cylinder Bore Gage 2 In - 6 In
Cylinder Bore Gage 2 In - 6 In
Fowler High Precision 72-646-300
Your Price: $178.65
(image for) Cylinder Bore Gauge Periscope Style 2.6 to 7" Range
Cylinder Bore Gauge Periscope Style 2.6 to 7" Range
Central Tools 6462
Your Price: $303.12
(image for) Dial Bore Gage 35-160mm
Dial Bore Gage 35-160mm
Fowler High Precision 726462200
Your Price: $338.87
(image for) Extended Range Cylinder Bore Gage
Extended Range Cylinder Bore Gage
Central Tools 3D302
Your Price: $265.66
(image for) Gage Set Small Hole
Gage Set Small Hole
Central Tools 6552
Your Price: $128.36
(image for) INSPECTION GAUG
INSPECTION GAUG
haltec ATG9755
Your Price: $75.83
List Price: $111.38
32% off
(image for) Pinion Setting Gauge Set
Pinion Setting Gauge Set
Kent-Moore J-23597-B
Your Price: $1,112.01
(image for) REVERSE MOUNT ADAPTER FOR PTC500
REVERSE MOUNT ADAPTER FOR PTC500
Atlas Automotive APP-9241446
Your Price: $1,449.99
(image for) Standard Test Gage Set 1"-5"
Standard Test Gage Set 1"-5"
Central Tools 6300
Your Price: $283.42
(image for) Telescoping Gage - Self-Centering H-D 1-1/4 to 2-1/8"
Telescoping Gage - Self-Centering H-D 1-1/4 to 2-1/8"
Central Tools 4352
Your Price: $40.18
(image for) Telescoping Gage - Self-Centering H-D 3-1/2 to 6"
Telescoping Gage - Self-Centering H-D 3-1/2 to 6"
Central Tools 4354
Your Price: $50.40
(image for) Telescoping Gage Set 5/16 In - 6 In
Telescoping Gage Set 5/16 In - 6 In
Fowler High Precision 72-470-006
Your Price: $107.34
(image for) Telescoping Gauge 5/16"-1/2"
Telescoping Gauge 5/16"-1/2"
Central Tools 4249
Your Price: $6.94
(image for) Telescoping Gauge Set - 6 Pc Heavy Duty
Telescoping Gauge Set - 6 Pc Heavy Duty
Central Tools 6554
Your Price: $163.44
(image for) Thermo Element Height Gauge
Thermo Element Height Gauge
Kent-Moore J-34094-A
Your Price: $223.18

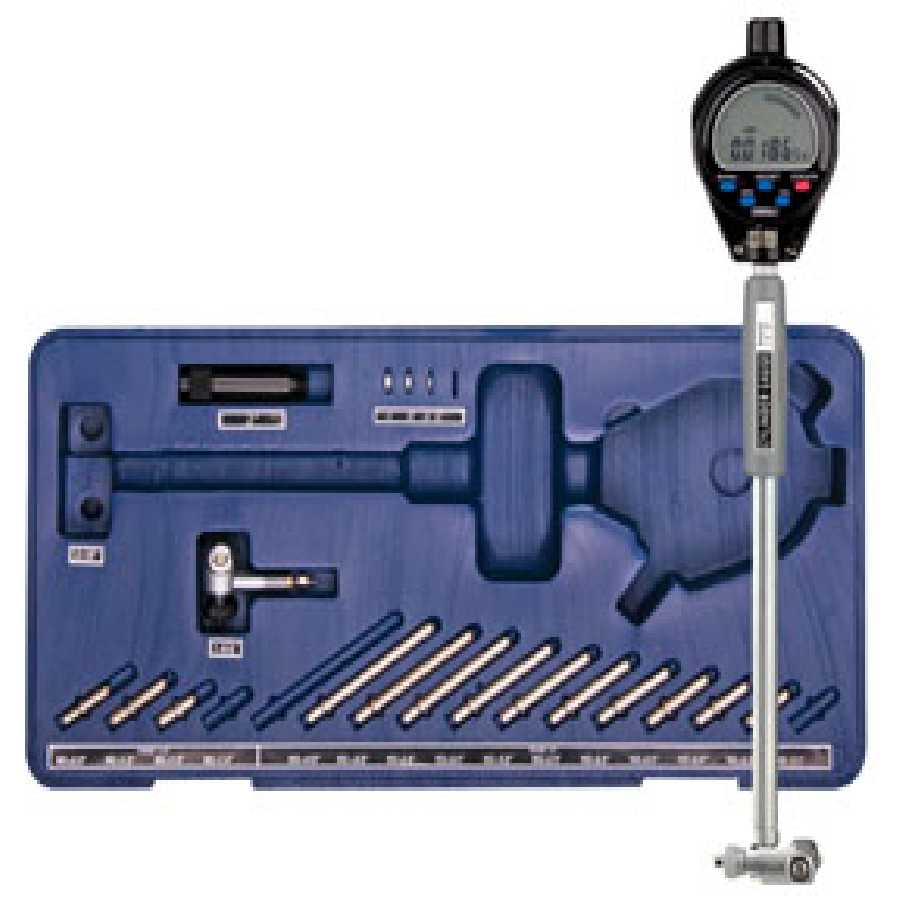

(image for) Xtender Electronic Cylinder Bore Gage
Xtender Electronic Cylinder Bore Gage
Fowler High Precision 74-646-401
Your Price: $405.00
(image for) Xtender Inch Dial Bore Gage Set w/ Carbide Anvils
Xtender Inch Dial Bore Gage Set w/ Carbide Anvils
Fowler High Precision 72-646-400
Your Price: $217.10
(image for) XTender-E Cylinder Bore Gage Set 1.4 - 6 In
XTender-E Cylinder Bore Gage Set 1.4 - 6 In
Fowler High Precision 74-646-401
Your Price: $246.16
(image for) Variable Temperature Heat Gun Kit
Variable Temperature Heat Gun Kit
Central Tools 3H202AK
Your Price: $65.08
(image for) 1.4-6" Bore Gage Set
1.4-6" Bore Gage Set
Fowler High Precision 72-646-500
Your Price: $282.26

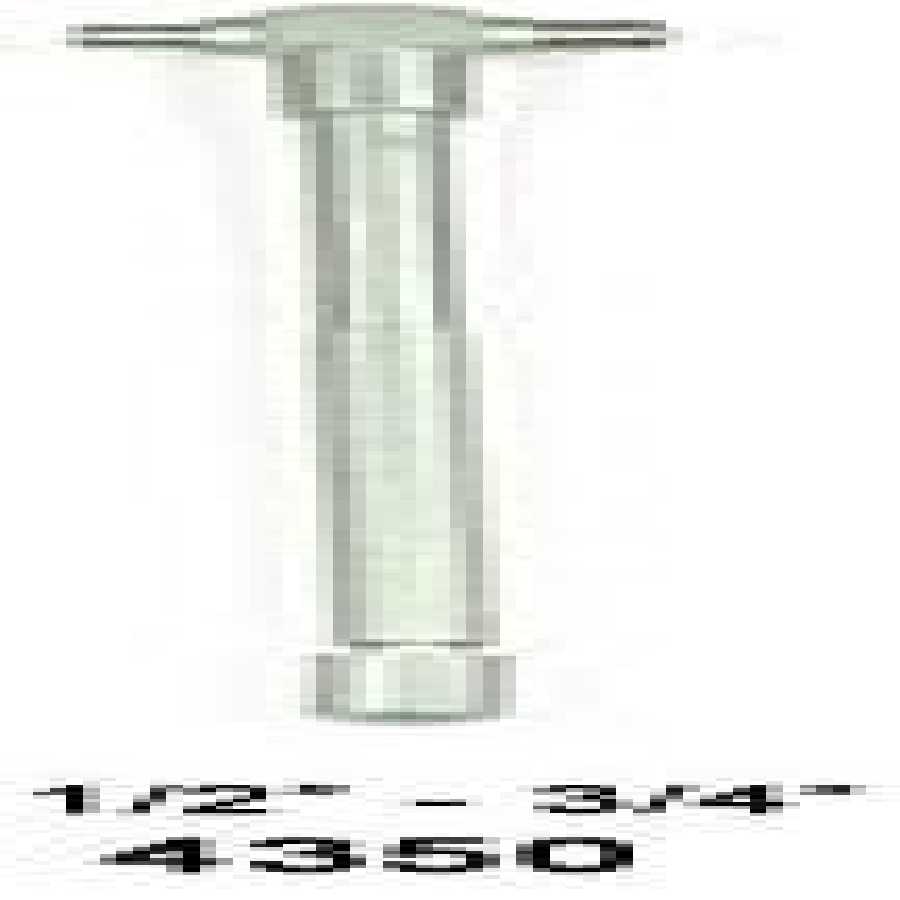

(image for) 1/2-3/4" Individual Gauge
1/2-3/4" Individual Gauge
Central Tools 4350
Your Price: $40.89
(image for) 2.130 Cylinder Bore Gauge 6467 Extension
2.130 Cylinder Bore Gauge 6467 Extension
Central Tools 4234
Your Price: $9.70
(image for) 2.530 Cylinder Bore Gauge 6467 Extension
2.530 Cylinder Bore Gauge 6467 Extension
Central Tools 4235
Your Price: $10.26
(image for) 3/4--1-1/4" Individual Gauge
3/4--1-1/4" Individual Gauge
Central Tools 4351
Your Price: $45.18
(image for) 4 Pc Gage Telescoping Set
4 Pc Gage Telescoping Set
Central Tools 6553
Your Price: $102.66
Displaying 1 to 36 (of 63 products)

Cylinder Bore Gauges

Cylinder bore gauges and telescoping gauges measure the inside diameter of a hole, most often an engine cylinder. This category holds dial cylinder bore gauges and telescoping gauges, with many sold in sets that cover a wide range of bores, such as 2 in. to 6 in. Engine rebuilders, machine shops, performance shops and industrial maintenance crews use them when checking cylinders, bearing bores and other inside diameters.

How a bore gauge works

A dial bore gauge is first set to a known size with a micrometer or setting ring. It is then rocked and moved through the bore, and the dial shows how far each spot is from that size. Readings taken at the top, middle and bottom of the cylinder, and in two directions, show taper and out of round, which tells an engine builder whether a block can be honed or needs boring.

Telescoping gauges

A telescoping gauge is a spring-loaded T-shaped gauge. It is placed in the hole, allowed to expand, locked, and then measured across with an outside micrometer. Self-centering designs help find the true diameter. They are a lower-cost way to measure many bore sizes, though they take more practice to read consistently.

Brands here include Central Tools, Fowler and Kent-Moore. Micrometers and dial indicators for use with these gauges are in the neighboring Measurement Tools categories.
