What are the different types of snap ring pliers, and when should I use each?

Snap ring pliers come in several varieties, each designed for specific applications. Fixed tip pliers, like some Stanley Proto models, offer maximum strength and precision for rings you encounter frequently. Convertible pliers, such as those from GearWrench, can switch between internal and external rings, offering versatility. For specialized tasks like removing snap-lock rings on brakes or transmissions, SK Hand Tool offers dedicated pliers designed for the job. Consider the range of snap rings you'll be working with when choosing the right plier type.

How do I choose the correct tip size and angle for my snap ring pliers?

Selecting the right tip size and angle is crucial for effective snap ring manipulation. The tip diameter must match the holes in the snap ring for a secure grip. Too small, and the tips will slip; too large, and they won't fit. Common tip angles include straight, 45-degree, and 90-degree. 90-degree tips are useful in tight spaces where straight access is limited. Always check the snap ring size and accessibility before selecting your pliers. Some Imperial pliers offer replaceable tips allowing you to adapt to different sized rings.

What's the difference between internal and external snap ring pliers?

Internal snap ring pliers are designed to compress snap rings located inside a bore or housing, while external snap ring pliers expand rings that fit around a shaft. The jaws of internal pliers are typically angled outwards, while external pliers have jaws angled inwards. Many pliers, especially convertible models like some GearWrench sets, can be configured for either internal or external use by changing the direction of the jaws. Always ensure you're using the correct type of plier for the specific snap ring you're working with.

How do convertible snap ring pliers work, and are they as strong as fixed-tip pliers?

Convertible snap ring pliers feature a mechanism that allows you to switch between internal and external snap ring applications, often by repositioning or reversing the plier tips. While convertible pliers offer versatility, fixed-tip pliers like those from Stanley Proto, generally provide greater strength and rigidity for heavy-duty applications. Convertible pliers are a good option for general use, but for frequent or high-torque applications, consider investing in dedicated fixed-tip pliers. Always inspect convertible pliers regularly for wear or looseness in the conversion mechanism.

What are some common applications for snap ring pliers in automotive repair?

Snap ring pliers are essential for various automotive tasks. They are commonly used for removing and installing snap rings on transmissions, brake systems, and axles. They're also useful for retaining rings on wheel bearings, CV joints, and other components. Straight tip lock ring pliers, such as some SK Hand Tool models, are specifically designed for spreading snap-lock rings found on brakes and transmissions. Always refer to the vehicle's service manual for specific snap ring locations and removal procedures.

What should I look for in the handles and grip of snap ring pliers?

The handles and grip of snap ring pliers are important for comfort, control, and safety. Look for pliers with ergonomic handles that fit comfortably in your hand. A non-slip grip is essential, especially when working in oily or greasy conditions. Some pliers, like certain SK Hand Tool models, feature vinyl-covered handles for added comfort and insulation. Always inspect the handles for damage or wear before each use, and replace the pliers if the handles are compromised.

Are there heavy-duty snap ring pliers available for larger snap rings?

Yes, heavy-duty snap ring pliers are designed for larger snap rings that require more force to compress or expand. These pliers typically have larger jaws, stronger tips, and longer handles for increased leverage. GearWrench offers combination heavy-duty snap ring pliers designed for larger rings. Always verify the pliers' specifications to ensure they are suitable for the size and type of snap ring you're working with. Using pliers that are too small or weak can damage the snap ring or the pliers themselves.

How do I know when to replace the tips on my snap ring pliers?

The tips of snap ring pliers are subject to wear and tear, especially with frequent use. Replace the tips when they become worn, bent, or damaged. Worn tips can slip out of the snap ring holes, causing damage or injury. Imperial offers replacement tips for some of their pliers, allowing you to extend the life of your tool. Regularly inspect the tips for any signs of wear and replace them as needed to maintain optimal performance and safety.

Search

Manufacturers [more]

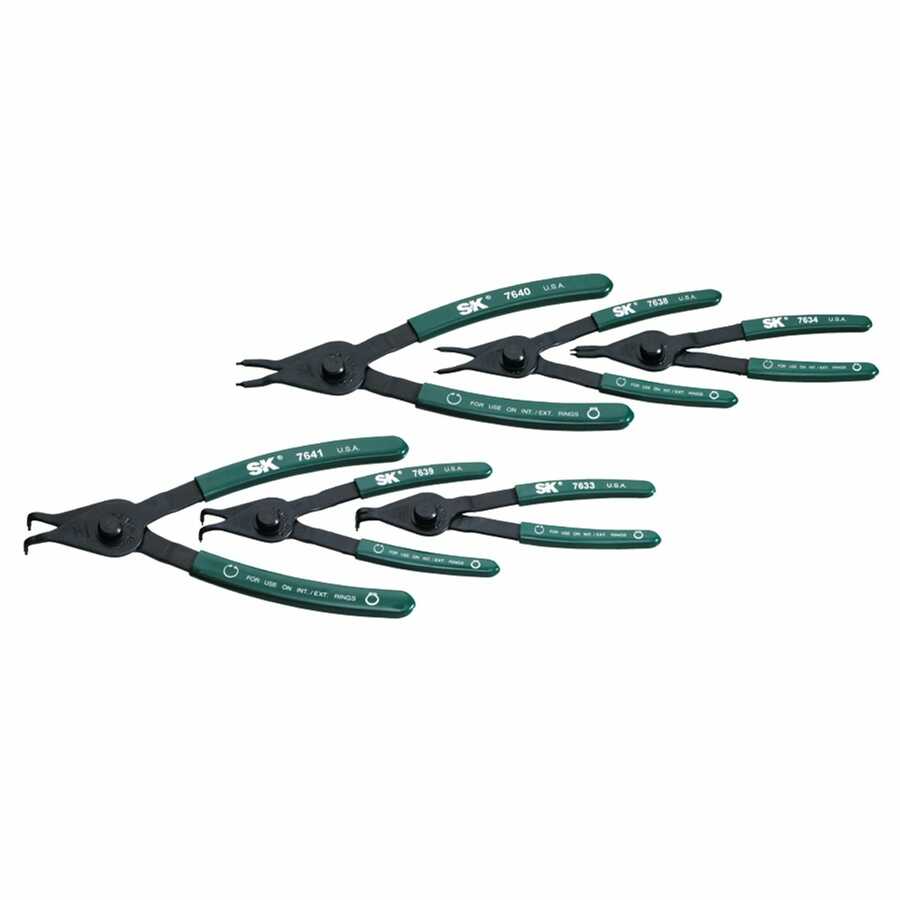

Convertible Retaining Ring Pliers Set - 6 Piece - SK Hand Tool

Name: Convertible Retaining Ring Pliers Set - 6 Piece
Brand: SK Hand Tool
SKU: 56288
Price: 270.59 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

Part #: 7600

larger image

Specifications

Model Number: 7600
Manufacturer: SK Hand Tool
Product Type: Convertible Retaining Ring Pliers Set
Set Count: 6 pieces
Weight: 2.15 lbs
7600

Key Features

Convertible Design: Each plier quickly converts between internal and external retaining ring applications.
Comprehensive Set: Includes multiple sizes and tip configurations to handle various retaining ring diameters.
Durable Construction: Manufactured for long-lasting performance in demanding environments.
Ergonomic Handles: Designed for comfortable grip and reduced hand fatigue during extended use.

Applications

Installing and removing internal and external retaining rings in a wide range of assemblies.
Essential for automotive maintenance, including brake systems, transmissions, and engine components.
Ideal for industrial machinery, farm equipment, and small engine repair.
Suitable for plumbing, electrical, and general mechanical work requiring secure fastening with snap rings.

Benefits

Enhanced Versatility: Effortlessly switch between internal and external retaining rings, eliminating the need for multiple specialized tools.
Increased Efficiency: The convertible design and comprehensive set save time and simplify tasks by providing the right tool for diverse applications.
Reduced Tool Investment: A 6-piece set addresses various retaining ring needs within a single, cost-effective solution.
Reliable Performance: Experience secure and precise retaining ring installation and removal, reducing the risk of component damage.
User Comfort: Enjoy improved control and reduced strain during operation, making challenging jobs more manageable.

Usually In Stock Usually ships in 24-48 hours Manufacturer Direct

$270.59

Add to Cart:

Other products
SK Hand Tool Homepage
Model: 56288
Shipping Weight: 2.15lbs
Manufacturers Part #: 7600
Manufactured by: SK Hand Tool
Also Known As: SK7600, SK7600, SKT-7600

Earn 1% Back On Every Purchase (Rewards Program)

We are Here To Help (Contact Us)

1 person has this item in their cart!

Write Review

This product was added to our catalog on Monday 05 February, 2007.
