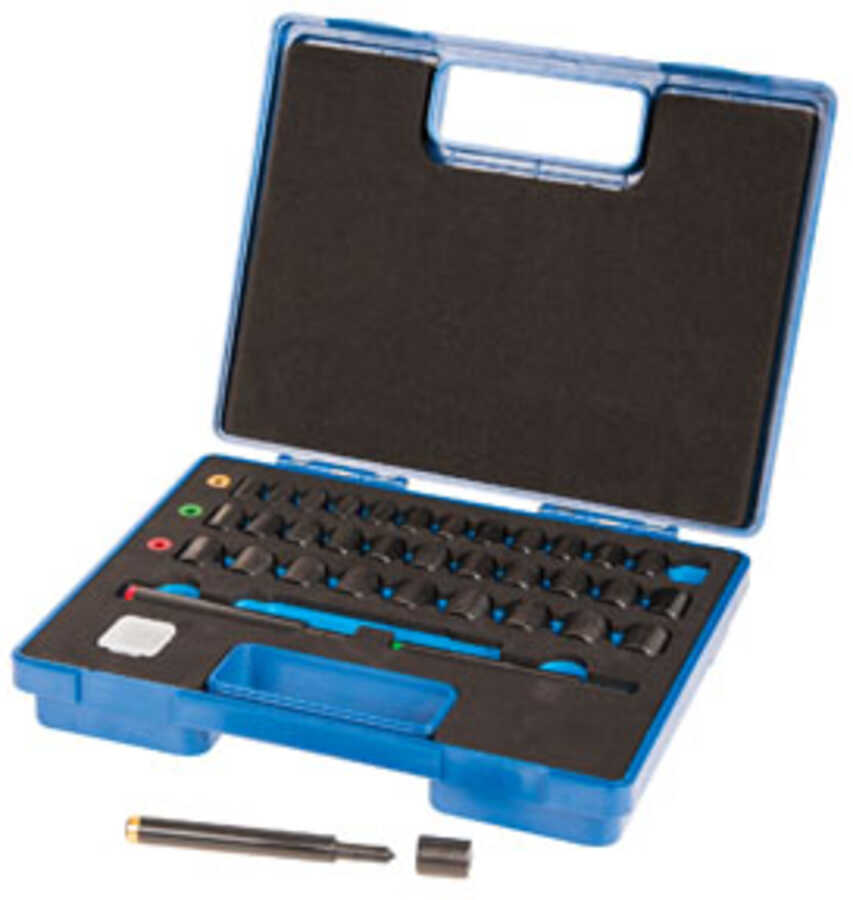

36PC HD TRANSFER PUNCH SET -

This 36-piece Heavy-Duty Transfer Punch Set provides a reliable and precise solution for duplicating hole patterns in professional automotive and industrial settings. Engineered for accuracy and repeatability, this set enables technicians to efficiently transfer existing bolt patterns to new components, streamlining layout work and ensuring precise alignment with OEM specifications without rework.

Key Features

• Comprehensive 36-Piece Coverage: Offers a wide selection of closely stepped punch diameters, enabling precise matching of common bolt and fastener hole sizes found in various brackets, mounts, and fixtures.
• Heavy-Duty Construction: Each punch is engineered to withstand repeated hammer strikes, making them suitable for demanding fabrication and repair shops working with materials such as steel, aluminum, and other common shop materials.
• Accurate, Centered Marking: The straight, cylindrical design ensures punches remain aligned within existing holes, producing a clean and centered mark on the new workpiece for precise drilling and machining.
• Easy Size Identification: Each transfer punch is clearly size-marked, facilitating quick selection and reducing setup time at the drill press, mill, or chassis bench.
• Organized and Complete Set: Supplied as a full set to keep all sizes together, promoting efficiency and minimizing the risk of lost or mismatched punches in a busy shop environment.

Applications

This professional-grade transfer punch set is ideal for accurately duplicating hole locations when fabricating or modifying engine mounts, transmission crossmembers, suspension brackets, shock mounts, exhaust hangers, radiator supports, and accessory brackets. It is commonly utilized in metal fabrication, chassis and race car construction, tool and die work, jig and fixture building, and general machining where existing bolt patterns must be precisely replicated on new parts.

Specifications

• Model Number: 72-482-040-0
• Set Size: 36 individual transfer punches
• Approximate Weight: 5.5 lb
• Type: Heavy-Duty Transfer Punch Set
