What is an automotive multimeter and what does it measure?

An automotive multimeter is a diagnostic tool used to measure various electrical parameters in a vehicle's electrical system. Primarily, it measures voltage (both AC and DC), current (amps), and resistance (ohms). Automotive multimeters often include additional features like continuity testing (to check for broken circuits), diode testing, and sometimes even temperature or frequency measurement. Some advanced models, like the Actron Auto TroubleShooter, include specialized tests for engine analysis.

What's the difference between an auto-ranging and a manual-ranging multimeter?

An auto-ranging multimeter automatically selects the correct measurement range for the signal being tested, simplifying the process for users. A manual-ranging multimeter requires the user to manually select the appropriate range before taking a measurement. Auto-ranging multimeters, like the Innova Auto Ranging Digital Multimeter, are generally easier to use, especially for beginners, as they eliminate the guesswork of range selection. However, manual-ranging multimeters can sometimes offer faster response times in specific situations.

What is continuity testing on a multimeter, and how is it used in automotive diagnostics?

Continuity testing is a function on a multimeter that checks if a circuit is complete and unbroken. When the multimeter detects a continuous path, it usually emits an audible beep. In automotive diagnostics, continuity testing is used to check fuses, wires, switches, and other electrical components to identify open circuits or breaks in the wiring. It can also be used to trace wires and identify shorts to ground. Always ensure the circuit is de-energized before performing a continuity test to prevent damage to the multimeter or personal injury.

What does it mean when a multimeter has 'high impedance' and why is that important for automotive use?

A high impedance multimeter has a very high internal resistance, meaning it draws very little current from the circuit being tested. This is crucial in automotive applications because modern vehicles have sensitive electronic control units (ECUs) and sensors that can be affected by even small amounts of current draw. Using a low impedance multimeter on these circuits could potentially damage the components or provide inaccurate readings. Most modern digital multimeters, including those from Fluke and UEI, are designed with high impedance inputs for safe and accurate automotive testing.

What are some common automotive electrical problems a multimeter can help diagnose?

A multimeter is an essential tool for diagnosing a wide range of automotive electrical issues. Some common problems include a dead battery (voltage test), a faulty alternator (voltage and current test), a blown fuse (continuity test), a malfunctioning sensor (voltage and resistance test), or a short circuit (resistance test). By systematically testing different components and circuits, you can pinpoint the source of the problem and make the necessary repairs. Remember to consult the vehicle's service manual for specific testing procedures and acceptable voltage/resistance ranges.

What are multimeter fuses, and why are they important?

Multimeter fuses are safety devices designed to protect the multimeter's internal circuitry from overcurrent damage. If excessive current flows through the multimeter due to a misconnection or a fault in the circuit being tested, the fuse will blow, interrupting the current flow and preventing damage to the meter. It's crucial to use the correct type and amperage rating fuse for your multimeter. For example, OTC Tools and Equipment offers replacement fuses for their multimeters, including 0.5 Amp and 20 Amp versions. Always replace a blown fuse with one of the same rating to ensure proper protection.

Can a multimeter measure RPM (revolutions per minute) in a car engine?

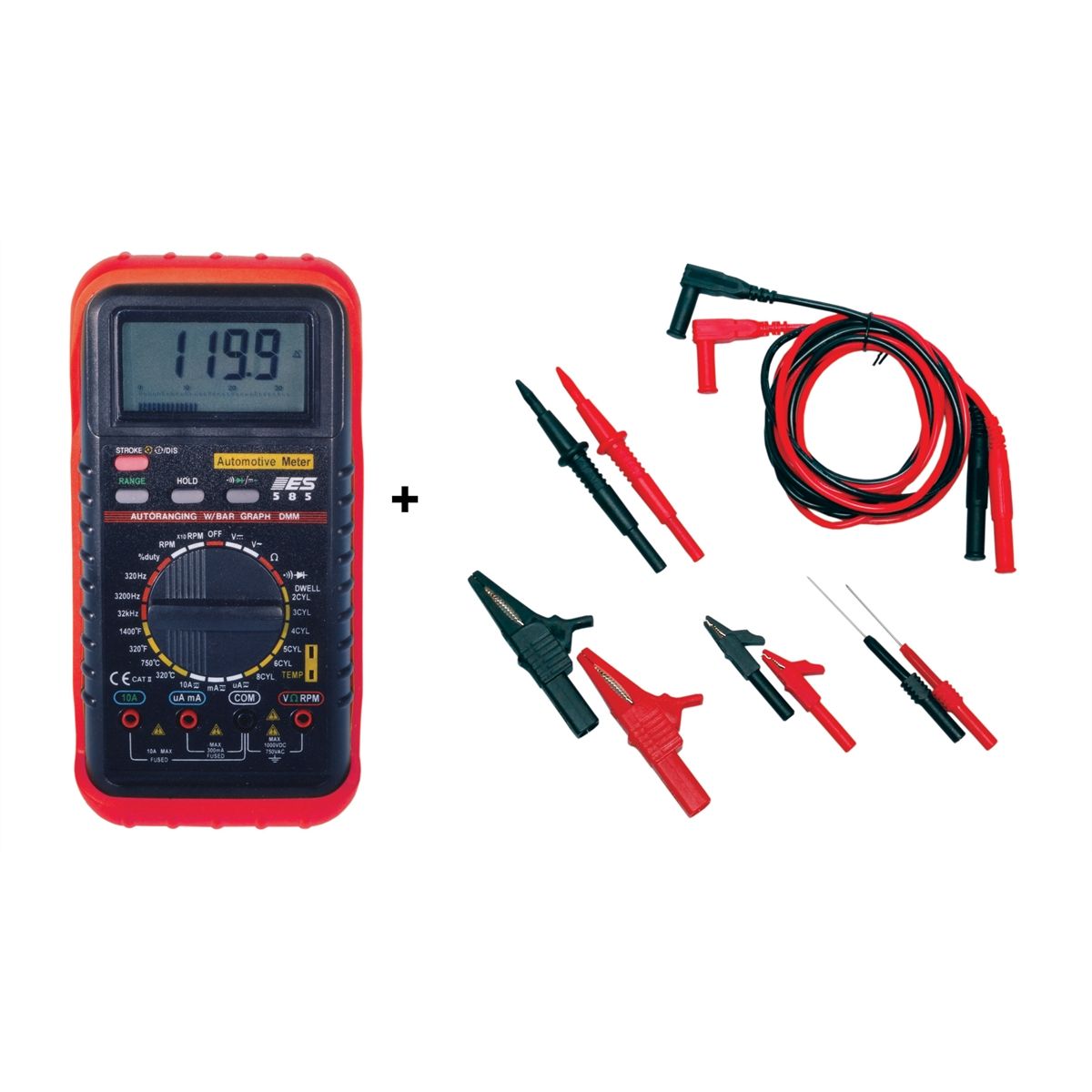

Some specialized automotive multimeters, like the Electronic Specialties Deluxe Automotive Multimeter, include an inductive RPM pickup that allows you to measure the engine's RPM. This inductive pickup clamps around a spark plug wire and detects the pulses of the ignition system. Standard multimeters without this feature cannot measure RPM. If RPM measurement is a requirement, ensure the multimeter specifically advertises this functionality and includes the necessary inductive pickup.

How do I safely measure current (amps) with a multimeter in an automotive circuit?

Measuring current requires connecting the multimeter in series with the circuit, meaning you must interrupt the circuit and allow the current to flow through the meter. This is different from measuring voltage, which is done in parallel. Ensure the multimeter is set to the appropriate current range (amps) and that the test leads are connected to the correct terminals. Be extremely cautious when measuring high currents, as improper connections or exceeding the meter's current rating can damage the meter or cause personal injury. Always refer to the multimeter's instruction manual for specific safety guidelines.
