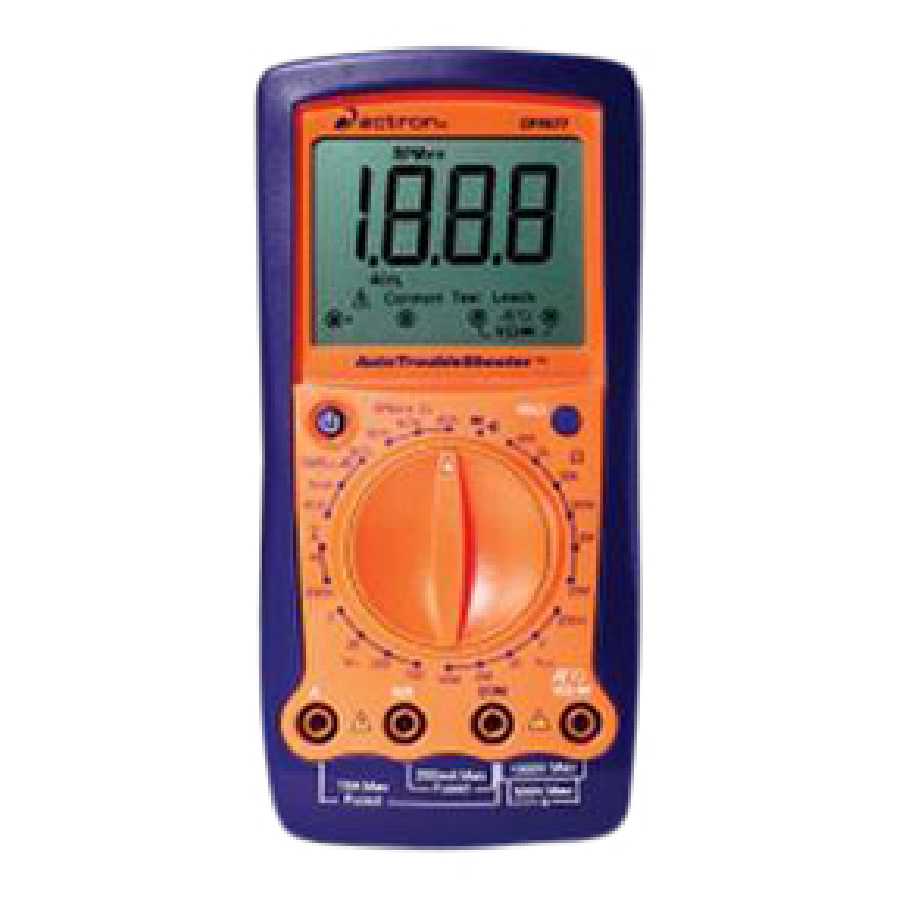

Auto TroubleShooter Digital Multimeter Engine Analyzer - Actron Manufacturing

The Actron CP7677 Auto TroubleShooter Digital Multimeter Engine Analyzer is a professional-grade diagnostic tool engineered for automotive and industrial technicians. This versatile instrument provides comprehensive electrical testing capabilities, enabling efficient diagnosis of engine performance issues, electrical faults, and system malfunctions across a wide range of vehicles and industrial applications. It is designed to pinpoint problem areas quickly, streamlining repair and replacement processes.

Key Features

• Performs all standard electrical tests, including AC/DC voltage, DC current, and resistance measurements, for thorough on-car and bench troubleshooting.
• Tests engine RPM and dwell for 4, 6, and 8-cylinder engines, aiding in precise ignition system diagnostics.
• Evaluates starting & charging, ignition, and fuel delivery systems to identify performance issues and component failures.
• Features an extra-large, easy-to-read digital LCD with a data hold function, on-screen test lead connection reminder, and automatic reverse polarity indication for user convenience.
• Built-in overload protection on all ranges and a durable protective boot ensure reliability and longevity in demanding shop environments.
• Includes a comprehensive user manual with illustrated, step-by-step automotive test procedures and examples in English, Spanish, and French.

Applications

The Actron CP7677 is an indispensable tool for a variety of diagnostic tasks, including:

• Locating faulty wiring, open circuits, and short circuits within vehicle electrical systems.
• Testing electrical components such as engine sensors, solenoids, switches, and relays.
• Diagnosing issues within engine management systems, ignition systems, and fuel delivery systems.
• Assessing the health and performance of vehicle starting and charging systems.
• Performing continuity checks and diode tests on various electrical components.

Specifications

• DC Voltage: 200mV to 1000V
• AC Voltage: 2V to 750V
• DC Current: 200mA to 10A
• Ohms: 200 to 20M
• Diode Check: Yes
• Dwell: 4, 6, 8 CYL
• Tach: Yes
• Continuity: Yes
