What is an ignition tester and why would I need one?

An ignition tester is a diagnostic tool used to verify the presence and strength of the spark in an engine's ignition system. It helps determine if the spark plugs are receiving adequate voltage from the ignition coil, which is essential for combustion. You would use an ignition tester when diagnosing a no-start condition, misfires, or rough running issues. By quickly checking for spark, you can narrow down potential problems to the ignition system rather than fuel delivery or other engine components.

What are the different types of ignition testers available?

There are several types of ignition testers, each with slightly different applications. Inline spark testers, like the Lisle Ignition Spark Tester, connect between the spark plug and the spark plug wire to visibly show the spark. Adjustable spark testers, such as the Thexton Mfg Co Ignition Spark Tester, allow you to adjust the gap to test spark strength under different simulated loads. Some testers, like the GearWrench Calibrated Ignition Tester, measure the actual voltage of the spark. Finally, inductive spark testers can detect spark without direct contact, which is useful for testing coils directly.

How do I use an inline spark tester?

To use an inline spark tester, first disconnect the spark plug wire from the spark plug. Then, connect one end of the inline tester to the spark plug and the other end to the spark plug wire. Start the engine and observe the tester. A visible spark indicates that the ignition system is producing a spark. If there's no spark, or a weak spark, it suggests a problem with the coil, wiring, or other ignition components. Always follow the tool manufacturer's instructions and exercise caution when working near a running engine.

What does a calibrated ignition tester do, and when would I use it?

A calibrated ignition tester measures the voltage required to jump a specific gap, giving you a quantitative measure of spark strength. This is useful for diagnosing weak coils or ignition modules, especially in high-energy ignition systems. By comparing the measured voltage to the manufacturer's specifications, you can determine if the ignition system is performing within its optimal range. A calibrated tester provides more precise information than a simple inline spark tester, which only indicates the presence of spark.

Can ignition testers be used on both standard and high-energy ignition systems?

Yes, many ignition testers can be used on both standard and high-energy ignition systems, but it's crucial to choose a tester that is rated for the voltage range of the system you're testing. Some testers, like the Thexton Mfg Co Adjustable Ignition Spark Tester, have adjustable settings to accommodate different ignition systems. Always check the tester's specifications to ensure it's compatible with the system you're working on to avoid damaging the tester or the vehicle's ignition system.

How do I test spark plug wires with an ignition tester?

Some ignition testers, like the Lisle Spark Tester, are designed to test spark plug wires without puncturing them. With the engine running, place the tester's probe along the length of the spark plug wire. If the tester indicates a spark, the wire is conducting electricity. A weak or absent spark suggests a damaged or degraded wire. Remember to keep the probe away from any moving engine components. Always follow the specific instructions for your tester model.

What safety precautions should I take when using ignition testers?

When using ignition testers, always exercise caution due to the presence of high voltage. Ensure the engine is in a well-ventilated area to avoid carbon monoxide poisoning. Avoid touching any bare metal parts of the ignition system or tester while the engine is running. Wear appropriate personal protective equipment (PPE), such as insulated gloves and eye protection. Disconnect the negative battery cable before performing any major repairs to the ignition system. Always follow the manufacturer’s instructions for both the ignition tester and the vehicle.

What does it mean if my ignition tester shows a weak spark?

A weak spark indicated by an ignition tester can point to several potential issues. It could signify a failing ignition coil, corroded or loose wiring connections, a faulty ignition module, or even a weak battery. It may also mean a spark plug is worn or damaged, causing it to require more voltage to fire. Further diagnosis is needed to pinpoint the exact cause, but a weak spark is a clear indicator that the ignition system is not performing optimally. Check the spark plug condition, wiring, and coil before replacing any components.

Search

Manufacturers [more]

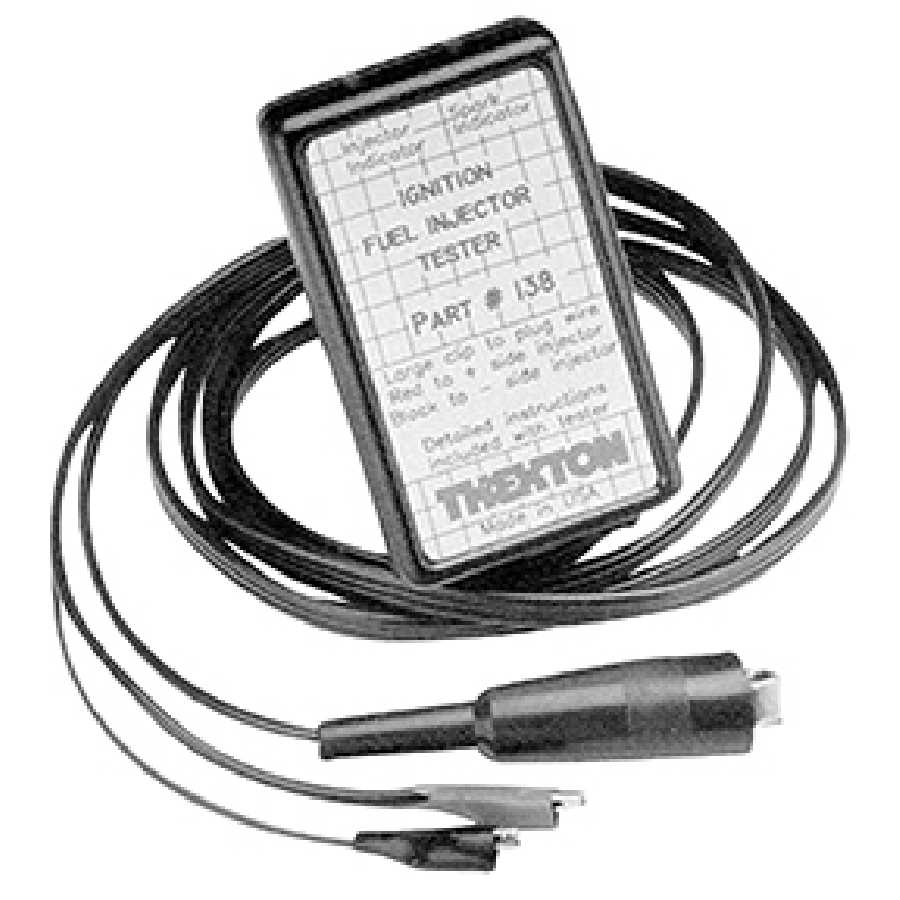

Ignition & Fuel Injection Pulse Tester - Thexton 138 - Thexton Mfg Co

Name: Ignition & Fuel Injection Pulse Tester - Thexton 138
Brand: Thexton Mfg Co
SKU: 54333
Price: 80.76 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

Part #: 138

larger image

Specifications

Manufacturer: Thexton Mfg Co Thexton THEXTON
Model Number: 138
Weight: 0.5 lbs
Dimensions: 7 x 4 x 2.1 inches

Key Features

Dual Functionality: Designed to test both ignition and fuel injection pulses, making it a versatile diagnostic tool for mechanics and technicians.
Compact Design: Lightweight and compact at only 0.5 lbs, allowing for easy handling and storage in toolkits.
Universal Compatibility: Compatible with most vehicle ignition and fuel injection systems, ensuring broad usability across different makes and models.
Durable Construction: Built to withstand the demands of frequent use in automotive repair facilities.
User-Friendly: Simple operation for efficient and fast troubleshooting, even for less experienced users.

Applications

Ignition System Testing: Quickly identify ignition pulse issues to diagnose engine misfires or starting problems.
Fuel Injection Diagnostics: Easily verify fuel injector pulses to ensure proper engine performance and fuel delivery.
Automotive Maintenance: Suitable for use in professional repair shops, automotive service centers, and personal garages for vehicle diagnostics.
Multi-Vehicle Servicing: Ideal for testing on a wide range of vehicles, including cars, trucks, and motorcycles with compatible systems.

Benefits

Saves Time: Streamlines the diagnostic process, reducing time spent troubleshooting ignition and fuel systems.
Increases Accuracy: Offers precise readings for identifying issues effectively, avoiding unnecessary part replacements.
Boosts Efficiency: Enables quick detection of problems, helping technicians service more vehicles in less time.
Portable and Convenient: Small size and lightweight build make it easy to carry and use in tight spaces.
Cost-Effective: Provides a reliable, long-lasting solution for diagnosing ignition and fuel system problems, reducing the need for costly repairs or additional tools.
