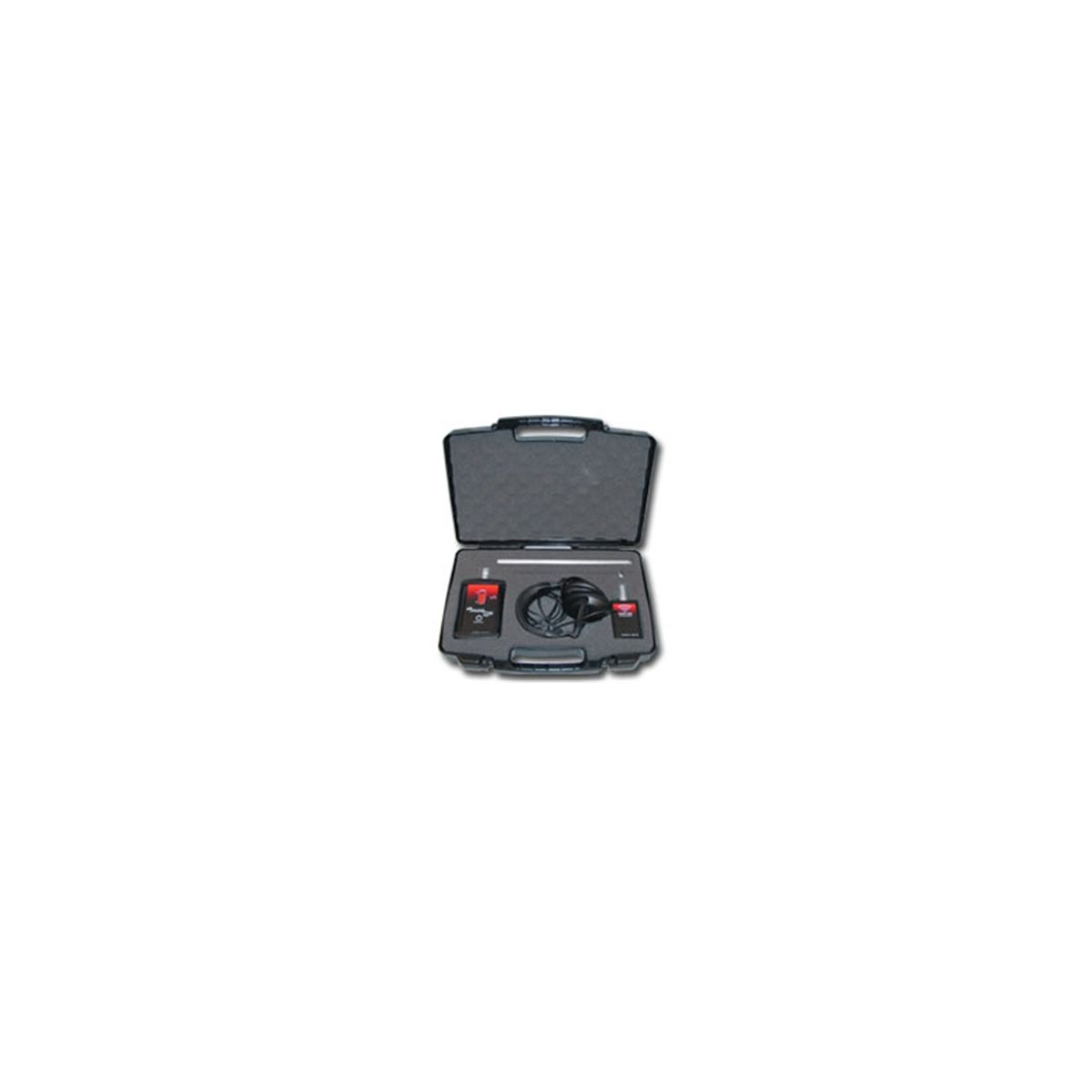

Sound Trap Ultrasonic Diagnostic Kit - Visual Optics

The Visual Optics UST-1000K Sound Trap Ultrasonic Diagnostic Kit provides professional technicians and mechanics with an advanced solution for efficiently pinpointing hidden problems in automotive and industrial equipment. By detecting high-frequency ultrasonic waves beyond the range of human hearing, this robust kit significantly reduces diagnostic time and enhances preventative maintenance strategies. This Visual Optics model is identical to the Tracerline TP-9370, a result of Tracerline acquiring this product line.

Key Features

• Ultrasonic Detection Principle: Accurately identifies high-frequency ultrasonic emissions generated by friction from moving parts, turbulent liquids, gases, and electrical discharges, enabling early detection of critical issues.
• Highly Directional Sound Isolation: The system's ability to detect directional ultrasonic waves allows for precise localization of a suspect sound signature, effectively isolating it from background noise for accurate diagnosis.
• Versatile Application Range: Designed for investigating a broad spectrum of repair and preventive maintenance areas, from subtle leaks to mechanical wear and electrical faults.
• Sensitive Frequency Response: The receiver is precisely calibrated to a frequency range of 36,000 to 44,000 Hertz, ensuring optimal sensitivity for detecting minute ultrasonic signals.
• Complete Diagnostic System: Includes an ultrasound receiver, an ultrasound transmitter (Soni-Pod) matched to the Sound Trap's peak response, various probe attachments, and noise-isolating headphones, all within a protective carrying case.
• Professional-Grade Durability: Constructed for demanding workshop environments and backed by a 12-month warranty, ensuring reliable performance for essential diagnostic tasks.

Applications

The Sound Trap Ultrasonic Diagnostic Kit is an indispensable tool for efficient troubleshooting across numerous systems:

• Leak Detection: Effectively locates air leaks in vacuum and compressed air systems, gas and liquid turbulence associated with steam traps, internal valve leaks, cavitation, and blockages in lines. It can detect a differential of 1 psi and holes as small as 0.005 inches.
• Electrical System Analysis: Pinpoints electrical discharge issues such as insulation breakdown, tracking, corona, and arcing in ignition systems and other electrical components.
• Mechanical Wear Assessment: Identifies early signs of wear in bearing and race assemblies, shafts, and gears, providing insights into their lubrication status and impending failure.
• Engine and HVAC Diagnostics: Used to inspect ignition systems, vacuum problems, air brake systems, internal combustion engine valving, piston blow-by, and A/C system refrigerant leaks.
• Seal and Container Integrity: In conjunction with the Soni-Pod transmitter, it detects cracks in containers, assesses the integrity of door seals, and checks compartments in refrigerated van bodies and air ducts.
