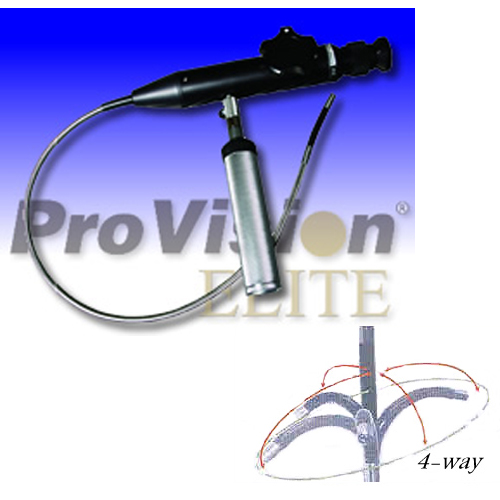

ProVision Elite Articulating Scope / Fiberscope - 60 In 4-Way - ProVision

The ProVision Elite Articulating Scope / Fiberscope (PVAE660x4) is a professional-grade diagnostic tool engineered for automotive and industrial technicians. This advanced scope provides a super high-resolution view and a controllable 4-way articulating lens, enabling thorough and precise inspection of inaccessible areas where traditional methods fall short.

Key Features

• High-Resolution Imaging: Equipped with over 10,000 pixels, this scope delivers a clear and detailed view of internal components and tight spaces, crucial for accurate diagnostics.
• Precision 4-Way Articulation: An ergonomic control knob allows for responsive, multi-directional articulation (+/- 120°) of the lens, offering comprehensive viewing angles (up, down, left, right) without the need to extensively reposition the shaft.
• Durable, Professional-Grade Construction: Built with precision-machined aircraft-grade aluminum and a flexible, braided stainless steel (SS) shaft covering, ensuring resilience in demanding shop and industrial environments.
• Optimized Illumination: Features a medical-quality light source to provide bright, consistent illumination, ensuring optimum viewing clarity even in dimly lit internal cavities.
• Extended Reach & Maneuverability: A 60-inch (1524 mm) shaft length combined with a slim .236 inch (6 mm) outer diameter allows technicians to access deep, narrow passages with ease.

Applications

This articulating fiberscope is an invaluable tool for a wide range of diagnostic and inspection tasks:

• Automotive Diagnostics: Ideal for inspecting engine cylinders, valves, turbochargers, fuel injectors, catalytic converters, and transmission components, reducing the need for extensive disassembly.
• Industrial Inspections: Facilitates the examination of turbines, pipes, welds, castings, and machinery for defects, wear, or foreign object debris (FOD) in manufacturing, maintenance, and quality control settings.
• Quality Assurance: Used to verify internal assembly, check for burrs, cracks, or blockages in complex systems across various industries.

Specifications

• Shaft O.D.: .236 in (6 mm)
• Shaft Length: 60 in (1524 mm)
• Articulation: Four-Way All Directions +/- 120°
• Bend Radius: 1.5 in (36 mm)
• Field of View: 50° Std.
• Depth of Field: .2 - 4.0 in (5-100mm)
• Shaft Construction: Flexible, Braided SS Covering
