What are feeler blades used for in automotive work?

Feeler blades, also known as feeler gauges, are precision tools used to measure small gaps or clearances between two parts. In automotive applications, they are commonly used to set valve lash, measure spark plug gaps, check bearing clearances, and ensure proper spacing in various mechanical assemblies. A set of feeler blades, like those from GearWrench, contains multiple blades of different thicknesses, allowing you to find the blade that precisely fits the gap, indicating the clearance.

What's the difference between a standard feeler gauge and a wire feeler gauge?

Standard feeler gauges use flat, thin metal blades to measure clearances, while wire feeler gauges use thin wires of precise diameters. Blade-style gauges are suitable for measuring flat, parallel surfaces, like valve tappets. Wire feeler gauges are better suited for measuring the gap in spark plugs or other round objects where a flat blade won't provide an accurate measurement. Some applications may call for one or the other, but blade-style sets are more common overall.

How do I choose the right feeler blade thickness for my application?

The required feeler blade thickness is dictated by the manufacturer's specifications for the component you're working on. Consult your vehicle's repair manual or the component's documentation to find the correct clearance value. Feeler gauge sets like the GearWrench 2274 offer a range of blade thicknesses, allowing you to select the closest match. It's best to choose a blade that slides with slight resistance; too loose or too tight indicates an incorrect measurement.

What are the advantages of using offset feeler blades?

Offset feeler blades, like those found in some GearWrench sets, have a bend or angle near the tip. This design allows easier access to hard-to-reach areas, such as valve tappets located deep within the engine compartment. The offset provides clearance around obstructions, making it simpler to insert the blade into the gap and obtain an accurate measurement. This is especially useful in compact engine designs or when working with limited space.

What should I consider when buying a feeler gauge set?

Consider the range of thicknesses included in the set, the material of the blades (steel is common, but brass is used in some applications), and the overall quality of construction. A set with a wide range of thicknesses, like those from Lisle, offers greater versatility. Also, check the accuracy and precision of the blades. A well-made set will provide consistent and reliable measurements, ensuring proper adjustments and preventing potential damage to your engine or other components.

How do I properly use and maintain feeler blades to ensure accuracy?

Keep your feeler blades clean and free from oil, grease, and debris. Before use, wipe the blades with a clean cloth to remove any contaminants that could affect the measurement. Avoid bending or damaging the blades, as this can compromise their accuracy. Store the feeler gauge set in a protective case or pouch to prevent damage and maintain its condition. Regularly inspect the blades for wear or damage and replace them if necessary.

Are metric and inch feeler gauges interchangeable?

No, metric and inch feeler gauges are not directly interchangeable. While there are conversion charts, it's best to use the correct unit of measurement specified in the service manual. Using the wrong type can lead to significant errors in your measurements and adjustments. Feeler gauge sets are available in both metric and inch sizes, so choose the set that matches the specifications for your application to avoid mistakes.

What is a thread pitch gauge and how does it relate to feeler blades?

A thread pitch gauge, like the Hanson English & Metric Pitch Gauge, is used to determine the distance between threads on a screw or bolt. While not technically a feeler blade, it uses a similar principle of matching a profile to a gap. Instead of measuring clearance, it identifies thread size. It's crucial for identifying fasteners and ensuring you're using the correct replacement parts. While feeler gauges measure linear gaps, thread pitch gauges measure the characteristics of screw threads.

Search

Manufacturers [more]

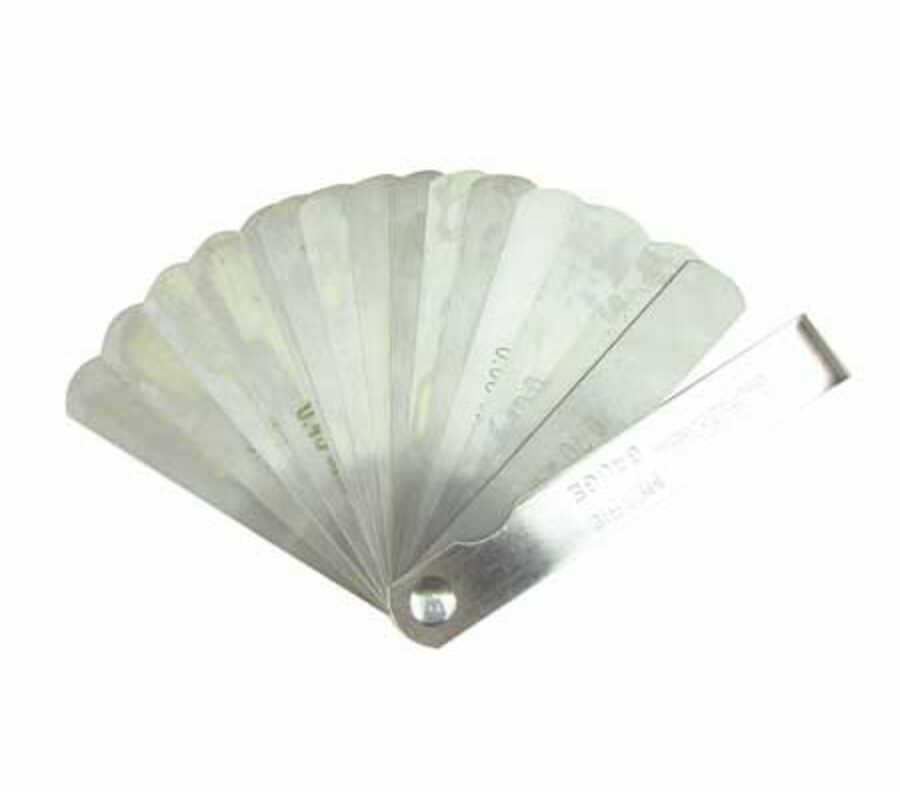

Lang | 342A | Metric Feeler Gauge Set 15 Blade

Name: Metric Feeler Gauge Set 15 Blade
Brand: Lang
SKU: 78412
Price: 8.39 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

larger image

Specifications

Manufacturer: Lang Lang Tools (Kastar)
Model Number: 342A (342A)
Blade Count: 15 blades
Measurement System: Metric
Weight: 2 lbs
Dimensions: 6 x 2 x 2 inches

Key Features

Precision Metric Blades: This feeler gauge set includes 15 accurately machined metric blades, providing a wide range of precise measurements for various applications.
Durable Construction: Crafted for longevity, the blades and holder are designed to withstand regular use in demanding environments.
Clear Blade Markings: Each blade is distinctly marked with its thickness in metric units, enabling quick and error-free identification.
Compact Design: The set's ergonomic and compact form factor ensures easy storage and portability, making it convenient for both workshop and field use.
Secure Locking Mechanism: Blades can be securely locked into position, preventing movement during measurement and ensuring consistent readings.

Applications

The Metric Feeler Gauge Set 15 Blade is an essential tool for accurately measuring small gaps, clearances, and tolerances in numerous professional and DIY settings, including:

Setting valve clearances in automotive engines.
Checking spark plug gaps.
Measuring bearing play and component spacing.
Inspecting brake disc runout.
Calibrating machine tools and equipment.
Performing general maintenance and assembly tasks requiring precise gap verification.

Benefits

Ensures Accuracy: Achieve precise gap measurements to maintain equipment specifications, optimize performance, and prevent premature wear.
Enhances Efficiency: The clearly marked, comprehensive set of blades allows for quick identification and measurement, streamlining maintenance and adjustment tasks.
Boosts Reliability: Rely on a robust and accurate tool for consistent results, reducing guesswork and improving the quality of your work.
Versatile Performance: Address a broad spectrum of measurement needs across automotive, industrial, and general mechanical applications with one versatile tool.
User-Friendly Operation: The straightforward design and clear markings make this feeler gauge set easy to use for both experienced professionals and hobbyists.

Other products
Lang Homepage
Model: 78412
Shipping Weight: 1lbs
Manufacturers Part #: 342A
Manufactured by: Lang
Also Known As: KH342A, KAS342A, LNG-342A
