What are feeler blades used for in automotive work?

Feeler blades, also known as feeler gauges, are precision tools used to measure small gaps or clearances between two parts. In automotive applications, they are commonly used to set valve lash, measure spark plug gaps, check bearing clearances, and ensure proper spacing in various mechanical assemblies. A set of feeler blades, like those from GearWrench, contains multiple blades of different thicknesses, allowing you to find the blade that precisely fits the gap, indicating the clearance.

What's the difference between a standard feeler gauge and a wire feeler gauge?

Standard feeler gauges use flat, thin metal blades to measure clearances, while wire feeler gauges use thin wires of precise diameters. Blade-style gauges are suitable for measuring flat, parallel surfaces, like valve tappets. Wire feeler gauges are better suited for measuring the gap in spark plugs or other round objects where a flat blade won't provide an accurate measurement. Some applications may call for one or the other, but blade-style sets are more common overall.

How do I choose the right feeler blade thickness for my application?

The required feeler blade thickness is dictated by the manufacturer's specifications for the component you're working on. Consult your vehicle's repair manual or the component's documentation to find the correct clearance value. Feeler gauge sets like the GearWrench 2274 offer a range of blade thicknesses, allowing you to select the closest match. It's best to choose a blade that slides with slight resistance; too loose or too tight indicates an incorrect measurement.

What are the advantages of using offset feeler blades?

Offset feeler blades, like those found in some GearWrench sets, have a bend or angle near the tip. This design allows easier access to hard-to-reach areas, such as valve tappets located deep within the engine compartment. The offset provides clearance around obstructions, making it simpler to insert the blade into the gap and obtain an accurate measurement. This is especially useful in compact engine designs or when working with limited space.

What should I consider when buying a feeler gauge set?

Consider the range of thicknesses included in the set, the material of the blades (steel is common, but brass is used in some applications), and the overall quality of construction. A set with a wide range of thicknesses, like those from Lisle, offers greater versatility. Also, check the accuracy and precision of the blades. A well-made set will provide consistent and reliable measurements, ensuring proper adjustments and preventing potential damage to your engine or other components.

How do I properly use and maintain feeler blades to ensure accuracy?

Keep your feeler blades clean and free from oil, grease, and debris. Before use, wipe the blades with a clean cloth to remove any contaminants that could affect the measurement. Avoid bending or damaging the blades, as this can compromise their accuracy. Store the feeler gauge set in a protective case or pouch to prevent damage and maintain its condition. Regularly inspect the blades for wear or damage and replace them if necessary.

Are metric and inch feeler gauges interchangeable?

No, metric and inch feeler gauges are not directly interchangeable. While there are conversion charts, it's best to use the correct unit of measurement specified in the service manual. Using the wrong type can lead to significant errors in your measurements and adjustments. Feeler gauge sets are available in both metric and inch sizes, so choose the set that matches the specifications for your application to avoid mistakes.

What is a thread pitch gauge and how does it relate to feeler blades?

A thread pitch gauge, like the Hanson English & Metric Pitch Gauge, is used to determine the distance between threads on a screw or bolt. While not technically a feeler blade, it uses a similar principle of matching a profile to a gap. Instead of measuring clearance, it identifies thread size. It's crucial for identifying fasteners and ensuring you're using the correct replacement parts. While feeler gauges measure linear gaps, thread pitch gauges measure the characteristics of screw threads.

CTA Manufacturing Corp. [A314] Feeler Gauge Set 25 Bld Metric Feeler Gauge Set 25 Bld Metric

Name: Feeler Gauge Set 25 Bld Metric
Brand: CTA Manufacturing Corp.
SKU: 166677
Price: 6.03 USD
Availability: InStock
Rating: 3 (1 reviews)

Search

Manufacturers [more]

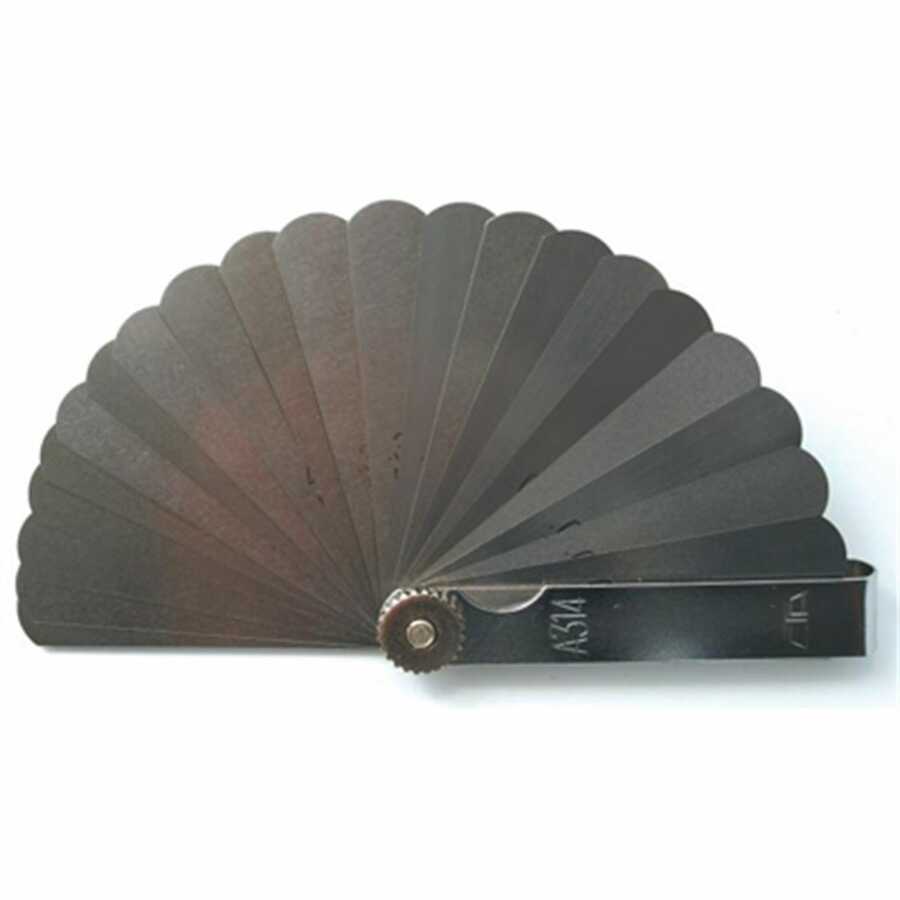

Feeler Gauge Set 25 Bld Metric - CTA Manufacturing Corp.

Part #: A314

larger image

Specifications

Manufacturer: CTA Manufacturing Corp.
Model Number: A314
Product Name: Feeler Gauge Set 25 Bld Metric
Blade Count: 25 blades
Measurement System: Metric
Weight: 0.23 lbs
Dimensions: 1 x 1 x 1 inches
Part Number: A314

Key Features

Comprehensive Metric Range: Includes 25 precision-ground blades covering a wide array of metric sizes for diverse applications.
Accurate Blade Markings: Each blade features clearly etched numerical markings, allowing for quick and precise size identification.
Durable Construction: Engineered from high-quality materials to ensure resistance to bending and wear, providing consistent accuracy over time.
Compact and Portable: Its lightweight and small form factor make it easy to store in a toolbox or carry for on-site measurements.
Secure Rivet Connection: Blades are securely fastened with a sturdy rivet, allowing for smooth fan-out while keeping the set organized.

Applications

Automotive Maintenance: Essential for setting valve tappet clearances, spark plug gaps, and distributor points in various engine types.
Engine Assembly & Repair: Used to precisely measure and set critical clearances in combustion engines and other mechanical systems.
Industrial Machinery: Ideal for gap and parallelism checks in manufacturing equipment, tooling, and industrial components.
Precision Engineering: Supports tasks requiring fine adjustments and accurate spacing, from electronics to custom fabrication.
DIY and Hobby Projects: Suitable for home mechanics and enthusiasts needing reliable gap measurements for various projects.

Benefits

Ensures Precision: Provides highly accurate metric measurements, critical for optimal performance and preventing mechanical failure.
Boosts Efficiency: The broad selection of clearly marked blades allows technicians to quickly find the correct size, streamlining workflow.
Extends Equipment Life: Accurate clearances reduce friction and wear, leading to improved longevity and reliability of machinery.
Versatile Tool: Caters to a wide range of measurement needs, making it an indispensable tool for professionals and hobbyists alike.
Reliable Performance: Built for durability, this feeler gauge set offers consistent, repeatable results even with frequent use.

Only 4 left in stock - order soon

Price: $6.05

Other products
CTA Manufacturing Corp. Homepage
Model: 166677
Shipping Weight: 0.23lbs
Manufacturers Part #: A314
Manufactured by: CTA Manufacturing Corp.
Also Known As: CTAA314, CTA-A314, CTAA314
