What is a dial indicator used for in automotive work?

Dial indicators are precision measuring instruments used to accurately determine small linear distances and variations. In automotive applications, they are essential for tasks like measuring brake rotor runout, checking valve train component wear, diagnosing drivetrain backlash, and ensuring precise alignment during engine building. They provide a much more accurate reading than can be achieved with the naked eye or standard measuring tools. For example, the Central Tools Gage Disc Rotor/Ball Joint Set uses a dial indicator to precisely measure disc rotor run-out.

What are the key features to consider when choosing a dial indicator?

Several factors influence dial indicator selection. Range dictates the maximum distance the indicator can measure. Graduations determine the level of precision, with finer graduations (e.g., 0.001") offering greater accuracy. The type of back (e.g., lug back, magnetic base) determines how the indicator is mounted. Also, consider the reading style (continuous or balanced) based on your preference. For instance, the Central Tools Sleeve Height & Counterbore Gage includes a dial indicator with a 1.00" range and 0.001" graduations, making it suitable for precise engine measurements.

What is the difference between a continuous and a balanced dial indicator?

The primary difference lies in how the dial is numbered. A continuous dial indicator features a single set of numbers that increase sequentially around the dial face. A balanced dial indicator has numbers that increase from zero in both directions. Balanced dial indicators are particularly useful when measuring deviations above and below a specific reference point. Many dial indicators, like the Central Tools Dial Indicator 0-1 .001 Graduation, are available in both continuous and balanced reading styles to suit different applications.

What is runout, and how do I measure it with a dial indicator?

Runout refers to the amount of wobble or deviation a rotating part exhibits. To measure runout, securely mount the dial indicator so the contact point touches the rotating surface. As the part rotates, observe the total indicator reading (TIR), which is the difference between the maximum and minimum readings on the dial. This measurement indicates the total runout. Make sure the indicator's contact point is perpendicular to the surface being measured for accurate results. The Central Tools Gage Disc Rotor/Ball Joint Set is specifically designed for measuring runout on brake rotors and ball joints.

What are common types of dial indicator contact points, and when should I use them?

Dial indicator contact points come in various shapes and materials to suit different applications. Standard ball-shaped points are versatile for general use. Needle points are ideal for reaching into tight spaces or measuring narrow grooves. Disc-shaped points are useful for measuring flat surfaces or checking alignment. Extended contact points, like the Central Tools Extension Contact 1.000 Shaft, provide additional reach for special applications. Always select a contact point that provides stable and accurate contact with the surface being measured.

How do I choose the correct mounting base for my dial indicator?

The mounting base secures the dial indicator in position, so stability is key. Magnetic bases offer strong adhesion to ferrous metal surfaces, making them convenient for many automotive tasks. Lug backs provide a fixed mounting point using screws or bolts. Some indicators have a shank for mounting in a collet or holder. Consider the available mounting surfaces and the required stability when selecting a base. Ensure the base allows for fine adjustments to properly position the indicator.

What does 'resolution' mean in the context of dial indicators?

In dial indicators, resolution refers to the smallest increment of measurement that the indicator can display, typically expressed in thousandths of an inch (0.001") or millimeters. A higher resolution indicator provides more precise readings. For tasks requiring very fine measurements, such as checking engine clearances or measuring minute variations in surface flatness, an indicator with a higher resolution is essential. Consider the required level of accuracy for your application when selecting a dial indicator's resolution.

Search

Manufacturers [more]

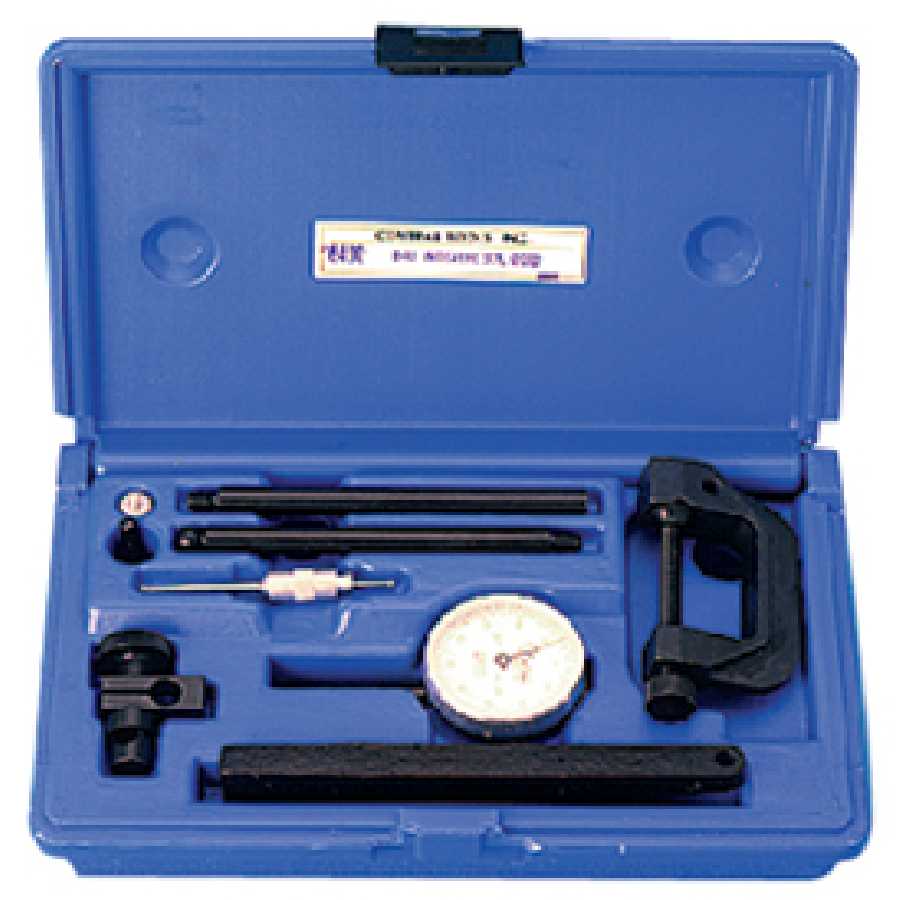

Central Tools | 6400 | Dial Indicator Set .200 Inch Range

Name: Dial Indicator Set .200 Inch Range
Brand: Central Tools
SKU: 76139
Price: 268.06 USD
Availability: InStock
Rating: 3 (1 reviews)

larger image

Specifications

The Central Tools Model 6400 Dial Indicator Set offers precise measurements within a .200 inch range. This professional-grade measuring instrument is designed for accuracy and durability.

Manufacturer: Central Tools
Model Number: 6400
Product Type: Dial Indicator Set
Measurement Range: .200 inches
Weight: 2 lbs
Dimensions: 9.6 x 5.9 x 3.4 inches

Key Features

This Dial Indicator Set provides essential tools for detailed mechanical inspections and adjustments.

Precise Dial Movement: Ensures accurate readings for critical measurements.
Clear, High-Contrast Dial Face: Facilitates easy and quick interpretation of results, minimizing reading errors.
Robust Construction: Built to withstand demanding workshop environments, ensuring long-term reliability.
Versatile Design: Compatible with various fixtures and stands for diverse application needs.
Optimal .200 Inch Range: Specifically suited for fine adjustments and detailed inspections where small displacements are critical.

Applications

The Central Tools Model 6400 Dial Indicator Set is an indispensable tool across numerous professional and technical fields.

Machining and Manufacturing: Used for verifying part dimensions, flatness, and parallelism during production.
Quality Control and Inspection: Essential for ensuring components meet precise specifications and for identifying deviations.
Engine Building and Automotive Repair: Facilitates accurate measurement of valve lift, crankshaft end play, and other critical engine tolerances.
Tool and Die Making: Supports the creation and maintenance of molds and dies with required precision.
Setup and Alignment: Employed to align machinery, fixtures, and workpieces for optimal operational accuracy.

Benefits

Utilizing the Central Tools Model 6400 Dial Indicator Set delivers tangible advantages by enhancing precision and operational efficiency.

Ensures Dimensional Accuracy: Provides reliable and repeatable measurements, significantly reducing errors in critical applications.
Streamlines Quality Assurance: Allows for quick and effective inspection of parts, maintaining high standards and reducing rework.
Boosts Operational Efficiency: Facilitates precise machine setups and alignments, leading to improved performance and reduced downtime.
Extends Equipment Lifespan: Aids in preventing wear and tear on machinery by ensuring components are correctly aligned and within tolerance.
Enhances User Confidence: Offers clear, consistent feedback, allowing technicians to make informed adjustments with certainty.

Other products
Central Tools Homepage
Model: 76139
Shipping Weight: 2lbs
Manufacturers Part #: 6400
Manufactured by: Central Tools
Also Known As: CE6400, CEN6400, CEN-6400
