What is a dial indicator used for in automotive work?

Dial indicators are precision measuring instruments used to accurately determine small linear distances and variations. In automotive applications, they are essential for tasks like measuring brake rotor runout, checking valve train component wear, diagnosing drivetrain backlash, and ensuring precise alignment during engine building. They provide a much more accurate reading than can be achieved with the naked eye or standard measuring tools. For example, the Central Tools Gage Disc Rotor/Ball Joint Set uses a dial indicator to precisely measure disc rotor run-out.

What are the key features to consider when choosing a dial indicator?

Several factors influence dial indicator selection. Range dictates the maximum distance the indicator can measure. Graduations determine the level of precision, with finer graduations (e.g., 0.001") offering greater accuracy. The type of back (e.g., lug back, magnetic base) determines how the indicator is mounted. Also, consider the reading style (continuous or balanced) based on your preference. For instance, the Central Tools Sleeve Height & Counterbore Gage includes a dial indicator with a 1.00" range and 0.001" graduations, making it suitable for precise engine measurements.

What is the difference between a continuous and a balanced dial indicator?

The primary difference lies in how the dial is numbered. A continuous dial indicator features a single set of numbers that increase sequentially around the dial face. A balanced dial indicator has numbers that increase from zero in both directions. Balanced dial indicators are particularly useful when measuring deviations above and below a specific reference point. Many dial indicators, like the Central Tools Dial Indicator 0-1 .001 Graduation, are available in both continuous and balanced reading styles to suit different applications.

What is runout, and how do I measure it with a dial indicator?

Runout refers to the amount of wobble or deviation a rotating part exhibits. To measure runout, securely mount the dial indicator so the contact point touches the rotating surface. As the part rotates, observe the total indicator reading (TIR), which is the difference between the maximum and minimum readings on the dial. This measurement indicates the total runout. Make sure the indicator's contact point is perpendicular to the surface being measured for accurate results. The Central Tools Gage Disc Rotor/Ball Joint Set is specifically designed for measuring runout on brake rotors and ball joints.

What are common types of dial indicator contact points, and when should I use them?

Dial indicator contact points come in various shapes and materials to suit different applications. Standard ball-shaped points are versatile for general use. Needle points are ideal for reaching into tight spaces or measuring narrow grooves. Disc-shaped points are useful for measuring flat surfaces or checking alignment. Extended contact points, like the Central Tools Extension Contact 1.000 Shaft, provide additional reach for special applications. Always select a contact point that provides stable and accurate contact with the surface being measured.

How do I choose the correct mounting base for my dial indicator?

The mounting base secures the dial indicator in position, so stability is key. Magnetic bases offer strong adhesion to ferrous metal surfaces, making them convenient for many automotive tasks. Lug backs provide a fixed mounting point using screws or bolts. Some indicators have a shank for mounting in a collet or holder. Consider the available mounting surfaces and the required stability when selecting a base. Ensure the base allows for fine adjustments to properly position the indicator.

What does 'resolution' mean in the context of dial indicators?

In dial indicators, resolution refers to the smallest increment of measurement that the indicator can display, typically expressed in thousandths of an inch (0.001") or millimeters. A higher resolution indicator provides more precise readings. For tasks requiring very fine measurements, such as checking engine clearances or measuring minute variations in surface flatness, an indicator with a higher resolution is essential. Consider the required level of accuracy for your application when selecting a dial indicator's resolution.

Search

Manufacturers [more]

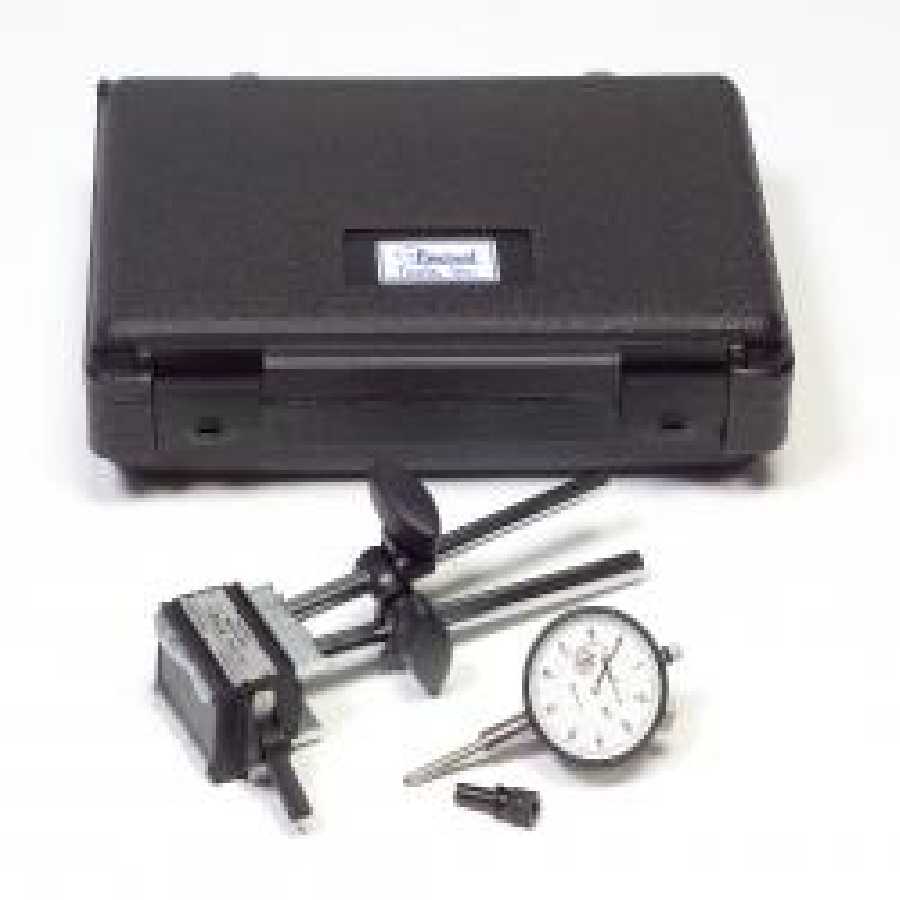

Central Tools | 6419 | Dial Indicator Set 1.00 In Range

Name: Dial Indicator Set 1.00 In Range
Brand: Central Tools
SKU: 76149
Price: 294.67 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

larger image

Specifications

Manufacturer: Central Tools
Model Number: {manufacturers_part_number}
Product Name: Dial Indicator Set 1.00 In Range
Range: 1.00 inch
Weight: 3.9 lbs
Dimensions: 12.3 x 9 x 3.3 inches

Key Features

Precision Dial Indicator: Provides accurate and repeatable measurements for critical applications.
Comprehensive Set: Includes a robust dial indicator and essential accessories for diverse measurement tasks.
Durable Construction: Engineered for longevity and reliability in demanding workshop environments.
Adjustable Bezel: Allows for easy zeroing to establish reference points quickly.
Shock-Resistant Movement: Protects internal components from impacts, maintaining accuracy over time.
Protective Storage Case: Keeps all components organized and secured during storage and transport.

Applications

Machining Operations: Ideal for checking runout, concentricity, and parallelism on machined parts.
Automotive Diagnostics: Used to measure brake rotor runout, camshaft lift, and other engine component tolerances.
Quality Control: Facilitates precise dimensional inspection to ensure product specifications are met.
Tool and Die Making: Aids in setting up jigs, fixtures, and machinery with high accuracy.
General Workshop Measurement: Essential for verifying dimensions, flatness, and depth in various mechanical settings.

Benefits

Enhanced Accuracy: Delivers precise measurements crucial for maintaining tight tolerances and reducing errors.
Increased Versatility: Supports a wide array of measurement tasks with a complete set of tools and accessories.
Improved Efficiency: Allows for quick and reliable setup, speeding up inspection and alignment processes.
Reduced Downtime: Built for durability, offering consistent performance and minimizing the need for frequent replacements.
Reliable Performance: Provides consistent and trustworthy readings, empowering users to make informed adjustments and decisions.

Other products
Central Tools Homepage
Model: 76149
Shipping Weight: 3.9lbs
Manufacturers Part #: 6419
Manufactured by: Central Tools
Also Known As: CE6419, CEN6419, CEN-6419
