What is a dial indicator used for in automotive work?

Dial indicators are precision measuring instruments used to accurately determine small linear distances and variations. In automotive applications, they are essential for tasks like measuring brake rotor runout, checking valve train component wear, diagnosing drivetrain backlash, and ensuring precise alignment during engine building. They provide a much more accurate reading than can be achieved with the naked eye or standard measuring tools. For example, the Central Tools Gage Disc Rotor/Ball Joint Set uses a dial indicator to precisely measure disc rotor run-out.

What are the key features to consider when choosing a dial indicator?

Several factors influence dial indicator selection. Range dictates the maximum distance the indicator can measure. Graduations determine the level of precision, with finer graduations (e.g., 0.001") offering greater accuracy. The type of back (e.g., lug back, magnetic base) determines how the indicator is mounted. Also, consider the reading style (continuous or balanced) based on your preference. For instance, the Central Tools Sleeve Height & Counterbore Gage includes a dial indicator with a 1.00" range and 0.001" graduations, making it suitable for precise engine measurements.

What is the difference between a continuous and a balanced dial indicator?

The primary difference lies in how the dial is numbered. A continuous dial indicator features a single set of numbers that increase sequentially around the dial face. A balanced dial indicator has numbers that increase from zero in both directions. Balanced dial indicators are particularly useful when measuring deviations above and below a specific reference point. Many dial indicators, like the Central Tools Dial Indicator 0-1 .001 Graduation, are available in both continuous and balanced reading styles to suit different applications.

What is runout, and how do I measure it with a dial indicator?

Runout refers to the amount of wobble or deviation a rotating part exhibits. To measure runout, securely mount the dial indicator so the contact point touches the rotating surface. As the part rotates, observe the total indicator reading (TIR), which is the difference between the maximum and minimum readings on the dial. This measurement indicates the total runout. Make sure the indicator's contact point is perpendicular to the surface being measured for accurate results. The Central Tools Gage Disc Rotor/Ball Joint Set is specifically designed for measuring runout on brake rotors and ball joints.

What are common types of dial indicator contact points, and when should I use them?

Dial indicator contact points come in various shapes and materials to suit different applications. Standard ball-shaped points are versatile for general use. Needle points are ideal for reaching into tight spaces or measuring narrow grooves. Disc-shaped points are useful for measuring flat surfaces or checking alignment. Extended contact points, like the Central Tools Extension Contact 1.000 Shaft, provide additional reach for special applications. Always select a contact point that provides stable and accurate contact with the surface being measured.

How do I choose the correct mounting base for my dial indicator?

The mounting base secures the dial indicator in position, so stability is key. Magnetic bases offer strong adhesion to ferrous metal surfaces, making them convenient for many automotive tasks. Lug backs provide a fixed mounting point using screws or bolts. Some indicators have a shank for mounting in a collet or holder. Consider the available mounting surfaces and the required stability when selecting a base. Ensure the base allows for fine adjustments to properly position the indicator.

What does 'resolution' mean in the context of dial indicators?

In dial indicators, resolution refers to the smallest increment of measurement that the indicator can display, typically expressed in thousandths of an inch (0.001") or millimeters. A higher resolution indicator provides more precise readings. For tasks requiring very fine measurements, such as checking engine clearances or measuring minute variations in surface flatness, an indicator with a higher resolution is essential. Consider the required level of accuracy for your application when selecting a dial indicator's resolution.

Search

Manufacturers [more]

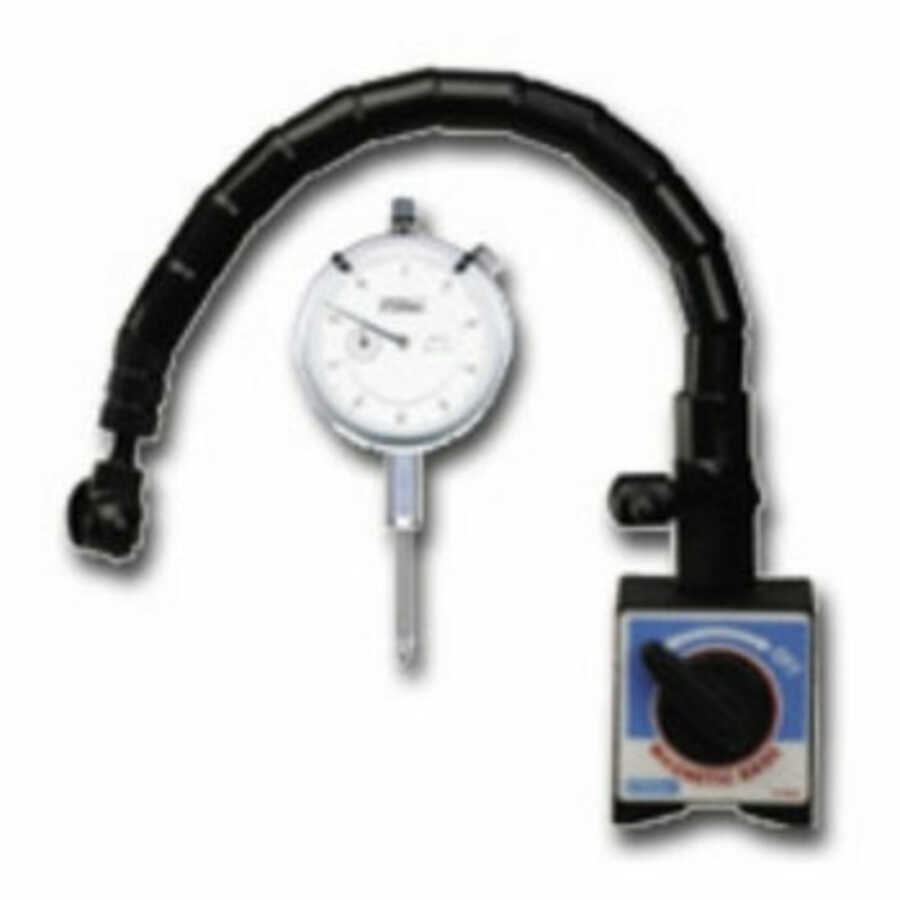

OTC Tools and Equipment | 308171 | Dial Indicator Gauge

Name: Dial Indicator Gauge
Brand: OTC Tools and Equipment
SKU: 129785
Price: 360.35 USD
Availability: Discontinued
Rating: 3 (1 reviews)

larger image

Specifications

Manufacturer: OTC Tools and Equipment
Model Number: 308171
Product Type: Dial Indicator Gauge
Weight: 1 lb
Dimensions: Compact design

Key Features

Provides precise measurement capabilities for critical applications.
Features a clear, easy-to-read dial for accurate data interpretation.
Constructed from durable materials for longevity in workshop environments.
Offers reliable performance for consistent and repeatable results.

Applications

Measures runout on brake rotors, flywheels, and other rotating components.
Checks endplay in crankshafts, camshafts, and transmission shafts.
Assesses valve lift, piston deck height, and other engine specifications.
Used for general precision mechanical inspections and alignments.
Applicable in automotive repair, manufacturing, and quality control settings.

Benefits

Ensures accurate component alignment, reducing wear and extending equipment life.
Facilitates precise adjustments, optimizing mechanical function and performance.
Provides dependable readings, enhancing diagnostic confidence and decision-making.
Simplifies complex measurement tasks, improving efficiency for technicians.
Supports a wide range of automotive and industrial applications, offering versatility.

Other products
OTC Tools and Equipment Homepage
Model: 129785
Shipping Weight: 1lbs
Manufacturers Part #: 308171
Manufactured by: OTC Tools and Equipment
Also Known As: OT308171, OTC-308171, OTC308171

This product has been discontinued

Earn 1% Back On Every Purchase (Rewards Program)

We are Here To Help (Contact Us)

2 people have this item in their cart!

This product was added to our catalog on Wednesday 28 December, 2011.
