750 x 150 ml Two Component Cordless Epoxy Adhesive Dispenser

Replaces part number 7075-51.

Technical Specifications:

  • Capacity: 30oz
  • Ratio: 5:1 (750x150ml)
  • Weight: 9.5 lbs (4.3 kg)

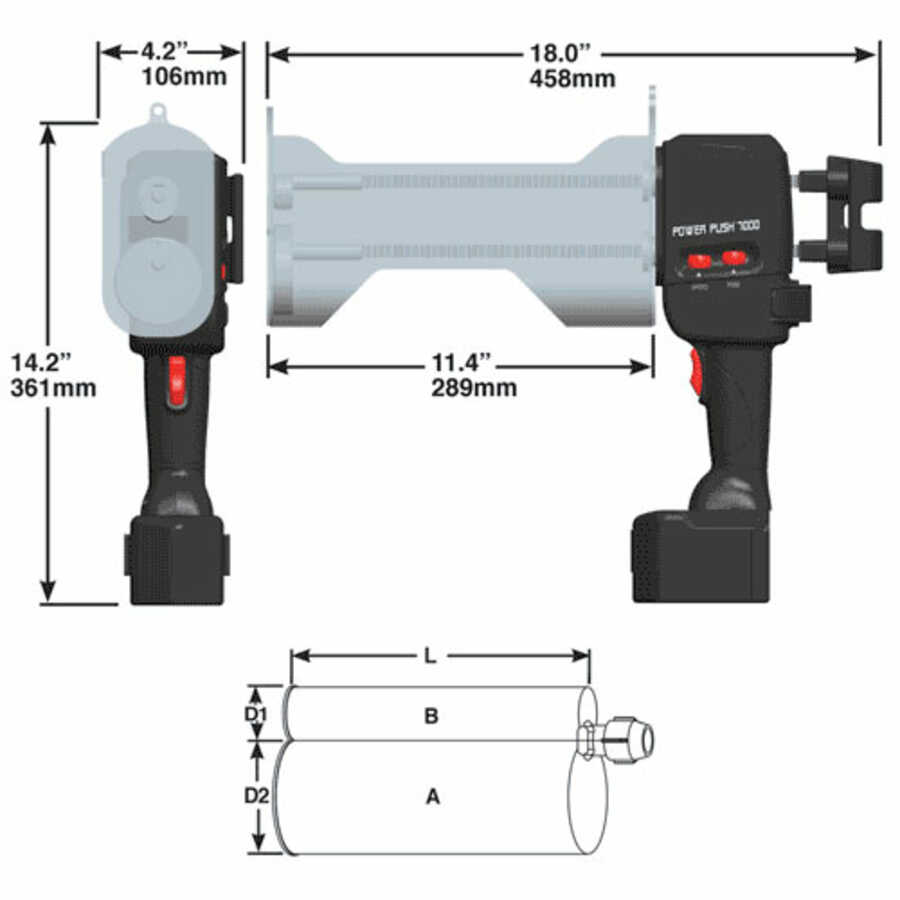

  • Dimensions: 18.0 x 4.2 x 14.2" (458 x 106 x 361mm)
  • Thrust: Factory set up to 1,800 lbs (8kN)
  • Speed: Variable up to 6"/min (2.5mm/sec)
  • Battery: 14.4V NiMH
  • Charger: One hour quick charge 110V to 240V
  • Battery Capacity: Up to 30 cartridge sets (material dependent) NiMH
  • Dosing Limits: Variable from 3 to 32 seconds
  • Top load cartridge holder

No Hoses, No Cords, No Hassles

    Specifically designed for use with 600 x 300 ml (2:1) dual component cartridge sets for dispensing adhesives and sealants. Meritool has designed and engineered the PowerPush(TM) 7000 Series, a unique patented battery operated dual component dispenser, which mixes and dispenses efficiently and accurately.

Features and Benefits:

  • Cordless convenience
  • Dual direct drive rack system assures precise mixture control
  • Direct planetary gear drive system for reliable operation
  • High force capability assures low temperature performance
  • Patented design force and speed controlled circuitry to maximize output
  • Anti-drip feature eliminates messy run-on
  • Dosing on or off control: ensures straight bead application or repeatable shot size (specify at time of order)
  • Locking rack release clutch for easy rack retraction
  • Includes 14V NiMH battery and charger

DOSING Control Option: This is a Factory Setting and needs to be specified when the order is placed. (Please read below for more information)Dosing on

      - allows the user to set the dosing quantity between 3 and 32 seconds (to meet dose requirements/amount for specific application) at which time the tool will automatically stop itself, the racks will reverse slightly. When the tool has fully stopped automatic reverse action - the trigger will need to be pressed again to restart application.



Dosing off

    - allows for straight bead application the tool will stop when the trigger is released or will automatically stop when the cartridge is fully dispensed.

Meritool PowerPush 7075-V2-51-14V-US Two Component Cordless Epoxy Adhesive Dispenser

  • Model: 149125
  • Shipping Weight: 10lbs
  • Manufacturers Part #: 7075-V2-51-14V-US
  • Manufactured by: Powerpush by Meritool
  • Also Known As: 7075-V2-51-14V-US

$498.91

This product has been discontinued

This product was added to our catalog on Friday 19 July, 2013.
