Camshaft Retaining Tool

Camshaft Retaining Tool
For GM (General Motors) vehicles
    The camshafts must be held at TDC to properly set timing, especially once the inner timing chain is set. Both camshafts on each head must be held to time either head in turn. The camshafts on the left head must be held while timing the camshafts on the right head.

    During this procedure, the left head camshafts are under spring pressure, and can cause the cams to turn, leading to mis-timing the engine. On the left head, EN-48383-1 is installed to hold the cams, and timing is set per published service information. When the engine is at the second timing position to set the right head chain, EN-48383-2 is installed to hold the left head cams, and EN-48383-3 is installed on the right head cams.

    Both EN-48383-1 and EN-48383-2 are slotted to allow them to be installed over the SIDI drive portion of the camshaft in future applications. Failure to use EN-48383 can result in incorrect timing, leading to engine damage.
Limited supply; please email service@toolsource.com for availability.

Kent-Moore EN48383 Camshaft Retaining Tool
  • Shipping Weight: 1lbs
  • Manufactured by: Kent-Moore
  • Toolsource #: 127682
  • Manufacturers Part #: EN48383
  • Also Known As: KMEN48383

Only 2 left in stock - order soon

$104.25

Frequently bought together:


Related Products

  • Low Speed Air Tire Buffer Kit
    Low Speed Air Tire Buffer Kit
    Manufacturers Part #: 873K
    Your Price: $98.32
    Features Low speed tire buffer Adjustable speed control Qucik change slip chuck Lock off throttle to prevent accidental start up Rear exhaust Benefits Most popular tire buffer in the market Fast and easy change of buffing wheel Ideal for patchwork, roughing areas for recapping and cleaning tyre moldings Chicago Pneumatic 873K Low Speed Air Tire Buffer Kit CP873K...
  • Replacement Abrasive Sanding Pads (10 Pk)
    Replacement Abrasive Sanding Pads (10 Pk)
    Manufacturers Part #: 552948
    Your Price: $30.28
    10 pack of replacement sanding pads for No. 8342 Hub Resurfacing kit OTC 552948 Replacement Abrasive Sanding Pads (10 Pk) OT552948...
  • Oil Drain Plug Pro

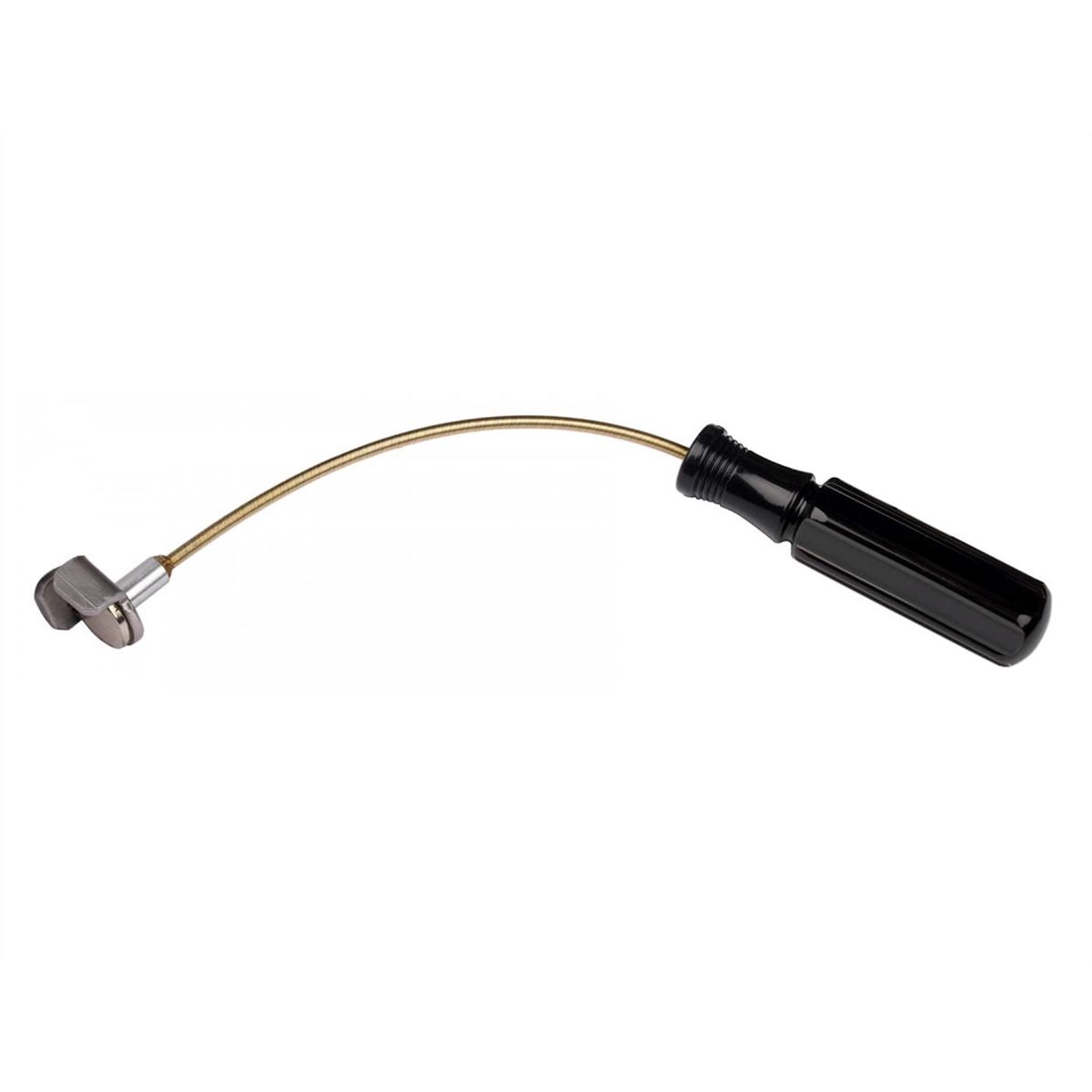

    Oil Drain Plug Pro
