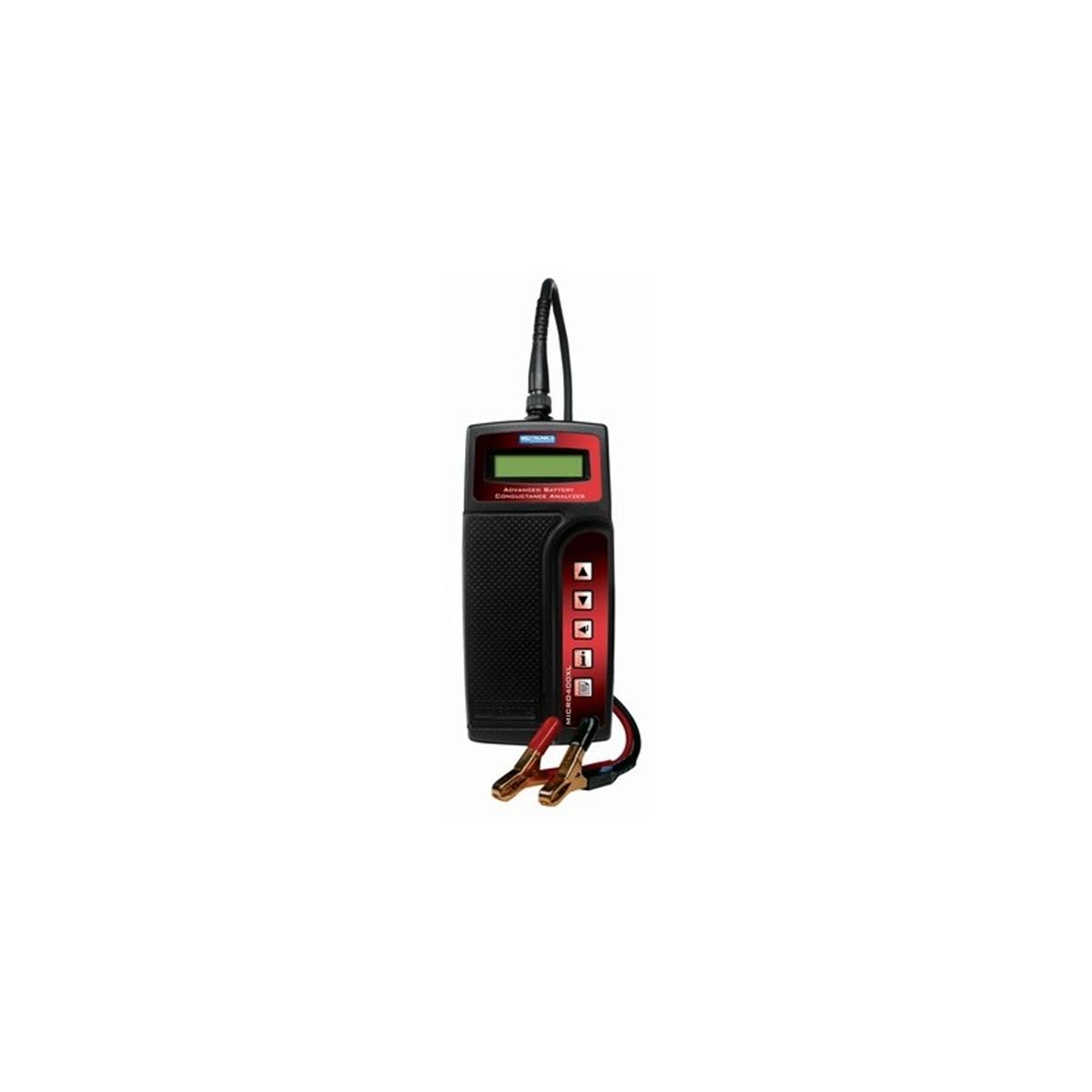

Advanced Battery Conductance Analyzer - Midtronics

Part #: MCR-400XL

Advanced Battery Conductance Analyzer

The New Standard of XLence for Battery Diagnostics

Building on the strength of Midtronics patented technology and field experience, the Micro 400XL offers advanced technology, including:
  • AGM Testing Algorithm - test capabilities to match the changing battery landscape.
  • Improved battery algorithms - more decisive, more accurate than ever before.
  • Enhanced in-vehicle test algorithms based on OEM requirements and vehicle changes, including jumper-post testing for vehicles with remote batteries.
Features:
  • Graphical back-lit display that improves user-interface.
  • Enhanced graphical printout.
  • New printer provides faster and better output for your customer or records.
  • QC mode for simple quality control testing and record keeping on battery inventory - stores and prints up to 100 tests.
  • Reverse connection detection for foolproof operation.
  • ime-to-charge calculator estimates battery charge duration.
  • Date and time stamp improves record keeping and helps enforce preventative maintenance testing.
  • Multiple language capability.
  • Available IR Module for computer download of test data/custom reporting .


    • Specifications:
    • Includes: Micro400XL, Short XL Cable, Carrying Case and Stud Adapters
    • Warranty: Midtronics standard one-year warranty
    • Applications: Vehicle batteries including auto/light truck
    • Operating Range: 100-1700 CCA
      100-1700 CA
      100-1700 MCA (Marine)
      JIS--Japanese standard 100-1700 CCA AGM
      100-1000 DIN
    • Power Requirements: Uses power of battery under test or 9 volt battery (included)
    • Voltage Range: 0.9-30 Volts, =/- .05 VDC
    • Display: Back-lit, graphical display
    • Operating Temperature: 0 to 120 degrees F / -18 to 50 degrees C
    • Interface Options: Removeable cable/clamp assembly
    • Housing Material: Acid resistant ABS plastic
    • Product Dimensions: 9" X 4" X 2.5" (230 mm X 102 mm X 65 mm)
    • Product Weight: 1 lb./ 427 grams
    Additional Literature
    Product Manual
