Battery Diagnostics & Charging > Battery Testers > Battery Tester w/ Charging System Test & Voltmet

Battery Tester w/ Charging System Test & Voltmeter

Battery Tester w/ Charging System Test & Voltmeter
Features:
  • Proven conductance technology and test algorithms required for warranty testing
  • Accurate battery test decision in seconds
  • No user interpretation of meter required
  • Tests discharged batteries - no charge required before testing
  • Voltmeter mode
  • Displays available CCA's following each test
  • Bad cell detection
  • High/low voltage capture
  • Improved starter / charger system testing
Specifications:
  • Applications - Individual 12-volt automotive starting batteries - 12 volt charging systems
  • Rating System:
      CCA = 200 - 850
      DIN = 120 - 550
      EN = 200 - 900
      IEC = 120 - 550
      SAE = 200 - 900
  • Operating Temperature - 0 F to 120 F (-18 C to 50 C)
  • Voltage Range - 8 - 17 Volt DC
  • Interface Operations - Dual conductor Kelvin clamps
  • Display - 3 LEDs (green, yellow, red), 3 position LED voltage screen
  • Housing Material - Acid resistant ABS plastic
  • Product Dimensions - 7.5" x 3.5" x 2.0" (230 mm X 102 mm X 65 mm)
  • Product Weight - 16 oz (427 g)
  • Power Requirements - Uses power of the battery under test (minimum 8 volts required)
  • Warranty - Midtronics standard one-year warranty
Midtronics PBT-200 Advanced Battery Conductance/Electrical System Tester
  • Shipping Weight: 1.2lbs
  • Manufactured by: Midtronics
  • Toolsource #: 90429
  • Manufacturers Part #: PBT-200
  • Also Known As: MDPBT200, MDT-PBT200, MIDPBT200

We have 19 in stock

$285.22

Related Products


Customers Also Purchased:

Customers Also Shopped For:

  • Rocker-Doctor Universal Tie Down & Pull Clamp
    Rocker-Doctor Universal Tie Down & Pull Clamp
    Manufacturers Part #: TH14000
    Your Price: $87.55
    The clamp is made of U.S. Chrome Moly Tool Steel & has a four ton capacity.It will effectively straighten door frames, quarter panels, hoods, fenders, rocker panels, rear decks & sub frames.A new low cost uni-body tie down & pull clamp that will pull sheet metal panels better than any other method, where no access to the back is available & straight line pulling is required.It is a method approved for pulling the new hi-carbon steel box members ...
  • ADROIT-PRO Digital Battery and System Tester
    ADROIT-PRO Digital Battery and System Tester
    Manufacturers Part #: BA44
    Your Price: $225.28Includes Free Shipping
    The ADROIT-PRO (BA44) Digital Battery and System Tester for 6 and 12 Volt Batteries is ideal for busy service garages, vehicle dealerships, fleet service operations and quick lube locations. It provides comprehensive service for 6 and 12 Volt batteries and 12 Volt systems. It provides quick assessment and intuitive operation in an ergonomic design, with features that make testing easy, fast and effective. 6 and 12 Volt Battery Testing Operating ...
  • OTC 1807 Mobile Floor Crane - 1000 Lb

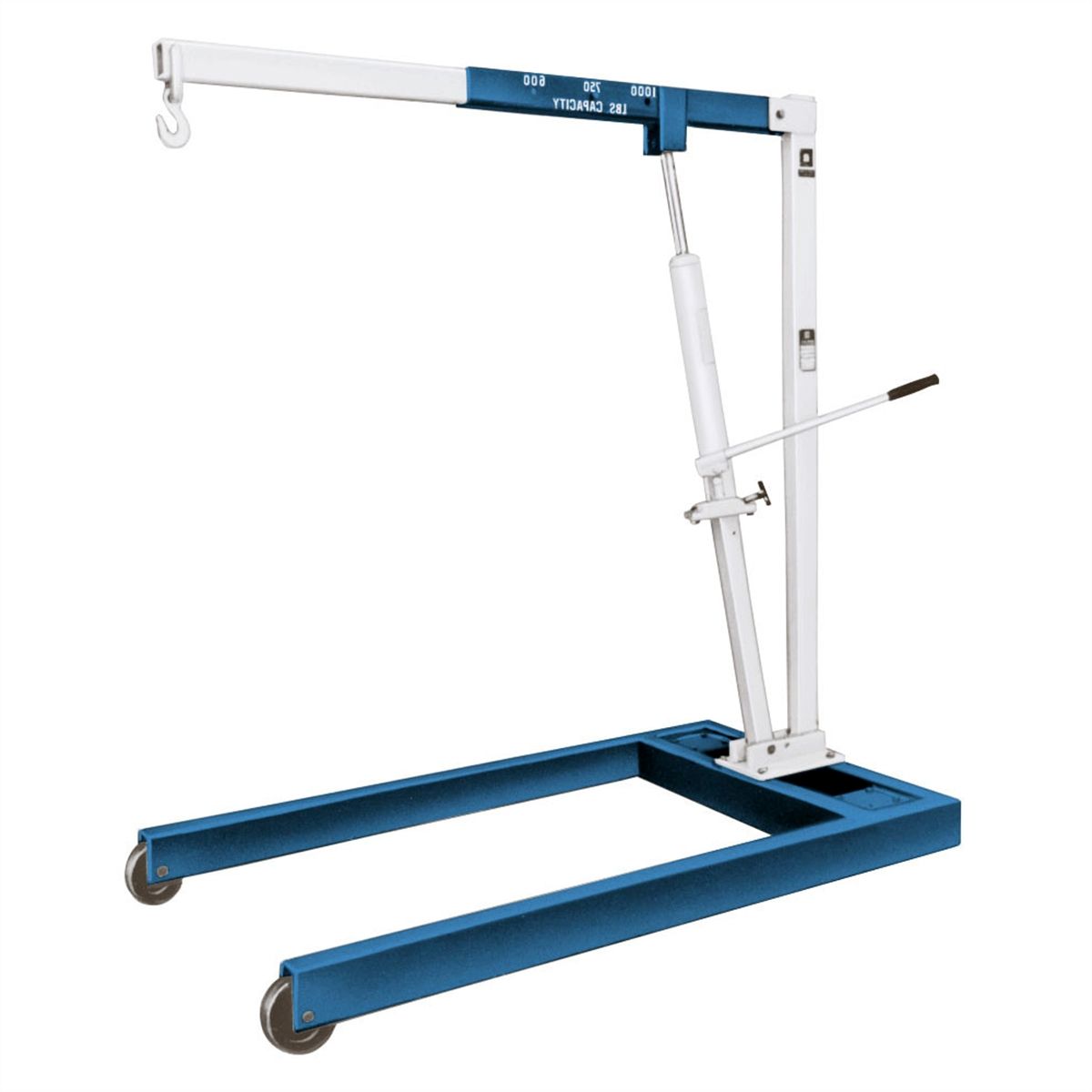

    OTC 1807 Mobile Floor Crane - 1000 Lb
    Manufacturers Part #: 1807
    Your Price: $1,981.66
    OTC 1807 1000 Lb Mobile Floor Crane This 1,000 lb. capacity crane`s innovative "auto-lock" positioning system allows the operator to raise the boom by hand into any position without having to use the hydraulic pump.Boom locks into place automatically, hydraulically.Hydraulic jacking power provides fast engine removal & replacement.Telescopic boom extension reaches even the engines in vehicles w/ protruding energy absorbing bumpers without use of...
  • Digital Battery /Charging System Tester PBT100 w/ Voltmeter (MID
    Digital Battery /Charging System Tester PBT100 w/ Voltmeter (MID
    Manufacturers Part #: PBT-100
    Your Price: $149.82Includes Free Shipping
    The essential battery/charging system tester for every technician! Using Midtronics` PBT-100 battery/charging system tester, technicians now have a version of the same tester required for use in OEM garages around the world. The PBT-100 makes the leading technology affordable, so everyone can experience the advantages of conductance testing: a safe, fast, simple and portable system that improves technician`s productivity. Features: Accurately te...
  • 100 Amp Battery Load Tester
    100 Amp Battery Load Tester
    Manufacturers Part #: 3180
    Your Price: $32.05
    Tests batteries on or off the car in just 10 seconds. Convenient, portable size and easy-to-read scales. Features and Benefits: Heavy-duty copper-plated clamps. 100 amp load capacity. 0-16 volt range. Load safety switch prevents arcing. Heavy-duty, chrome-plated, ventilated steel case. Works on both 6V and 12V batteries. Ceramic insulators. Determines state of charge, cranking and charging volts. Determines good/bad status. Extra large ...
  • Solar 6/12 Volt Digital Voltmeter

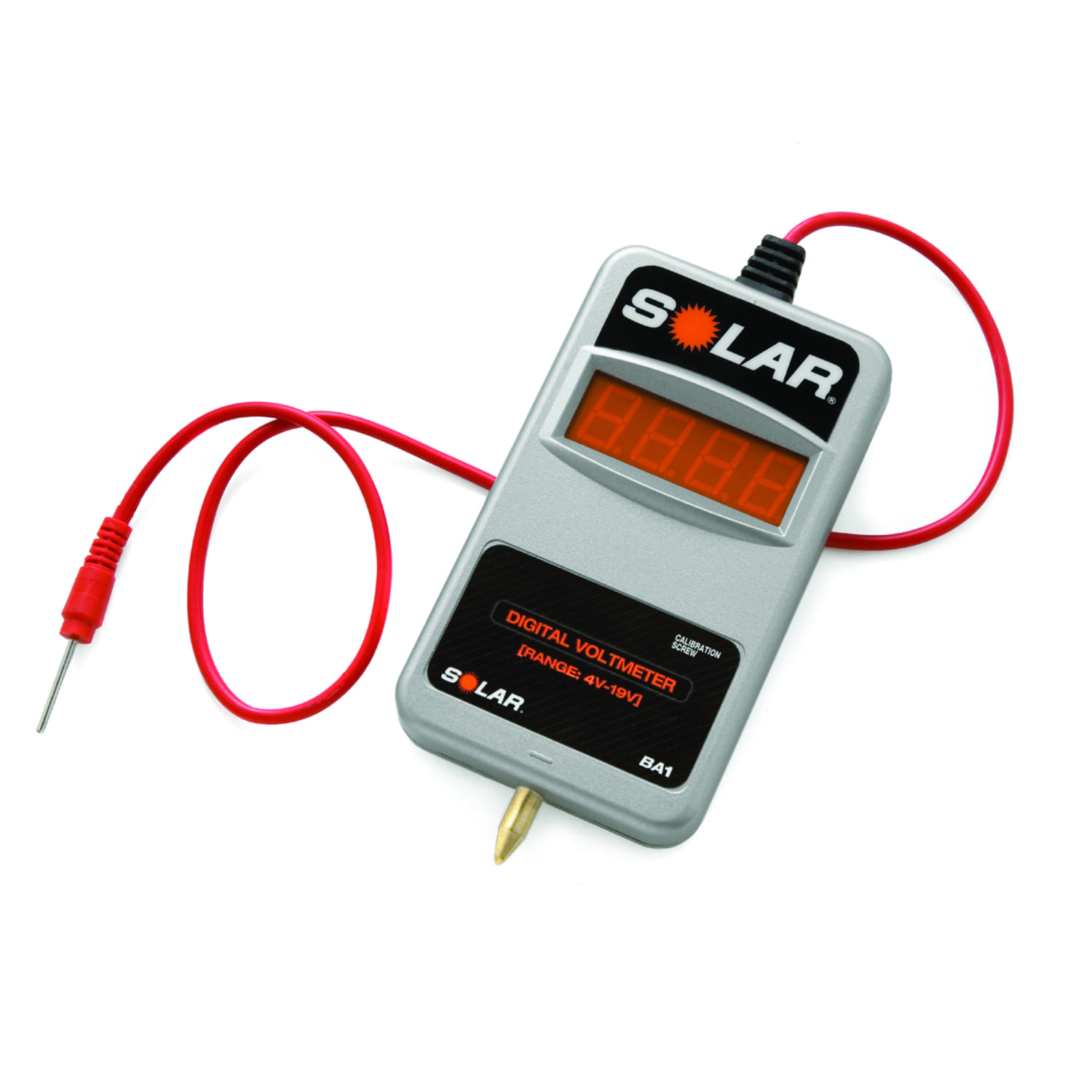

    Solar 6/12 Volt Digital Voltmeter
