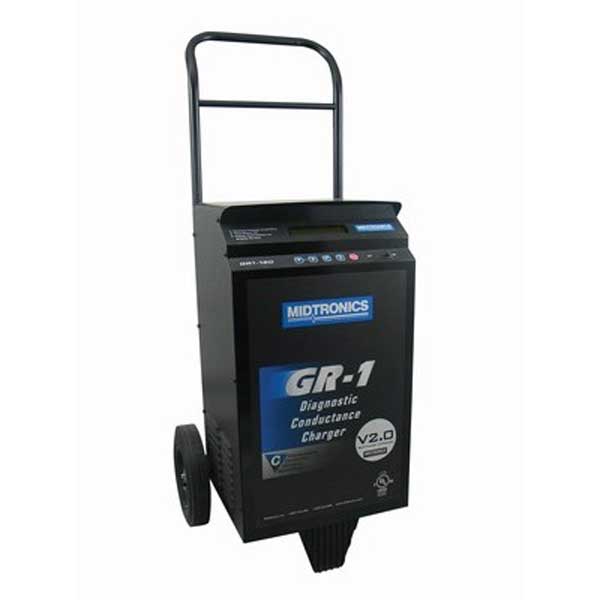

GR-1 Diagnostic Conductance Battery Charger - Midtronics

The GR-1 features Diagnostic Conductance Controlled Charging which allows for solving battery problems in less than an hour, and in many cases, around 30 minutes!

Diagnostics - The GR-1 tests the battery at the beginning, during and after charging, making it the most accurate battery analyzer available.

Conductance - Midtronics patented Conductance Technology has emerged as the industry standard for battery testing. Combined with charging capabilities, GR-1 uses Conductance Controlled Charging (C3) Technology to make battery service safe, fast, and simple.

Charging - Using advanced diagnostic capabilities and Conductance Technology, the GR-1 effectively controls the charging process using the optimal charging voltage and current to quickly charge even discharged batteries.

Total Battery Service: Specially designed for use in a professional service garage, the GR-1 is the ONLY tool that provides total battery service. Just connect to the battery, enter the rating, and press enter. GR-1 does the rest, giving a replace decision for defective or weak batteries, OR charging only discharged batteries.

Conductance Controlled Charging Technology makes battery testing and charging:

SAFE - Advanced diagnostics and ongoing monitoring means you only charge good batteries and minimize charging hazards.

FAST - Charges most batteries in less than an hour while monitoring battery condition, so every battery gets the right amount of charge, every time.

SIMPLE - Advanced user interface makes battery diagnostics and charging simple for anyone to perform the right way.

GR-1 allows for:

• Improved battery service process to save time and money
• Reduced customer wait time
• Improved service productivity
• Improved customer service
• Saved money on tool purchases

Features

• Proven Midtronics menu-driven user interface
• Multiple Diagnostic/Charging Algorithms
• Field Upgradeable
• Service Bay Portability
• Jump-start capability
• Manual Operation Mode

Specifications

Model: GR1-120

Warranty:Midtronics standard one-year warranty

Applications: Professional vehicle service
12 Volt Lead Acid Batteries (Standard starting batteries)
12 Volt AGM/Spiral Batteries
12 Volt Group 31--Truck Batteries

Operating Range:
100-1500 CCA
100-1500 CA
100-1500 MCA (Marine)
JIS (Japanese standard)
European Standards
100-850 A DIN
100-1500 A SAE
100-1000 A IEC
100-1500 A EN

Power Requirements: 120 Volt, 60 HZ

Voltage Range: 0.7-17 Volt

Display: STN LCD 2 line, 16 character display

Housing Material: Rugged steel

Function: Diagnostic Charge, Manual Charge, Jump-Start
