What types of fasteners are 1" drive hex driver sockets typically used for?

1" drive hex driver sockets are designed for large fasteners that require significant torque. Common applications include heavy machinery repair, construction equipment maintenance, and some automotive work, especially on heavy-duty trucks. These sockets are used with impact wrenches or large ratchets to install or remove hex bolts, screws, and plugs where smaller drive sizes would be insufficient. For example, you might use a Grey Pneumatic 1" drive hex driver socket on the axles or suspension components of a large vehicle.

What should I consider when choosing between standard and impact-rated 1" drive hex driver sockets?

The primary difference lies in the material and construction. Impact sockets, like those from Grey Pneumatic, are made from chromoly steel, which is more ductile and can withstand the repeated high-torque impacts from an impact wrench without cracking. Standard sockets are often made from chrome vanadium steel, which is harder but more brittle and prone to shattering under impact. If you'll be using the socket with an impact wrench, always choose an impact-rated socket for safety and longevity. If using with a hand ratchet only, a standard socket may suffice, but impact-rated offers more durability.

What are the benefits of using a 1" drive universal joint with my sockets?

A 1" drive universal joint, such as the models offered by Genius Tools, allows you to apply torque to fasteners at an angle. This is extremely useful in tight engine compartments or when working around obstructions where a straight shot isn't possible. The universal joint provides flexibility, preventing you from needing multiple extensions or specialized tools to reach difficult fasteners. Be sure to use caution and reduce torque when using a universal joint, as the angle can reduce applied force and increase the risk of slippage.

When would I need a 1" drive socket adapter?

A 1" drive socket adapter is helpful when you need to use a 1" drive socket with a different size drive tool, or vice versa. For example, you might use a Sunex Tools 1" female to 3/4" male adapter to use your 3/4" drive impact wrench with a 1" drive socket. These adapters increase the versatility of your existing tool collection, saving you the cost of purchasing duplicate sockets in different drive sizes. Always ensure the adapter is rated for the torque you intend to apply.

How do I choose the correct size 1" drive hex driver socket for my application?

First, accurately measure the size of the hex fastener you're working with. Using the wrong size can damage the fastener or the socket. 1" drive hex driver sockets are available in both SAE and metric sizes, so be sure to select the correct standard for your fastener. If you're unsure, it's best to start with a set of sockets that includes a range of common sizes. For example, Grey Pneumatic offers individual 1" drive hex driver sockets in various metric sizes.

What should I know about using extensions with 1" drive sockets?

Extensions provide added reach when your impact wrench or ratchet cannot directly access the fastener. When using extensions with 1" drive sockets, like the Grey Pneumatic 10-inch extension, ensure the extension is also impact-rated if used with an impact wrench. Using multiple extensions can reduce torque and increase the risk of the socket slipping off the fastener. Always use the shortest extension necessary to reach the fastener securely. Also, make sure the extension is securely attached to the socket and drive tool.

Are there any safety precautions I should take when using 1" drive hex driver sockets?

Yes, always wear appropriate personal protective equipment (PPE), including safety glasses, when using 1" drive hex driver sockets. These tools can generate significant force, and fasteners or socket fragments can become projectiles if something breaks. Ensure the socket is fully seated on the fastener before applying torque. Avoid using worn or damaged sockets, as they are more likely to fail under pressure. Never exceed the torque rating of your impact wrench or ratchet.

How do I maintain my 1" drive hex driver sockets to ensure longevity?

Proper maintenance is crucial for extending the life of your 1" drive hex driver sockets. After each use, clean the sockets with a clean cloth to remove dirt, grease, and debris. Periodically inspect them for any signs of wear, cracks, or damage. Store your sockets in a dry place to prevent rust and corrosion. Applying a light coat of oil to the sockets can also help protect them from moisture. Genius Tools and Grey Pneumatic sockets are known for their durability when properly maintained.

Search

Manufacturers [more]

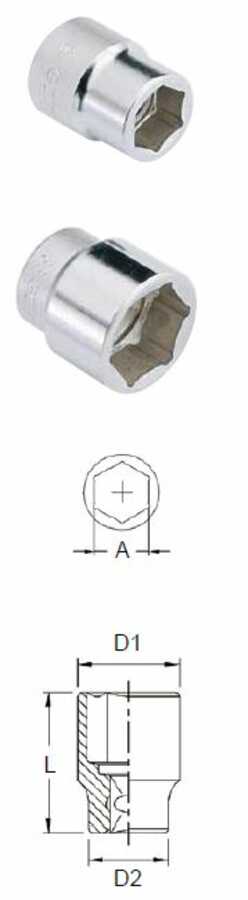

Genius Tools | 887130 | 1" Drive 4-1/16" SAE Hand Socket 6 Point

Name: 1" Drive 4-1/16" SAE Hand Socket 6 Point
Brand: Genius Tools
SKU: 140188
Price: 349.54 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

larger image

Specifications

Manufacturer: Genius Tools
Model Number: {manufacturers_part_number}
Drive Size: 1 inch
Socket Size: 4-1/16 inches
Measurement System: SAE (Society of Automotive Engineers)
Point Configuration: 6-Point
Type: Hand Socket
Material: Professional-grade chrome vanadium steel
Finish: Polished chrome

Key Features

1-Inch Drive Size: Designed for high-leverage ratchets and breaker bars, accommodating significant torque requirements.
4-1/16 Inch SAE Size: Precisely engineered to fit large imperial fasteners, common in heavy-duty applications.
6-Point Design: Provides maximum contact with fastener flats, minimizing slippage and preventing rounding for a secure grip.
Durable Construction: Forged from premium chrome vanadium steel, ensuring exceptional strength, impact resistance, and extended tool life.
Corrosion-Resistant Finish: Polished chrome plating offers superior protection against rust and corrosion, while also making cleanup effortless.
Professional Grade: Engineered for reliability and performance in demanding workshop and industrial environments.

Applications

Heavy Equipment Maintenance: Essential for large bolts and nuts on construction vehicles, agricultural machinery, and industrial equipment.
Truck and Fleet Repair: Ideal for servicing suspension components, axle nuts, and other large fasteners on commercial trucks and trailers.
Industrial Assembly: Suitable for high-torque fastening and unfastening operations in manufacturing plants and various industrial settings.
Marine and Shipbuilding: Addresses the robust, oversized fasteners found in maritime equipment and vessel construction.
Specialized Automotive Work: Used in specific automotive tasks requiring a large SAE socket beyond typical passenger vehicle applications.

Benefits

Prevents Fastener Damage: The 6-point design grips fasteners securely, significantly reducing the risk of rounding off nuts and bolts, even under extreme torque.
Ensures Secure Connections: Achieves precise torque application for critical fastenings, enhancing the safety and operational integrity of machinery and structures.
Withstands Rigorous Use: Crafted from high-grade steel, this socket offers superior durability and a long service life, even with daily heavy-duty applications.
Boosts Efficiency: The accurate fit and robust construction empower technicians to work confidently and quickly on stubborn and large fasteners.
Offers Versatile Utility: An indispensable tool for professionals across various industries that frequently encounter large SAE hardware.

Other products
Genius Tools Homepage
Model: 140188
Manufacturers Part #: 887130
Manufactured by: Genius Tools
Also Known As: 887130
