Shop Equipment and Supplies > Vises > 450S Machinists Bench Vise Swivel Base 4 1/2 In

450S Machinists Bench Vise Swivel Base 4 1/2 Inch

450S Machinists Bench Vise Swivel Base 4 1/2 Inch

Swivel Base, 4-1/2" Jaw Width, 7-1/2" Jaw Opening, 4" Throat Depth
Proudly made in the USA, the Machinist round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Machinist round channel vise nut is anchored at the rear. This rear anchored nut provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly. This enclosure keeps debris out and lubrication in for a lifetime of smooth operation. The Machinist vise is equipped with main jaws and a machined anvil work surface. The main jaws are made from high strength steel and are fully replaceable. The Machinist vise is also equipped with a swivel base with dual locking nuts. The open locking design of the Machinist base allows for a full 360 degrees of rotation. To prevent rotation during use both the locking nuts and base have serrated edges that interact positively to assure a non-slip grip when tightened. The main base has four pre-cast holes for mounting the vise to a work surface. Each vise includes a mounting template for quick no guess hole placement for mounting.

  • Hardened steel jaw, replaceable inserts are machine serrated for safe, sure grip under maximum torque.
  • Extra deep throat - this design gives you more working room where it counts.
  • Enclosed design keeps lubrication in and contaminants out for smooth operation.
  • Locking swivel base - 360? rotation is enhanced by serrated swivel base with double lockdowns for non-slip holding and four mounting posts .
  • Large anvil work surface.

Specifications:

  • Model Number: 450S
  • Brand: Wilton
  • Height: 10.6"
  • Width: 8.9"
  • Length: 20"
  • Net Weight: 71.25 pound
  • Gross Weight: 71.25 pound
  • Jaw Depth: 5/8"
  • Jaw Height: 1 1/4 "
  • Jaw Width: 4 1/2 "
  • Opening Capacity Max: 7 1/2"
  • Serrated Jaw Inserts #: 2905000
  • Throat Depth: 4"
  • Type of Base: 360? Swivel
  • Type of Nut: Straight line pull
  • Center Distance: 2 3/8"
  • Bolt Circle Diameter: 8 3/4 "

Wilton 10021 Model 450S, Machinists' Bench Vise Swivel Base, 4-1/2" Jaw Width, 7-1/2" Jaw Opening, 4" Throat Depth

  • Shipping Weight: 71.25lbs
  • Manufactured by: Wilton Corporation
  • Toolsource #: 50662
  • Manufacturers Part #: 10021
  • Also Known As: WC10021, WIL-10021, WIL10021, WILTON10021

Add to cart for details:
This product has been discontinued

Related Products

  • 746 Mechanics Vise - Swivel Base, 6 Inch Jaw Width
    746 Mechanics Vise - Swivel Base, 6 Inch Jaw Width
    Manufacturers Part #: 21500
    The Wilton 6" Mechanics Vise is loaded with the features you expect from the leader in vises. This massive vise boasts a 6" Jaw width, 5-3/4" opening capacity and 4-1/8" throat depth. This vise features a 360? swivel and double lockdowns to ensure maximum stability. Top these industry-leading features off with a lifetime warranty and you know you'll never want for another vise, unless it's a Wilton. Swivel base rotates 360? and has double lockdow...

Customers Also Purchased:

  • Ford Power Stroke 6.7L Diesel Injector Socket 12 Pt 17mm
    Ford Power Stroke 6.7L Diesel Injector Socket 12 Pt 17mm
    Manufacturers Part #: 11400
    Your Price: $46.84
    2013 Top 20 Tools Award Motor Magazine With the advent of high pressure injection, the need to replace and correctly torque the injector lines has become more critical. This unique 17 mm 12 point flare nut socket and deep crows foot gives the technician the ability to remove various injector lines. With the unique geometry of these tool the injectors can be removed without breaking and damaging the electrical connections. The crows foot can be s...

Customers Also Shopped For:

  • 1755 Tradesman Vise Swivel Base 5 1/2 Inch
    1755 Tradesman Vise Swivel Base 5 1/2 Inch
    Manufacturers Part #: 63200
    Your Price: $669.70Includes Free Shipping
    Proudly made in the USA, the Tradesman round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Tradesman round channel vise nut is anchored at the rear. This rear anchored nut provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly. This enclosure keeps debris ...
  • 746 Mechanics Vise - Swivel Base, 6 Inch Jaw Width
    746 Mechanics Vise - Swivel Base, 6 Inch Jaw Width
    Manufacturers Part #: 21500
    The Wilton 6" Mechanics Vise is loaded with the features you expect from the leader in vises. This massive vise boasts a 6" Jaw width, 5-3/4" opening capacity and 4-1/8" throat depth. This vise features a 360? swivel and double lockdowns to ensure maximum stability. Top these industry-leading features off with a lifetime warranty and you know you'll never want for another vise, unless it's a Wilton. Swivel base rotates 360? and has double lockdow...
  • Zip Gun Extra Heavy Duty Air Hammer CPT717
    Zip Gun Extra Heavy Duty Air Hammer CPT717
    Manufacturers Part #: 717
    Your Price: $455.94Includes Free Shipping
    The Chicago Pneumatic CP717 Extra Heavy Duty Zip Gun Air Hammer is the most powerful CP Hammer for automotive, truck, off-road equipment use..498" diameter chisel shank to handle the extra power.Positive action trigger for precise speed control.Applications: front end work, king pin removal, and installation of bulldozer walking beam bushing, removal of truck anchor springs, heavy-duty spring bushings. Specifications: Shank Opening: .498"Weight:...
  • Ford MY 2007 Software Update Kit for the NGS
    Ford MY 2007 Software Update Kit for the NGS
    Manufacturers Part #: 80FDC
    Your Price: $498.11Includes Free Shipping
    NGS 2007 Software Update Package has 4 software cards: 2006 CAN Diagnostic and Service Software; 2007 Non-CAN diagnostic and Service Software and CAN Module Reference Chart NGS User Guide. Update your NGS for diagnostic and service on model year 2006 Ford and Lincoln/Mercury vehicles. 2007 CAN Diagnostic and Service Software Update has comprehensive vehicle coverage. 2006 non-CAN Dignostic and Service Software Update - updates Non-CAN diagnostic...

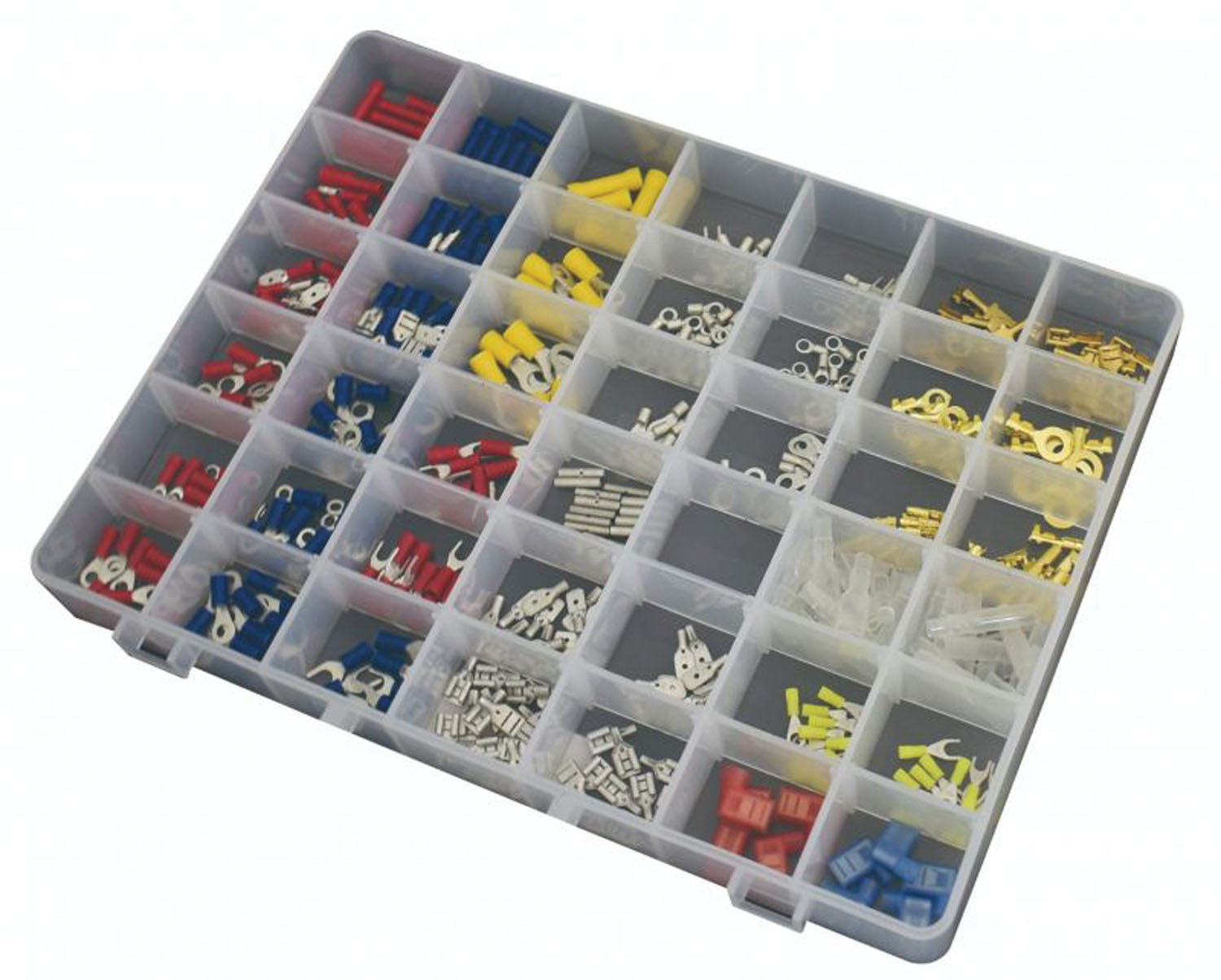

  • 450PC AUTO WIRING TERMCONN
