What is a two-stage air compressor and what are its benefits?

A two-stage air compressor compresses air in two separate stages, resulting in higher pressure output and greater efficiency compared to single-stage models. This makes them ideal for demanding applications requiring consistent high pressure, such as automotive repair, manufacturing, and heavy-duty industrial tasks. Brands like Champion Compressors and Ingersoll Rand are known for their robust two-stage designs.

What should I consider when buying a two-stage air compressor?

Key factors to consider include the required CFM (cubic feet per minute) at your desired PSI (pounds per square inch), the tank size, and the horsepower of the motor. Also, consider the duty cycle, which indicates how long the compressor can run continuously. Many brands, including Chicago Pneumatic and BelAire - IMC, offer a wide range of two-stage compressors with varying specifications.

What are some common applications for two-stage air compressors?

Two-stage air compressors are commonly used in automotive repair shops for powering air tools like impact wrenches and spray guns. They are also essential in manufacturing facilities for operating pneumatic machinery and in construction for running tools like jackhammers. With 478 two-stage air compressors available, ToolSource has options for various applications.

What are the differences between oil-lubricated and oil-free two-stage air compressors?

Oil-lubricated compressors generally offer longer lifespans and quieter operation due to the lubrication reducing friction and wear. Oil-free compressors, on the other hand, require less maintenance and produce cleaner air, making them suitable for applications where air purity is critical. Consider brands like emax compressor for oil-free options.

How do I determine the correct CFM and PSI requirements for my air tools?

Check the specifications of each air tool you plan to use to determine its CFM and PSI requirements. Choose a compressor that can deliver at least the combined CFM of all the tools you'll be using simultaneously, with a PSI rating that meets or exceeds the highest requirement. It's always better to have a compressor with slightly higher capacity than needed.

What type of maintenance is required for a two-stage air compressor?

Regular maintenance typically includes draining the tank to remove condensation, checking and changing the air filter, and inspecting the belts and hoses for wear. For oil-lubricated models, you'll also need to monitor and change the oil according to the manufacturer's recommendations. Proper maintenance will extend the life of your compressor.

What are the benefits of a larger tank size on a two-stage air compressor?

A larger tank provides a greater reserve of compressed air, allowing you to run air tools for longer periods without the compressor cycling on and off as frequently. This can be especially beneficial for continuous-use applications. Consider the tank size based on the demands of your air tools and the frequency of use.

Are there any portable two-stage air compressor options available?

While most two-stage compressors are larger and designed for stationary use, some portable models are available, often with smaller tank sizes. These are suitable for applications where mobility is required, such as on job sites. Check the product specifications to confirm portability features like wheels and handles.

Search

Manufacturers [more]

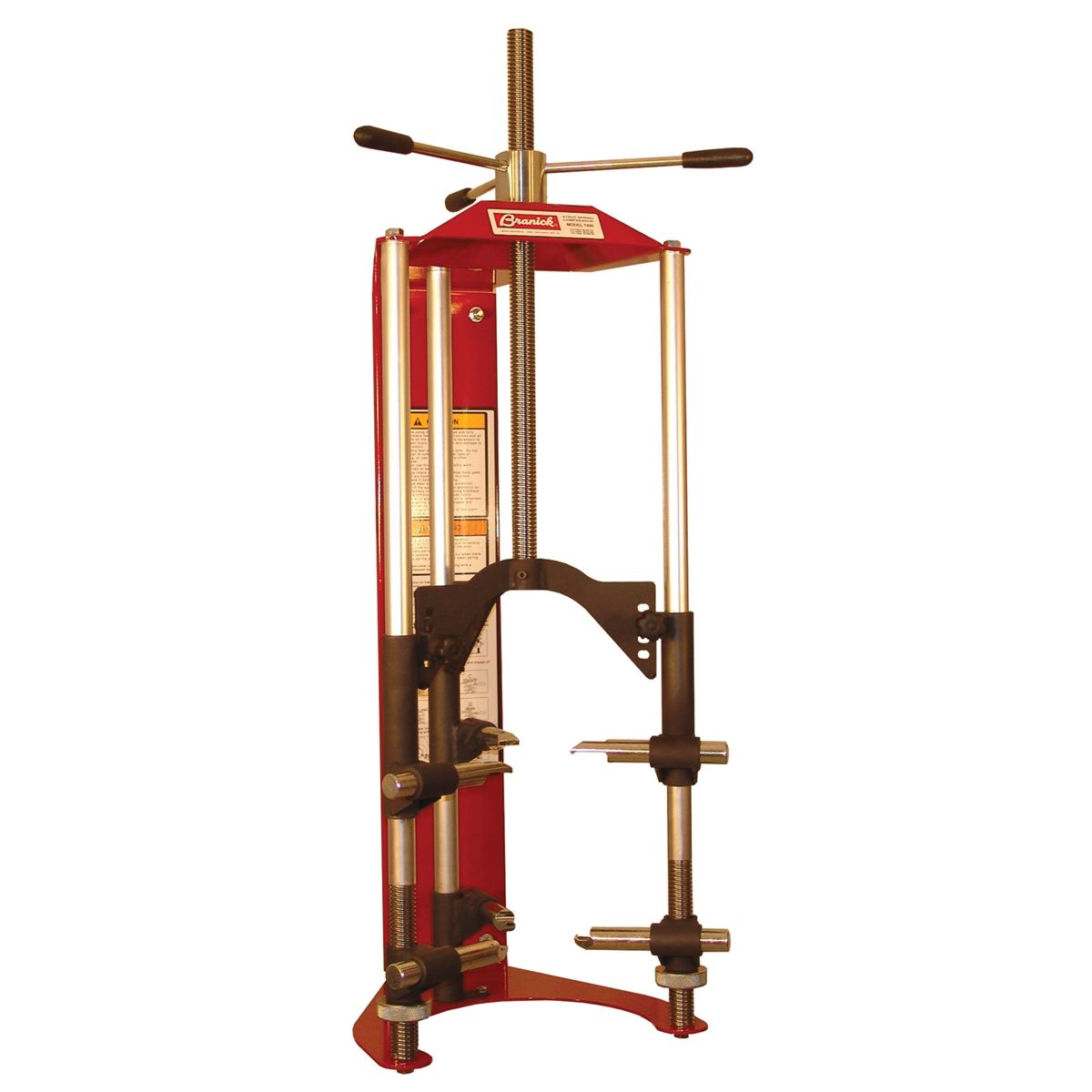

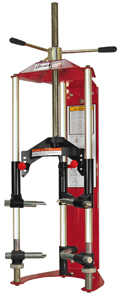

Branick 7600 Strut Spring Compressor - Branick Industries

Name: Branick 7600 Strut Spring Compressor
Brand: Branick Industries
SKU: 186295
Price: 1054.01 USD
Availability: InStock

Part #: 00-0138

larger image

Specifications

The Branick 7600 Strut Spring Compressor, model 00-0138 (00-0138), is engineered for demanding automotive suspension work. This robust unit weighs 100 lbs and has packaged dimensions of 43.75 x 19.75 x 18.25 inches. It offers a maximum spring compression capacity of 3,000 lbs (1361 kgs) and accommodates spring diameters ranging from 3.5 inches to 11.5 inches (9 cm to 29 cm).

Key Features

The Branick 7600 Strut Spring Compressor is designed with efficiency and safety in mind. It features a heavy-duty Acme thread for reliable compression and all-steel construction, ensuring durability. This strut coil spring compressor doesn't require additional adapters, simplifying its use across various vehicle types. Multi-position upper spring hooks are adjustable up to 4 inches, in 1-inch increments, providing flexibility to fit diverse coil spring configurations. Longer handles deliver extra torque, making spring compression easier, while a structural ring guard enhances safety. The unit also boasts better top nut clearance and a longer compression stroke.

Applications

This heavy-duty strut spring compressor is suitable for a wide range of automotive suspension applications, including the removal and installation of coil-over shocks. It is OEM-approved and specifically engineered to handle challenging jobs on light trucks and SUVs. The Branick 7600 efficiently services popular models such as the Jeep Cherokee Trailhawk, Toyota RAV4, Ford F-150, and various GM pickups/SUVs, eliminating the need for specialized adapters for these applications.

Benefits

Utilizing the Branick 7600 provides significant advantages for technicians performing suspension work. Its versatile design and multi-position hooks enhance operational flexibility, allowing it to adapt to difficult coil spring shapes. The robust construction and heavy-duty Acme thread contribute to the tool's longevity and consistent performance. By eliminating the need for adapters, this strut compressor streamlines workflows and reduces the inventory of specialized tools required. The integrated safety features, such as the structural ring guard, help protect users during the spring compression process, promoting a safer work environment.

We have 232 in stock
