Tire Pressure Monitor (TPMS) Master Kit w/ Manuals on CD

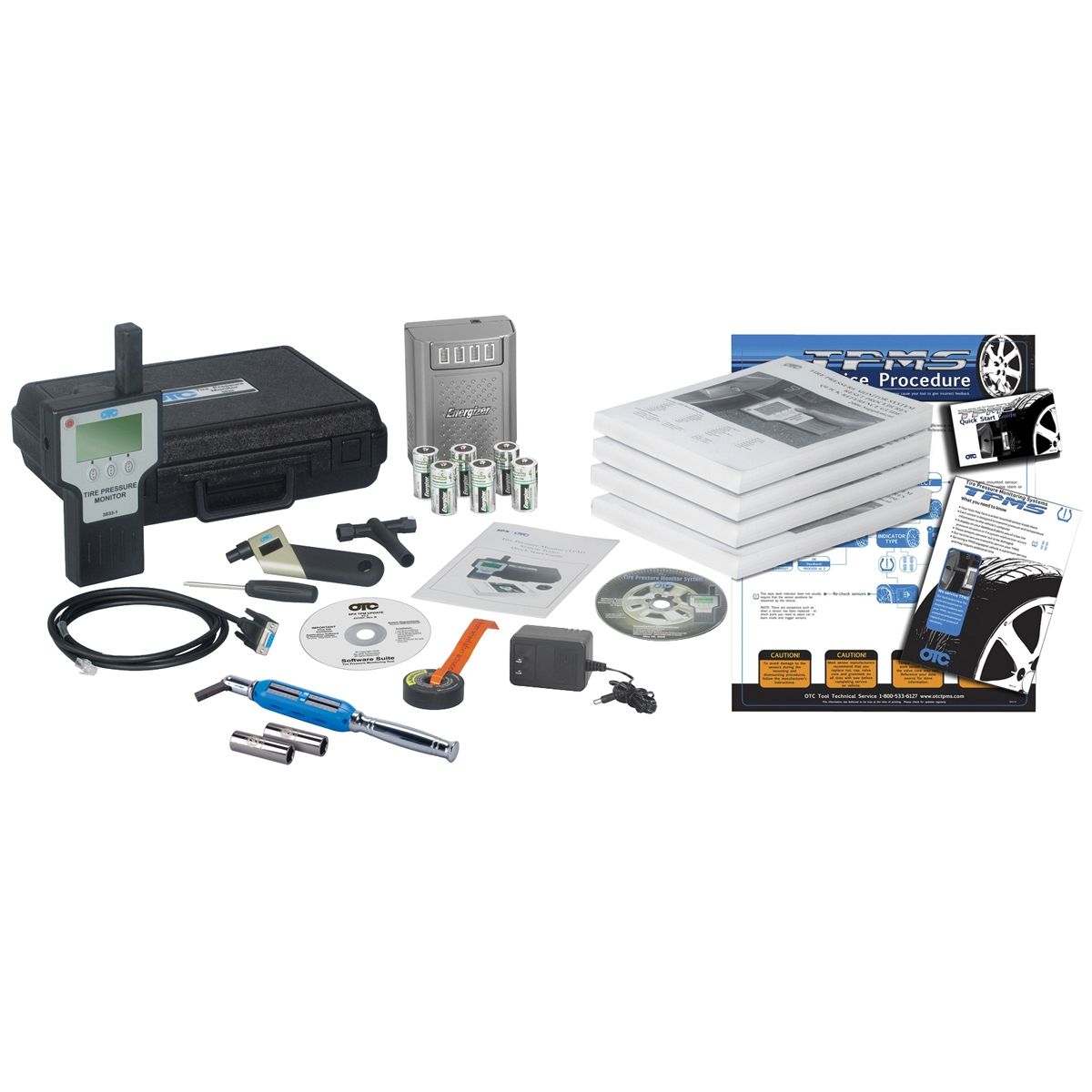

This Kit includes a TPM tool, magnet, digital tire pressure gauge, 4-way valve tool, valve core torque driver, update cable, laminated application flip chart, service procedure flowchart, consumer poster, CD training video, a blow-molded case, 2006 software CD, quick start guide, and 2006 supplement/ quick reference manual.and manual set-Volumes One through Three- all on CD.

Features:

• Complete, universal kit covering vehicles having a Tire Pressure Monitoring System (TPMS)
• New AUTOSCAN feature allows for quick checking of tire sensor operation
• RESET PROCEDURE provides the capability to turn off the illuminated tire pressure monitor dashlight.
• DIAGNOSTICS feature is designed to be used as a sensor pretest, as well as for diagnosing sensors .
• Includes a 2006 supplement/quick reference manual and manual set - Volumes One through Three - all on CD.

The OTC Tire Pressure Monitor Kit is designed to be a complete, universal kit covering vehicles having a Tire Pressure Monitoring System (TPMS). The software contains a vehicle entry system for easy and accurate access to the correct interface for a vehicle. The monitor has a graphical interface that allows use of the tool with little or no knowledge of TPMS. The manual contains TPMS system descriptions, reset requirements, critical reset procedures, torque specifications, and more. Resetting a tire pressure monitor system is likely required if any of the following procedures are performed on a vehicle:

• Tire indicator on dash is illuminated.
• Tire pressure correction(s).
• Tire / wheel rotation.
• Tire / wheel replacement.
• Sensor replacement.
• Receiving antenna replacement.
• Transmitter replacement.
• Control unit replacement.
• Loss of sensor or vehicle battery power.

The new AUTOSCAN feature allows for quick checking of tire sensor operation. Selecting this feature from the main menu allows for a single button push to activate any (RF) radio frequency activated sensor, quickly and accurately. The DIAGNOSTICS feature is designed to be used as a sensor pretest, as well as for diagnosing sensors. Simply entering the vehicle Make-Model-Year selects the correct communication path to the vehicle sensor. This allows for the testing of each sensor by activating and receiving the sensor data for analysis. Pretesting the sensors before any work is done to the vehicle helps to determine if a sensor needs to be replaced, upfront, with the customer. This feature also displays information such as sensor ID#, tire pressure, and sensor mode, helpful in diagnosing problems with the TPMS. The RESET PROCEDURE provides the capability to turn off the illuminated tire pressure monitor dash light. This procedure is also required when any of the aforementioned procedures are done to the vehicle. By simply entering the Make-Model-Year, the display will lead the user to the correct section of the manual to reference for the vehicle entered. The display will then provide instructions and graphical displays to walk the user completely through the reset procedure, quickly and easily.

Other key Tire Pressure Monitor features:

• Multi-lingual software; English, Spanish, French.
• Updateable via serial cable to PC to keep up with changing vehicle requirements.
• Maintains "last vehicle" use history.
• Three "C" batteries (included) provide hours of continuous use.
• AutoShut Down.
• Carries a 3-year warranty.

OTC 3833TCD2009 Tire Pressure Monitor Master Kit w/ Manuals on CD
