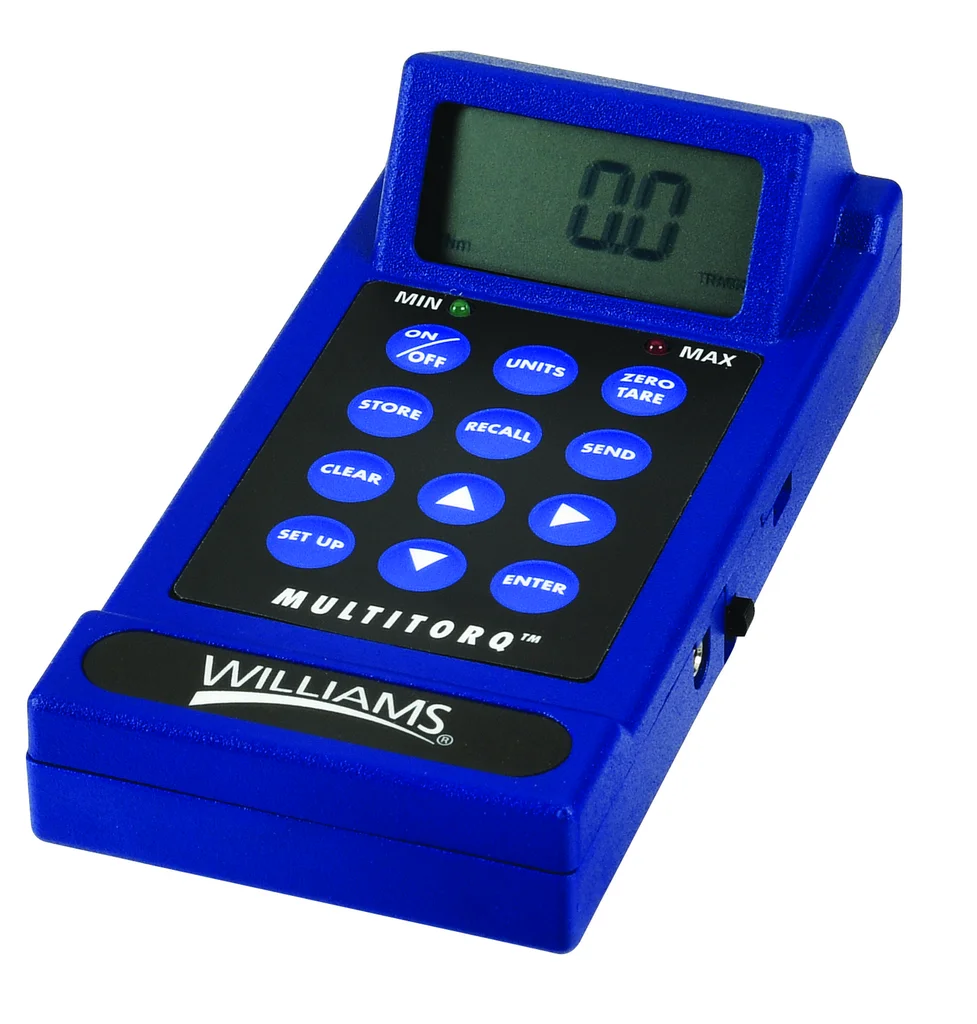

MULTITORQ(TM) Torque Acquisition Meter - J.H. Williams

The J.H. Williams MULTITORQ™ 1600-MT2W Torque Acquisition Meter is a professional-grade electronic torque measurement system designed for precise data collection in demanding automotive and industrial environments. This versatile device connects between your existing sockets and drivers, providing accurate torque readings and advanced analysis capabilities for a wide range of applications.

Key Features

• Flexible Measurement System: Works with J.H. Williams torque sensors (sold separately) between standard sockets and drivers, offering broad compatibility with extensions, universal joints, and ratcheting drivers.
• Precision & Wide Range: Achieves ±1% accuracy (±2% for lower ranges) across 10-100% of sensor capacity, supporting a wide range from 2 in. ozs. up to 1500 ft. lbs.
• Intuitive Operation: Features a wide-angle LCD with selectable units (ft. lb., in. lb., Nm, dNm, mkg, cmkg), a push-button membrane keyboard for target settings, and configurable high/low audible/visual alarms.
• Advanced Data Capabilities: Offers selectable Track (live) and Peak (maximum hold) modes, stores up to 3500 measurements, and includes RS-232 and Mitutoyo statistical output for detailed analysis and reporting.
• Professional Durability: Built for the shop environment with a compact 1-pound design, long-lasting rechargeable Ni-Cad batteries providing 20 hours of continuous use, and bi-directional (CW/CCW) reading.

Applications

The MULTITORQ™ is ideal for quality control, auditing, and assembly operations where precise torque application and verification are critical. Professional technicians and mechanics can utilize this meter for accurate fastener installation in engine assembly, chassis work, and for verifying component integrity across a wide range of vehicles, from light-duty automotive to heavy industrial equipment. Its comprehensive data acquisition features also make it valuable for R&D and calibration laboratories requiring detailed torque analysis.

Specifications

• Accuracy: ± 1% of indicated value (CW & CCW) from 10% to 100% of full scale (± 2% for 20 in. oz., and 10 in. lb. sensors).
• Display Capacity: 4-digit, 8000 counts with alpha & numerical function flags.
• Units: ft. lb., in. lb., in. oz., Nm, dNm, mkg, cmkg.
• Operating Temperature: -20 to 50 degrees C (-2 to 122 degrees F).
• Humidity: Up to 90%, non-condensing.
• Dimensions: 3" W x 2.5" H (3" with belt clip) x 6" D.
• Weight: 1 pound.
• Battery Life: 20 hours continuous (full charge).
• Data Storage: 3500 measurements.
• Output Port: RS-232 (true), 300-19.2k baud, and Mitutoyo (statistical protocol).
• Power: Rechargeable Ni-Cad batteries, 120 VAC charger included (220 VAC charger optional).
