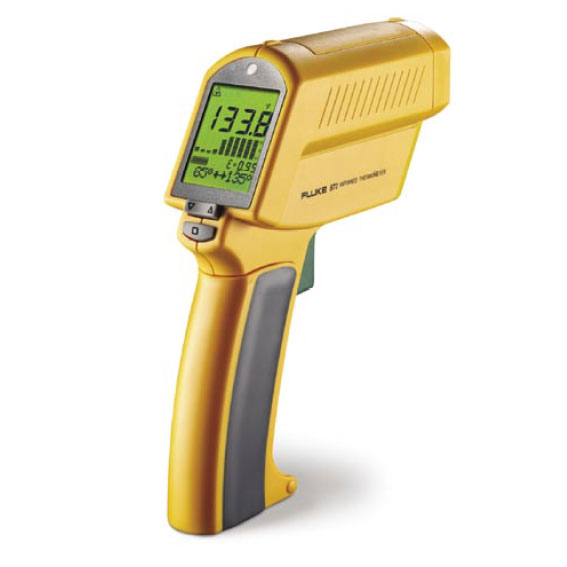

Precision Infrared Thermometer MX2 - Fluke

Part #: 572

Replaces Raytek MX2. The Fluke Infrared Thermometers, formerly the Raytek MX, are now part of the Fluke line of test and measurement equipment.

  • Non-stock item, 6-week lead time.
Features:
  • Backlit display for poorly lit areas
  • Last ten temperature readings displayed on bar graph for easy reference
  • Enhanced optics (distance to spot ratio up to 60:1) allow measurements of smaller objects from farther away
  • Coaxial three-dot laser sighting system highlights the true diameter of measurement spots at all distances (90% energy)
  • Extra bright appearing 635nm laser (tested to the same safety and power standards as less bright laser sights) to clearly highlight the targeted area
  • Close-focus option available for specialized applications
  • MIN/MAX measurements calculations instantly computed
  • Audible and visible HI temperature alarm for instant recognition
  • Comfortable, overmolded pistol grip makes target sighting easy
  • Adjustable emissivity setting (.01 increments) for more accurate measurement
  • Durable hard plastic storage case included
Technical Specifications
Temperature range
 -30 to 900°C
 (-25 to 1600 °F)
Display Resolution
 0.1°C of reading up to 900°C
 0.2°F of reading up to 999.8°F
D:S (Distance to spot size)
 60:1 Standard focus
 50:1 Close focus
Minimum measurement diameter
 19mm (0.76 in) Standard focus
 6mm (0.24 in) Close focus
Laser sighting
 Three point coaxial laser
Emissivity
 Digitally adjustable from 0.10 to 1.0 by 0.01
Display Accuracy [Assumes ambient operating temperature of 23°C(73°F) to 25°C(77°F)]
 ±0.75% of reading
 ±1% of reading or ±0.75°C (±1.5°F), whichever is greater
Response time
 250 mSec (95% of reading)
Repeatability
 ±0.5% of reading or ±1°C (±2°F), whichever is greater
Spectral response
 8 µm to 14 µm
Laser Sighting
 Laser turns off above ambient temperature of 40°C (104°F)
Laser Power
 Class 2(II) operation; Output <1mW, wavelength 630-670 nm
Relative humidity
 10% to 90% RH non-condensing, at <30°C (86°F)
Tripod mount
 ¼ in. 20 UNC threading
Power
 2 AA batteries
Battery life (alkaline)
 13 hours with laser and backlight on 50%
Display hold
 7 seconds
LCD backlit
 Yes
Warranty
 2 years
Operating temperature
 0°C to 50°C
 32°F to 120°F
Storage temperature
 -20°C to 50°C
 -25°F to 120°F
MAX, MIN temperatures
 Yes
DIF, AVG temperatures
 No
Audible and visible alarms
 High
Bar graph display
 Yes
Up to 100 points data logging
 No
Data graphing and storage software (Windows compatible)
 No
Fluke 572 Precision Infrared Thermometer
