J560 PLC Set - NEXIQ Technologies

Specifications

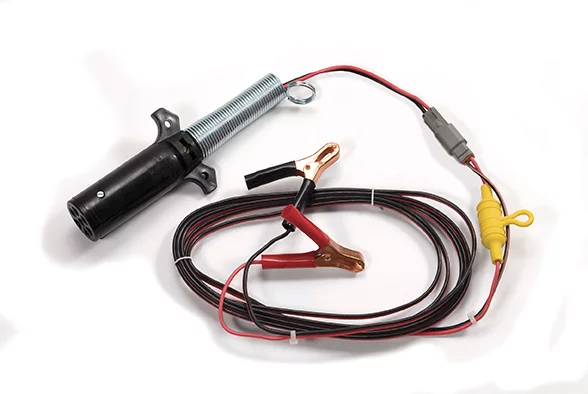

The NEXIQ Technologies J560 PLC Set, part number 424001, functions as a specialized 7-way cable designed for heavy-duty vehicle diagnostics. This cable set facilitates direct connection to Anti-lock Brake Systems (ABS) on trailers that utilize Power Line Carrier (PLC) communications, typically standard on trailers manufactured after March 2001.

• Manufacturer: NEXIQ Technologies
• Model Number: 424001
• Weight: 1 lbs
• Dimensions: 1 x 1 x 1 inches
• Connectivity: J560 7-Way connector for Power Line Carrier (PLC) communication

Key Features

The J560 PLC Set offers robust attributes for comprehensive trailer brake system analysis and connectivity.

• J2497 Power Line Carrier (PLC) Communication: Supports J2497 Power Line Carrier (PLC) communication, extracting data from the power line and converting it into the J1708 format. This ensures compatibility with diagnostic tools.
• Universal Diagnostic Tool Compatibility: Designed to integrate with virtually any heavy-duty vehicle communication interface (VCI) or scan tool. This includes NEXIQ's USB-Link, USB-Link 2, USB-Link 3, and Pocket HD adapters.
• WABCO PLC Trailer Brake Interface: Interfaces with all WABCO PLC trailer brake systems.
• Flexible Connection Options: Allows connection between the tractor and trailer or directly to the trailer alone. For standalone trailer diagnostics, an external power supply is required.
• Integrated Power Supply Clips: Includes alligator clips to facilitate direct power supply from a battery for independent trailer diagnostics.

Applications

The NEXIQ J560 PLC Set is an essential tool for technicians and maintenance personnel working with heavy-duty commercial trailers.

• Trailer ABS System Diagnostics: Detects and interprets Anti-lock Brake System (ABS) warning lamp messages directly from the trailer ECU.
• In-Cab Warning Lamp Testing: Enables testing of in-cab trailer ABS warning lamps to confirm their operational status.
• SAE Message Analysis: Tests SAE J1708 MID 10 and 11 messages, as well as SAE J1587 MIDs 136 through 139, for detailed system evaluation.
• Fleet Maintenance and Repair: Provides diagnostic capabilities for routine maintenance, troubleshooting, and safety inspections of commercial trailers.

Benefits

The J560 PLC Set delivers tangible advantages, streamlining diagnostic processes and contributing to enhanced safety and operational efficiency for heavy-duty commercial vehicles.

• Enhanced Road Safety: Ensures that trailer ABS brakes are properly tested and maintained, which helps in preventing braking issues and keeps vehicles safer on the road.
• Simplified Diagnostics: Offers a quick and easy connection to trailer ABS systems, making maintenance and checks more efficient and less complex.
• Reliable Performance: Provides consistent and accurate communication for dependable results, allowing technicians to confidently identify and address issues.
• Increased Operational Efficiency: Reduces diagnostic time and minimizes vehicle downtime by facilitating rapid and effective troubleshooting.
• Durability and Longevity: Manufactured to withstand demanding shop environments and frequent use, ensuring the cable remains functional for a long time.
• Cost-Effective Maintenance: Supports accurate and timely repairs, which helps prevent costly breakdowns and extends the service life of commercial trailers.
