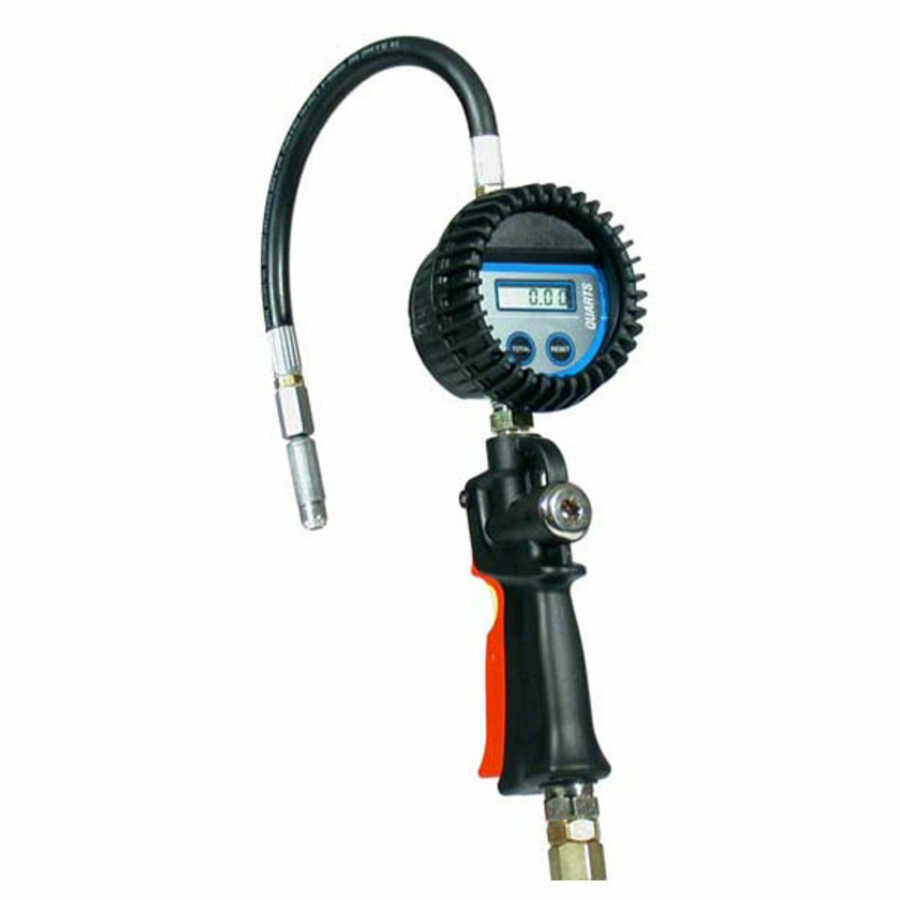

Digital Meter - Quarts Only

Recommended for:

• Motor oil
• Gear lube
• ATF

Applications:

• Fast Lubes
• General service stations
• Automobile dealerships
• Fleet maintenance
• Agricultural
• Construction

Features:

• Dispenses in quarts only
• 3 1/2 " easy to read 5 digit display with .01 increments
• 1/2 " NPT threads on inlet and outlet
• Extension hose (1315A)
• Automatic nozzle with non-drip tip(26A)
• Battery type 3VCR1/2AA (62576-001)
• Rubber shroud protects the display

Specifications:

• Maximum Flow 8 gpm
• Minimum Flow .25 gpm
• Max Operating Pressure 1500 psi
• Max operating temperature 110? F
• Accuracy viscosity > 40 cps +- 0.5%
• Accuracy viscosity < 40 cps =- 4.0%
• Weight 2.5 lb.

The National-Spencer 1504 Digital Meter is a high-quality, accurate, and durable dispensing meter that is perfect for a variety of applications. It features a large, easy-to-read display that shows the amount of fluid dispensed in quarts, as well as a 5-digit display with .01 increments. The meter also has a rubber shroud that protects the display from damage.

The 1504 Digital Meter is equipped with a 1/2" NPT inlet and outlet, making it compatible with a variety of hoses and fittings. It also comes with an extension hose and an automatic nozzle with a non-drip tip.

The meter is powered by a 3VCR1/2AA battery, which is included. It has a maximum flow rate of 8 gpm and a minimum flow rate of .25 gpm. The meter can withstand a maximum operating pressure of 1500 psi and a maximum operating temperature of 110 degrees Fahrenheit.

The 1504 Digital Meter is accurate to within 0.5% for viscosities greater than 40 cps and 4.0% for viscosities less than 40 cps. It weighs 2.5 pounds and comes packaged in a box that measures 24" x 7" x 7".

The National-Spencer 1504 Digital Meter is a great choice for a variety of applications, including fast lubes, general service stations, automobile dealerships, fleet maintenance, agricultural, and construction. It is a high-quality, accurate, and durable dispensing meter that will provide years of reliable service.

• High-quality, accurate, and durable dispensing meter
• Large, easy-to-read display
• 5-digit display with .01 increments
• 1/2" NPT inlet and outlet
• Extension hose and automatic nozzle with non-drip tip
• Powered by a 3VCR1/2AA battery
• Maximum flow rate of 8 gpm
• Minimum flow rate of .25 gpm
• Maximum operating pressure of 1500 psi
• Maximum operating temperature of 110 degrees Fahrenheit
• Accurate to within 0.5% for viscosities greater than 40 cps and 4.0% for viscosities less than 40 cps
• Weighs
