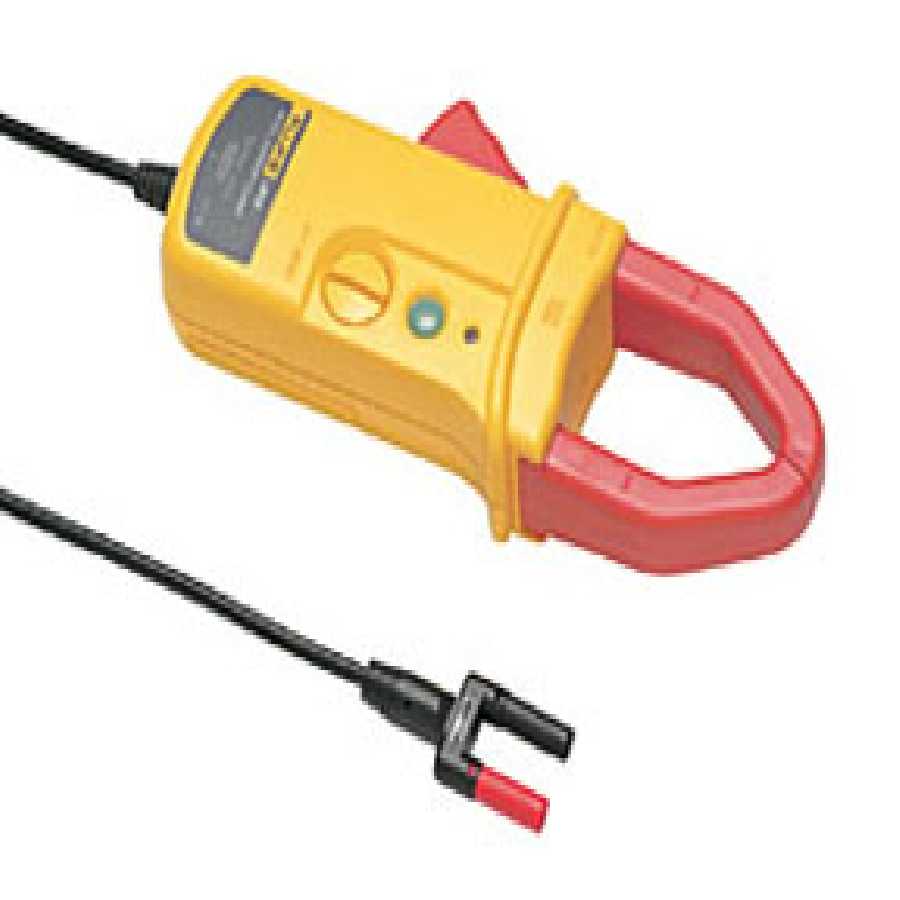

AC/DC Clamp-On Current Probe 400 Amp I410

  • Battery-powered, Hall-effect, clamp-on probe measures AC or DC current from 5A to 400A.
  • Maximum conductor size: one 1.18" (30mm) or two each 0.98" (25mm).
  • Output is 1mV per amp DC or AC.
  • Accuracy n(5%+2.5A), 5A to 400A, DC to 62 Hz. Useable to 400 Hz.
Specifications
Measurement type
 Hall sensor
Nominal current range
 400 A, AC/DC
Continuous current range
 1 A - 400 A AC/DC
Maximum Non-Destructive Current
 400 A
Lowest measurable current
 0.5 A
Basic Accuracy
 3.5% + 0.5 A
 (% reading + floorspec)
Useable frequency
 DC - 3 kHz
Output level(s)
 1 mV/A
Zero error adjustment
 Yes

Safety Specifications
Safety
 CAT III, 600 V
Maximum voltage
 600 V

Mechanical & General Specifications
Warranty
 1 year
Battery Life
 9 V, 60 h
Maximum conductor diameter
 30 mm
 2 x 25 mm
Output cable length
 1.6 m
Shrouded banana plugs
 Yes
Fluke i410 1A to 400A Clamp-on AC/DC Current Probe
  • Model: 73957
  • Shipping Weight: 2lbs
  • Manufacturers Part #: I410
  • Manufactured by: Fluke
  • Also Known As: FL617727, FLUI410, FLI410, FLK-I410

We have 10 in stock

Inventory available from other suppliers, prices may be different

$374.74

Add to Cart:

This product was added to our catalog on Monday 12 February, 2007.
