What is an ignition tester and why would I need one?

An ignition tester is a diagnostic tool used to verify the presence and strength of the spark in an engine's ignition system. It helps determine if the spark plugs are receiving adequate voltage from the ignition coil, which is essential for combustion. You would use an ignition tester when diagnosing a no-start condition, misfires, or rough running issues. By quickly checking for spark, you can narrow down potential problems to the ignition system rather than fuel delivery or other engine components.

What are the different types of ignition testers available?

There are several types of ignition testers, each with slightly different applications. Inline spark testers, like the Lisle Ignition Spark Tester, connect between the spark plug and the spark plug wire to visibly show the spark. Adjustable spark testers, such as the Thexton Mfg Co Ignition Spark Tester, allow you to adjust the gap to test spark strength under different simulated loads. Some testers, like the GearWrench Calibrated Ignition Tester, measure the actual voltage of the spark. Finally, inductive spark testers can detect spark without direct contact, which is useful for testing coils directly.

How do I use an inline spark tester?

To use an inline spark tester, first disconnect the spark plug wire from the spark plug. Then, connect one end of the inline tester to the spark plug and the other end to the spark plug wire. Start the engine and observe the tester. A visible spark indicates that the ignition system is producing a spark. If there's no spark, or a weak spark, it suggests a problem with the coil, wiring, or other ignition components. Always follow the tool manufacturer's instructions and exercise caution when working near a running engine.

What does a calibrated ignition tester do, and when would I use it?

A calibrated ignition tester measures the voltage required to jump a specific gap, giving you a quantitative measure of spark strength. This is useful for diagnosing weak coils or ignition modules, especially in high-energy ignition systems. By comparing the measured voltage to the manufacturer's specifications, you can determine if the ignition system is performing within its optimal range. A calibrated tester provides more precise information than a simple inline spark tester, which only indicates the presence of spark.

Can ignition testers be used on both standard and high-energy ignition systems?

Yes, many ignition testers can be used on both standard and high-energy ignition systems, but it's crucial to choose a tester that is rated for the voltage range of the system you're testing. Some testers, like the Thexton Mfg Co Adjustable Ignition Spark Tester, have adjustable settings to accommodate different ignition systems. Always check the tester's specifications to ensure it's compatible with the system you're working on to avoid damaging the tester or the vehicle's ignition system.

How do I test spark plug wires with an ignition tester?

Some ignition testers, like the Lisle Spark Tester, are designed to test spark plug wires without puncturing them. With the engine running, place the tester's probe along the length of the spark plug wire. If the tester indicates a spark, the wire is conducting electricity. A weak or absent spark suggests a damaged or degraded wire. Remember to keep the probe away from any moving engine components. Always follow the specific instructions for your tester model.

What safety precautions should I take when using ignition testers?

When using ignition testers, always exercise caution due to the presence of high voltage. Ensure the engine is in a well-ventilated area to avoid carbon monoxide poisoning. Avoid touching any bare metal parts of the ignition system or tester while the engine is running. Wear appropriate personal protective equipment (PPE), such as insulated gloves and eye protection. Disconnect the negative battery cable before performing any major repairs to the ignition system. Always follow the manufacturer’s instructions for both the ignition tester and the vehicle.

What does it mean if my ignition tester shows a weak spark?

A weak spark indicated by an ignition tester can point to several potential issues. It could signify a failing ignition coil, corroded or loose wiring connections, a faulty ignition module, or even a weak battery. It may also mean a spark plug is worn or damaged, causing it to require more voltage to fire. Further diagnosis is needed to pinpoint the exact cause, but a weak spark is a clear indicator that the ignition system is not performing optimally. Check the spark plug condition, wiring, and coil before replacing any components.

Search

Manufacturers [more]

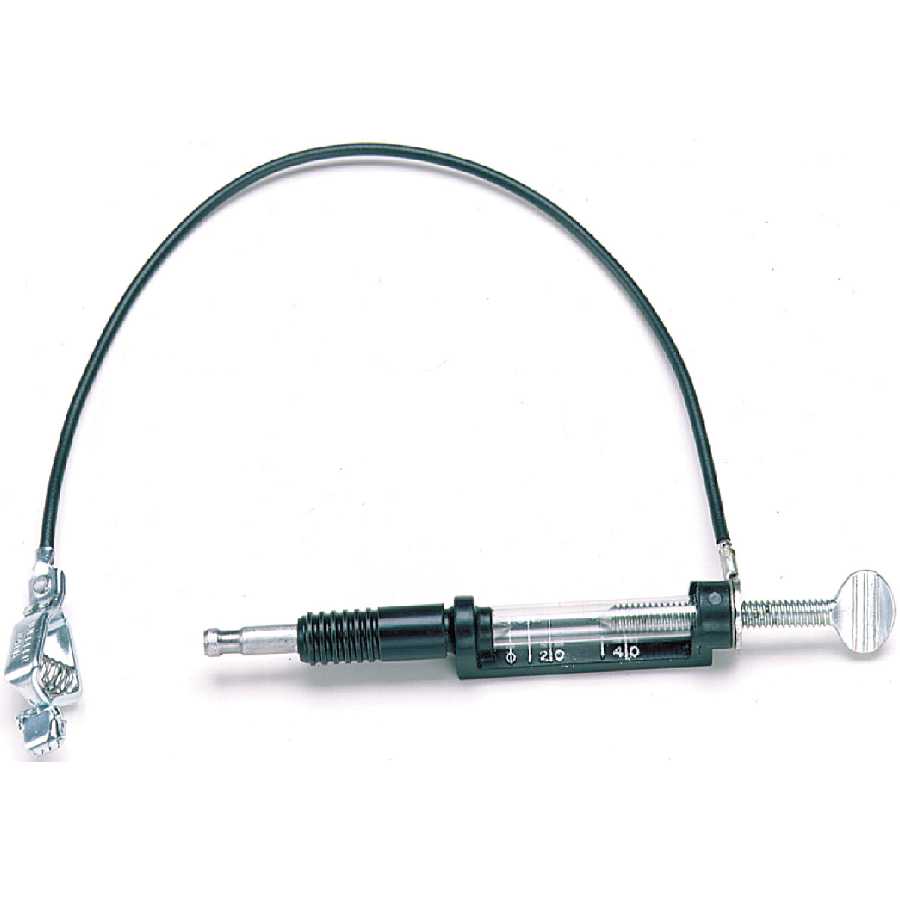

Thexton Mfg Co | 458 | Coil-On Spark Plug Tester

Name: Coil-On Spark Plug Tester
Brand: Thexton Mfg Co
SKU: 98157
Price: 28.98 USD
Availability: InStock
Rating: 3 (1 reviews)

larger image

Specifications

Model Number: 458
Weight: 0.15 lbs
Dimensions: 9 x 5 x 1 inches
Manufacturer: Thexton Mfg Co Thexton THEXTON

Key Features

Specifically designed for Coil-On Plug (COP) ignition systems.
Performs non-invasive spark plug testing, eliminating the need for component removal.
Compact and lightweight build for easy handling and storage.
Durable construction ensures reliability in workshop environments.

Applications

Diagnosing spark delivery issues in automotive Coil-On Plug ignition systems.
Troubleshooting engine misfires and rough idling linked to faulty ignition coils or spark plugs.
Verifying the presence and quality of spark without disassembling engine components.
Suitable for use by professional automotive technicians and DIY mechanics during vehicle maintenance and repair.

Benefits

Efficient Diagnostic Tool: Quickly identifies defective ignition coils or spark plugs in COP systems, significantly reducing diagnostic time for automotive spark testing.
Streamlined Process: Enables non-invasive testing, which eliminates the need to remove engine parts, saving labor and effort.
Accurate Troubleshooting: Provides a clear visual indication of spark presence, aiding in precise identification of ignition system problems like a misfire.
User-Friendly Operation: Simple to use, making it an accessible ignition system diagnostic tool for both experienced technicians and home users.

Other products
Thexton Mfg Co Homepage
Model: 98157
Shipping Weight: 0.15lbs
Manufacturers Part #: 458
Manufactured by: Thexton Mfg Co
Also Known As: TH458, THX458, THX-458, TX458

We have 21 in stock

Inventory available from other suppliers, prices may be different

$28.98

Add to Cart:

Earn 1% Back On Every Purchase (Rewards Program)

We are Here To Help (Contact Us)

1 person has this item in their cart!

Write Review

This product was added to our catalog on Friday 09 February, 2007.
