Gedore Clutch Tool Set SAC with Reset Tool - Gedore

Features and Benefits:

• Fits universally for SAC clutches with 3- and 4-hole pitch available.
• For a professional removal and installation of SAC clutches
• Enables the resetting of the SAC adjusting ring in the clutch pressure plate
• For a precise centring of the clutch disc
• Two clamping / centring elements (for clutch disc and guide bearing / crankshaft bore)
• Also for clutches with larger crankshaft bore as clutch disc hub diameter can be centred.

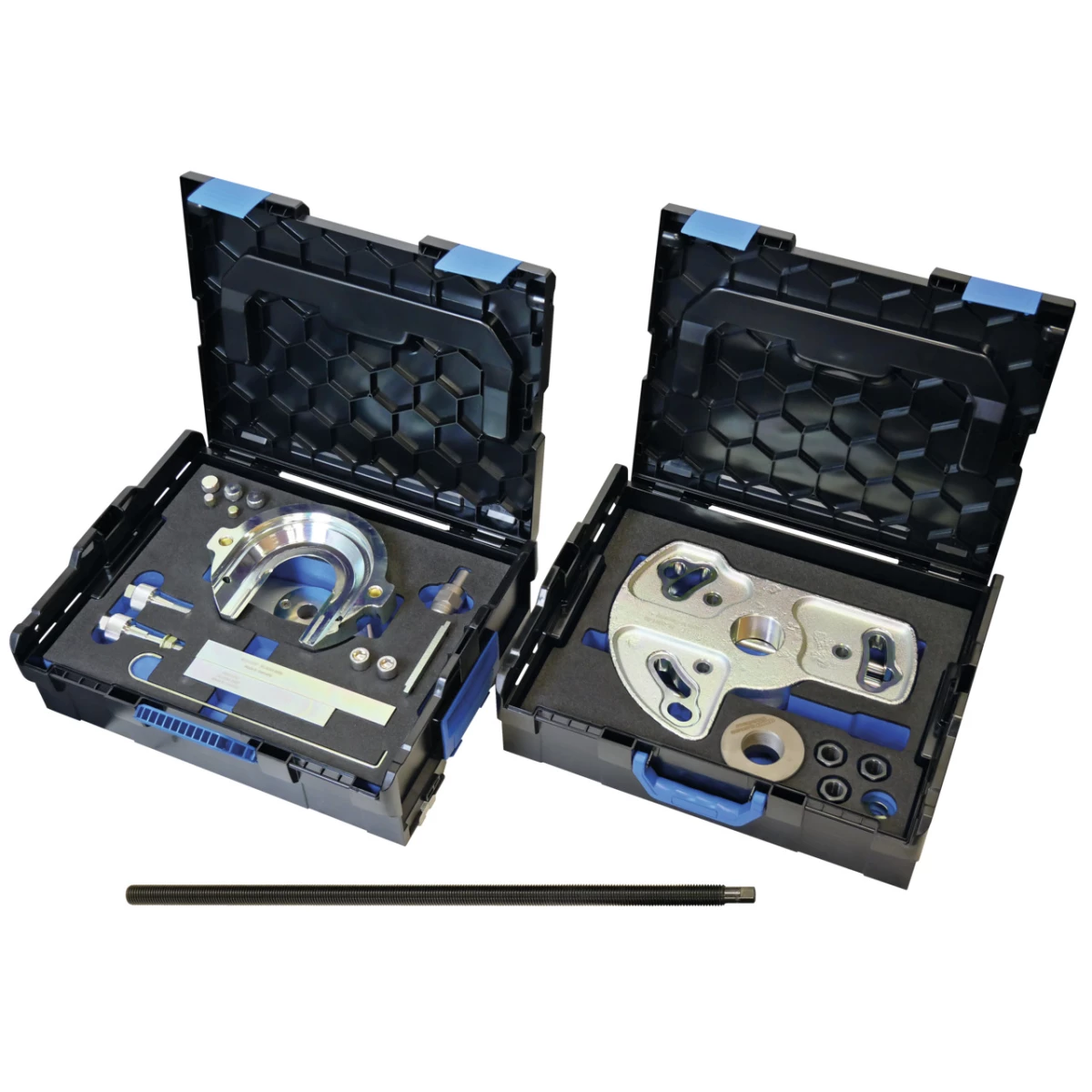

The KL-0500-45 KA clutch tool set is indispensable for the professional removal and installation of Self-Adjusting Clutches (SAC). Correct removal and installation of these clutches is almost impossible without the use of our tool set, as there is always a risk of damaging or distorting the clutch. This will result in incorrect separation or "grabbing" of the clutch. Distorted or incorrectly mounted clutches are defective and must be replaced. The tool set KL-0500-45 KA prevents damage to the SAC when removing and installing it. Also, the risk of distorting the adjusting ring in the clutch pressure plate is eliminated using this tool. The newly developed clutch aligner KL-0500-405 enables clutch discs to be centred also on vehicles that do not feature a pilot bearing in the crankshaft. The two clamping-/centring elements ensure, on the first clamping element (? 15 - 28mm) the accurate centring in the clutch disc, and on the second element (? 12 - 28mm) the accurate centring in the pilot bearing, respectively the crankshaft bore. Even clutches on engines with the crankshaft bore ? larger than the clutch disc hub ? can be aligned neatly and accurately thanks to this tool. Procedure: Before removal, pre-tension the clutch pressure plate by means of the clutch pre-tensioner. For this, unscrew three fastening screws and replace with three thread bolts. Position the clutch pretensioner on
