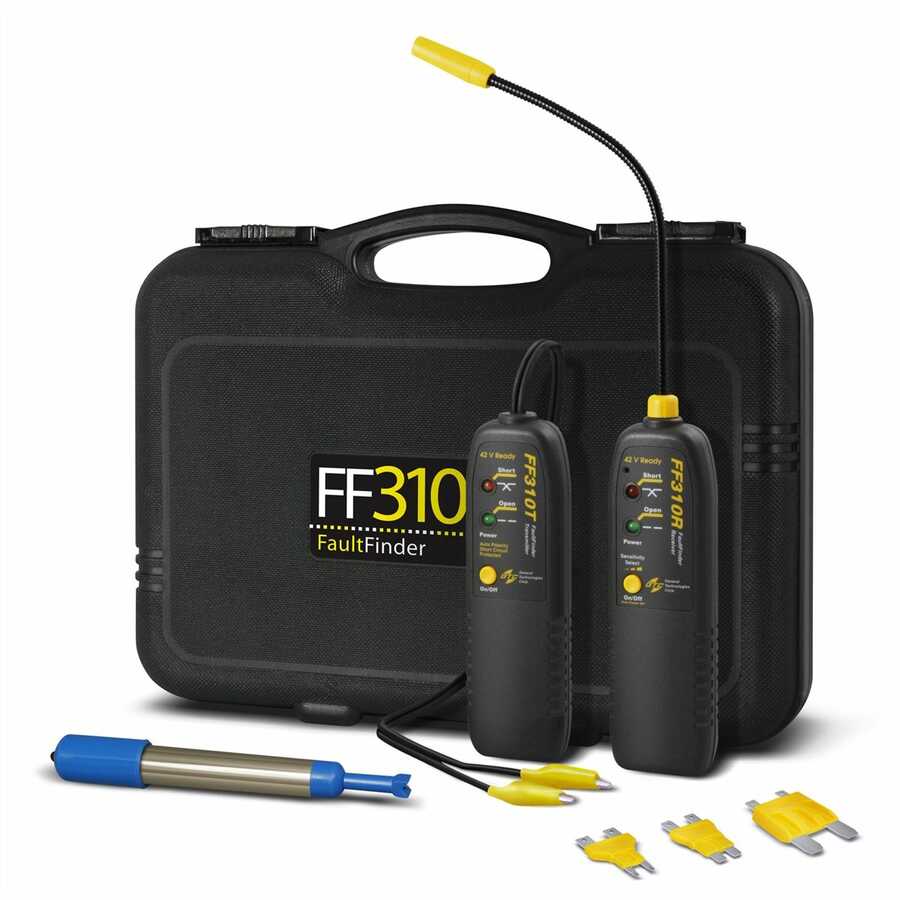

Short / Open Circuit Finder and Circuit Tracer - Supersedes SHFF - Sheffield Research

Specifications

• Model Number: FF310
• Manufacturer: Sheffield Research
• Weight: 1.7 lbs
• Dimensions: 0 x 0 x 0 inches
• Input Voltage: 6 to 42 volts DC
• Functions: Short circuit tracing, open circuit tracing, wire identification, wire/circuit tracing, ground connection checks

Key Features

• Comprehensive Circuit Fault Detection: Accurately locates both short circuits and open circuits within electrical systems.
• Precise Circuit Tracing: Identifies and traces the path of electrical wires and circuits.
• Wide Voltage Compatibility: Operates on DC circuits ranging from 6 to 42 volts, accommodating diverse electrical systems.
• Non-Invasive Troubleshooting: Traces wires through panels and other non-metallic barriers, reducing the need for extensive disassembly during diagnostics.

Applications

• Automotive Diagnostics: Ideal for troubleshooting electrical issues in automobiles, trucks, trailers, tractors, motorcycles, and all-terrain vehicles.
• Marine Electrical Systems: Suitable for identifying faults and tracing wiring in boats and other marine equipment.
• Heavy Equipment Maintenance: Utilized by technicians for diagnosing electrical problems in farming and other heavy equipment.
• General Electrical Work: Assists in wire identification, circuit mapping, and verifying ground connections in various settings.

Benefits

• Time-Saving Diagnostics: Quickly pinpoints the location of shorts and opens, significantly reducing troubleshooting time.
• Enhanced Efficiency: Streamlines the repair process by providing accurate fault identification, enabling technicians to work more effectively.
• Reduced Guesswork: Eliminates the need for trial-and-error methods, ensuring a precise approach to electrical repairs.
• Improved Safety: Helps prevent unnecessary power outages and minimizes the risk associated with working on electrical systems by clearly identifying circuit conditions.
