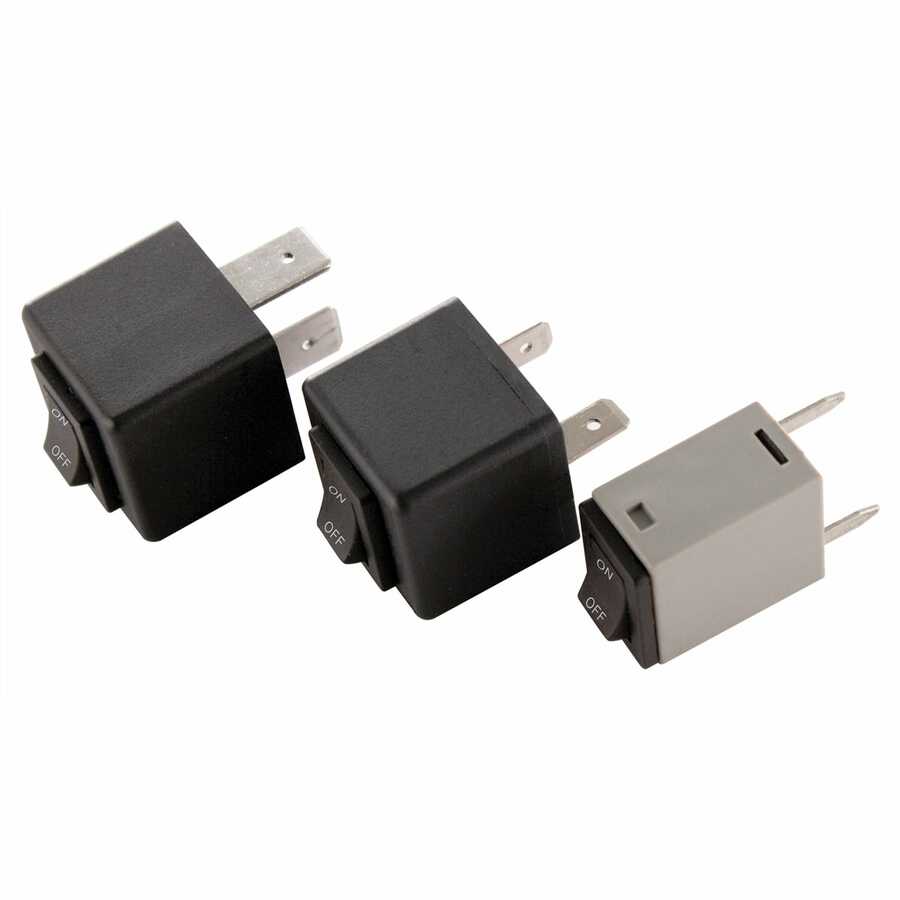

Relay Bypass Kit Large, Medium & Small Spade Relay Switches

Relay Bypass Kit Large, Medium & Small Spade Relay Switches
The set features an On/OFF switch mounted into the 3 most common relay types and is used in place of the relay. Eliminates the control circuits and provide manual override control of the relay circuit. Popular for fuel pump, fan motor, starter applications and many more!
  • Plugs in place of relay
  • Provides direct control over a relay circuit
  • Isolate electrical components
  • Verify load
  • Operating range: 20 amp continuous, 30 amp surge (12V)
Innovative Products Of America IPA 9036 Relay Bypass Kit
  • Shipping Weight: 0.14lbs
  • Manufactured by: Innovative Products of America
  • Toolsource #: 129131
  • Manufacturers Part #: 9036
  • Also Known As: IP9036, IPA-9036, IPA9036

Only 1 left in stock - order soon

Inventory available from other suppliers, prices may be different

$29.84
