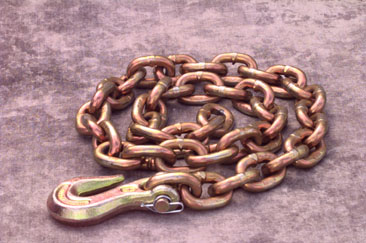

5/16" Frame Chain 4'

Mo-Clamp chain is manufactured in accordance with the NACM Specification for chain, ASTM Standard A391 and ASTM Standard A413 for grade 70 carbon steel chain. Mo-Clamp chain is protectively plated with yellow dichromate. #6270 5/16" Alloy Clevis Grab Hook included.
  • Overall Length: 4' (1.22 m)
  • Working Load Limit: 4,700 lbs (2,132kg)
  • Proof Test: 9,400 lbs (4,263kg)
  • Chain Weight: 1 lb (.45kg)/ft
  • Grab Hook Weight: 1 lb (.45kg)
WORKING LOAD LIMIT: Refers to the maximum load (rated capability) in pounds that shall be applied in direct tension to a straight length of chain or attachment. NEVER EXCEED THE WORKING LOAD LIMIT.

PROOF TEST: Refers to a load in pounds which an attachment or chain (or both) has withstood during a test in which increasing tension is applied to an attachment or straight length of chain.

WARNINGS: Always inspect chain and attachments for kinking, twisting, knotting and visible defects such as distortion or damage. Do not jerk load - apply pressure slowly and steadily.

Replacement Parts: #62300 Clevis Pin, #62802 Rue Clip

Heat Treated Steel. Made in the U.S.A.

Mo-Clamp 6504 5/16" Frame Chain 4' PU6504

  • Model: 117686
  • Shipping Weight: 5lbs
  • Manufacturers Part #: 6504
  • Manufactured by: Mo-Clamp
  • Also Known As: PU6504, MCL-6504, MOC6504

Usually In Stock
Usually ships in 24-48 hours
Manufacturer Direct


Add to Cart:

This product was added to our catalog on Tuesday 28 December, 2010.
