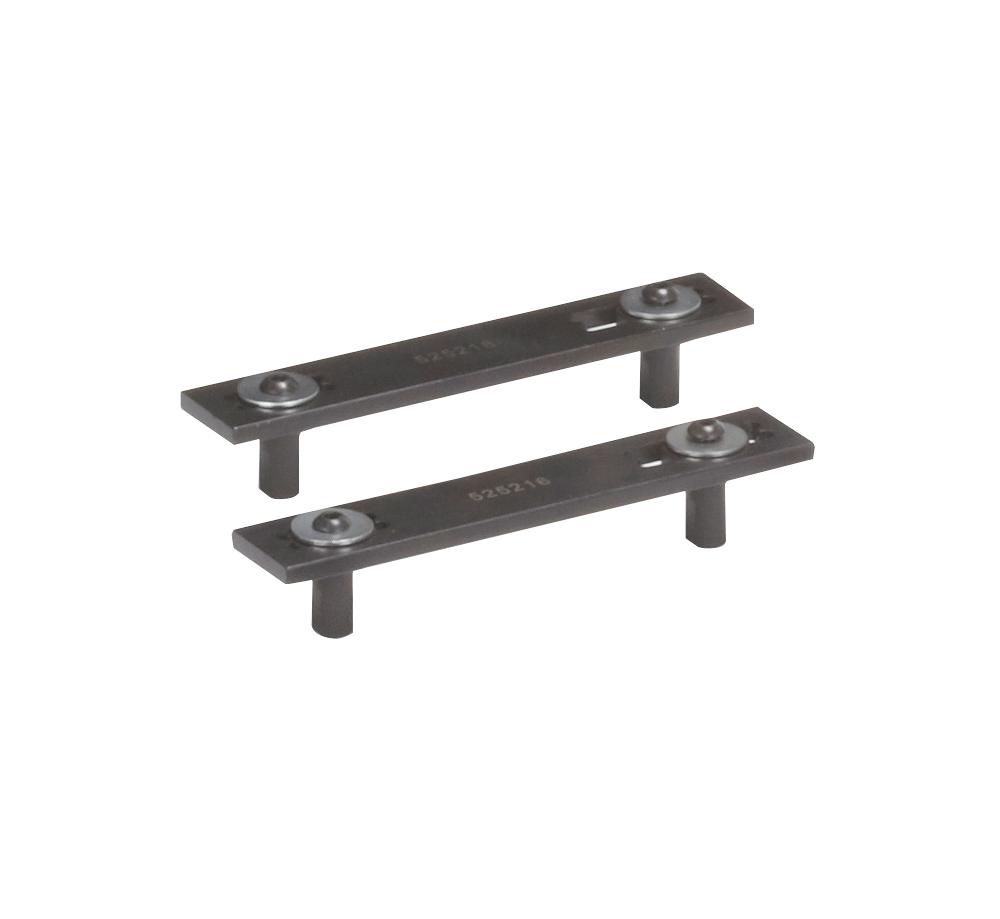

Ford Camshaft Positioning Tool 303-413 - T92P-6256-A - OTC Tools and Equipment

The OTC 6020 Ford Camshaft Positioning Tool is an essential, dedicated setup tool for professional technicians working on modular Ford engines. Engineered as a direct OEM equivalent, this tool precisely locks camshafts during critical timing and cylinder head service procedures, ensuring accurate engine reassembly and preventing costly rework. This tool helps maintain optimal engine performance by facilitating correct camshaft alignment.

Key Features

• OEM-Equivalent Performance: Directly replaces Ford service tools 303-413 and T92P-6256-A, providing the exact specifications required for professional automotive repairs.
• Precise Camshaft Alignment: Features a rigid construction that maintains accurate camshaft positioning, which is crucial for correct engine timing during belt/chain replacements and cylinder head work.
• Professional-Grade Durability: Constructed from heavy-duty materials designed to withstand consistent daily use in demanding shop environments, ensuring a long and reliable service life.
• Reduces Rework Risk: Helps prevent common timing errors that can lead to drivability issues or severe engine damage after reassembly, thereby enhancing repair efficiency and reliability.
• Mandatory Companion Tool: Designed to be used in conjunction with the OTC 6009 Camshaft Positioning Tool to securely hold and locate camshafts during service, preventing accidental timing changes.

Applications

The OTC 6020 camshaft positioning tool is utilized to securely hold and locate camshafts during critical engine services. This includes procedures such as timing belt/chain replacement, cylinder head removal and installation, and complete engine rebuilds on compatible Ford vehicles. It supports 1992 and newer 4.6L 2-valve, 5.4L, and 6.8L V8 engines found in platforms including Crown Victoria, Grand Marquis, F-Series trucks, Expedition, Econoline, and Navigator models. This tool is suitable for any procedure specifying the use of Ford tool 303-413 or T92P-6256-A.

Specifications

• Manufacturer: OTC Tools and Equipment
• Model / Part Number: 6020
• Weight: 1 lb
• Dimensions: 5 x 4.4 x 2.4 in
