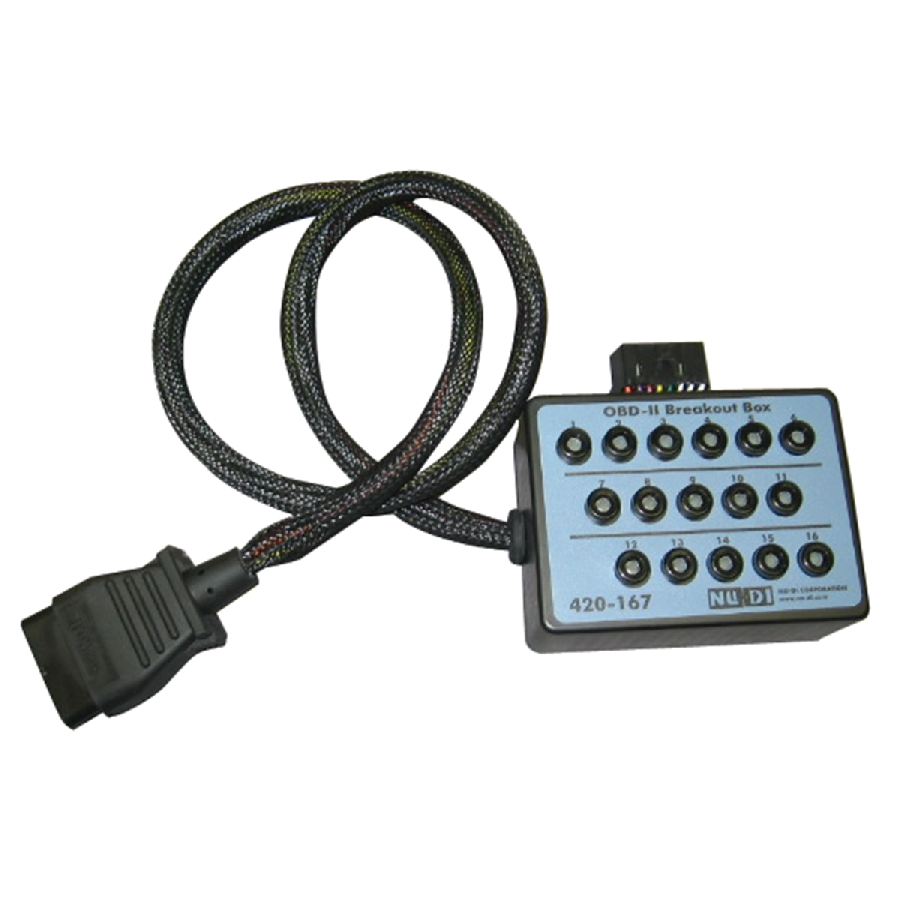

Specifications

• Manufacturer: NUDI NUDI
• Model Number: 420-167
• Dimensions: 8 x 7.5 x 2.5 inches
• Weight: 0.86 lbs
• Connector Type: Standard 16-pin OBD-II male to female interface
• Interface: All 16 pins connected and accessible

Key Features

• 16-Pin Breakout Access: Provides direct, safe access to all 16 pins of the OBD-II diagnostic connector for testing and analysis.
• LED Indicators: Equipped with built-in LEDs that visually indicate signal activity for power, ground, and various communication lines such as CAN High, CAN Low, K-Line, L-Line, J1850 VPW, and J1850 PWM.
• Probe Points: Features clearly labeled test points on each pin for easy connection of multimeters, oscilloscopes, and other diagnostic tools.
• Durable Construction: Designed with robust materials to withstand demanding use in automotive workshop environments.

Applications

• Vehicle Diagnostics: Essential for advanced troubleshooting and diagnosing issues in OBD-II compliant vehicles.
• ECU Communication Analysis: Used to monitor and analyze data streams and communication protocols directly from the Engine Control Unit (ECU).
• Module Testing: Facilitates testing and power cycling of individual vehicle modules by providing controlled access to communication lines and power sources.
• Custom Wiring: Enables technicians to easily connect custom wiring harnesses or diagnostic equipment to the vehicle's OBD-II port without splicing.
• CAN Bus Monitoring: Allows for precise monitoring and analysis of CAN bus activity, including data packets and signal integrity.

Benefits

• Streamlined Troubleshooting: Simplifies complex diagnostic procedures by providing a convenient and secure way to access all OBD-II signals.
• Enhanced Safety: Reduces the risk of accidental shorts or damage to the vehicle's OBD-II port during electrical testing.
• Improved Accuracy: Delivers clear visual feedback through LED indicators, helping technicians quickly identify active communication lines and power states.
• Versatile Testing: Supports a wide range of diagnostic tasks, from basic voltage checks to advanced CAN bus analysis, improving workflow efficiency.
• Non-Invasive Access: Allows for comprehensive electrical testing and monitoring without modifying or damaging the vehicle’s original wiring.
