Master Brake Bleed Kit - Mityvac

Mityvac | Master Brake Bleed Kit | MV6838

The powerful Mityvac Venturi Brake Bleeder MV6830 is the heart of this ultimate one-man bleeding system. The bleeder uses compressed shop-air to create a powerful vacuum capable of bleeding up to two quarts (1.9 liters) per minute. It features a variable thumb throttle and swivel air inlet, as well as an automatic shutoff to prevent overfill, and a quick change coupler for speedy accessory changes.

The MV6838 Master Brake Bleed Kit combines the MV6830 venturi bleeder with a clamp-on style master cylinder refill kit and plate-style refill kit, for total coverage of all makes and models of vehicles and master cylinders.

Key Features:

• Compressed air operation
• Integrated 1.9 quart (1.8 liter) capacity fluid collection reservoir
• Variable control thumb throttle
• Swivel air inlet with quick disconnect
• Automatically maintains fluid level in master cylinder
• Two refill kit styles ensure a fit to all makes and models of vehicles

Includes:

• Brake bleeder
• 6' (1.8 m) long bleed hose assembly
• 4' (1.2 m) long fluid evacuation hose
• Molded base with screws for bench mounting
• Hanging hook

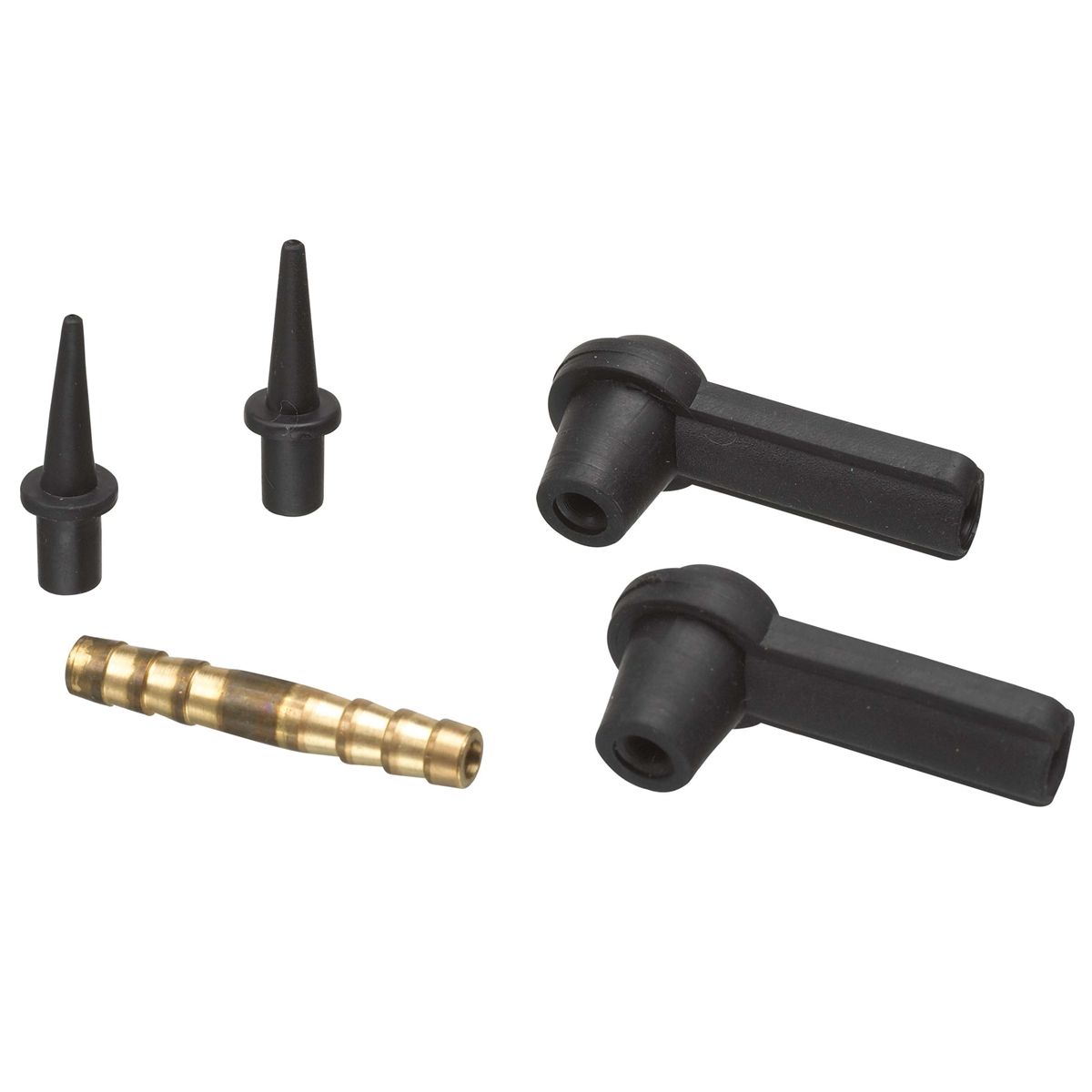

• 3 Universal bleed screw adapters
• Master Auto-refill Kit (MVA6836)
• User Manual (English/French/Spanish/German)

Specifications:

• Bleeder Reservoir Capacity: 1.9 quarts (1.8 liters)
• Refill Reservoir Capacity: 40 oz (1.2 liters)
• Working Pressure: 60 - 150 psi (4.1 - 10.3 bar)
• Vacuum @ 90 psi (6.2 bar): 26 in. Hg (88 kPa)
• Air Consumption @ 90 psi (6.2 bar): 4.3 cfm (2.0 l/s)
• Flow Rate @ 60 psi (4.1 bar): 50 oz/min (1460 ml/min)
• Flow Rate @ 90 psi (6.2 bar): 70 oz/min (2100 ml/min)
• Flow Rate @ 150 psi (10.3 bar): 70 oz/min (2100 ml/min)
• Inlet Thread Size: 1/4" NPT
• Packaged Weight: 6.73 lbs (3.05 kg)
• Size: 15.5" wide x 10.8" tall x 8.8" deep (395 mm wide x 275 mm tall x 225 mm deep)

Mityvac MV6838 Master Brake Bleed Kit
