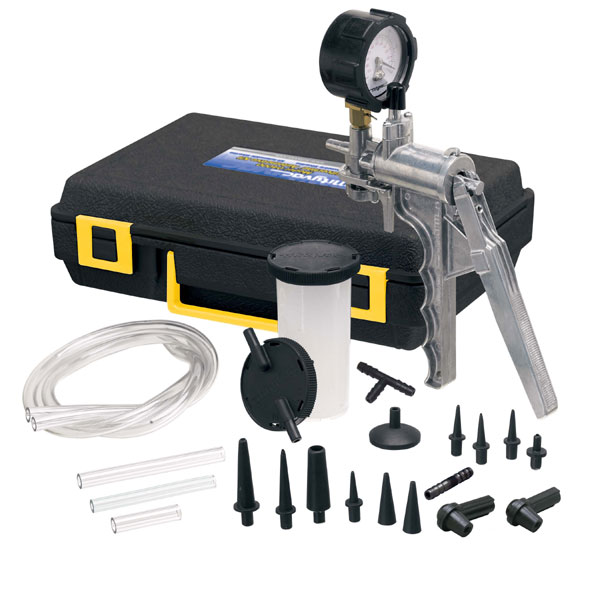

Silverline Automotive Test Kit - Mityvac

Limited quantity! This item is being replaced by Mitvac MV85000 Silverline Elite Pump Kit. When current inventory is gone, the 04000 is not re-orderable.

Mityvac's Silverline hand vacuum/pressure pumps and kits are designed for the service professional. The 04000 kit features a durable aluminum die cast pump, and includes accessories carefully selected for maximum versatility. All components come packed in a tough custom molded case.

Includes:

• Mityvac Silverline hand vacuum/pressure pump (Model No. 04010) with 2" (50 mm) diameter gauge and rubber boot protector
• 4.5 oz. (135 ml) fluid reservoir bottle with fluid transfer and storage lids
• (7) Tapered adapters for connecting to tubing from .090" to .50" ID (2.3 mm to 13 mm ID)
• (2) Tapered manifold plugs
• (2) Universal bleed screw adapters
• Vacuum "T" (2) 1/4" ID x 24" long (6.4 mm ID x 610 mm long) connection tubes
• 5/32" ID x 1/4" ID (4 mm ID x 6.4 mm ID) tubing adapter
• 1/4" ID x 1 1/2" long (6.4 mm ID x 40 mm long) connection tube
• 5/32" ID x 3" long (4 mm ID x 75 mm long) connection tube
• 1/4" ID x 3 5/8" long (6.4 mm ID x 90 mm long) connection tube
• Rubber cupped adapter
• Custom molded case
• User manual (English/French/Spanish/German)

Specifications:

• Packaged Weight: 3.3 lbs (1.5 kg)
• Packaged Size: 12" x 8" x 3 3/8" (305 mm x 205 mm x 85 mm)
• Pump Displacement: 1 cu. in. (16 cc) per stroke
• Max. Vacuum: 25 in. Hg (85 kPa)
• Max. Pressure: 25 psi (172 kPa)
• Gauge Indication: 0 - 30 in. Hg (0 - 100 kPa)

Mityvac 04000 Silverline(TM) Automotive Test Kit
