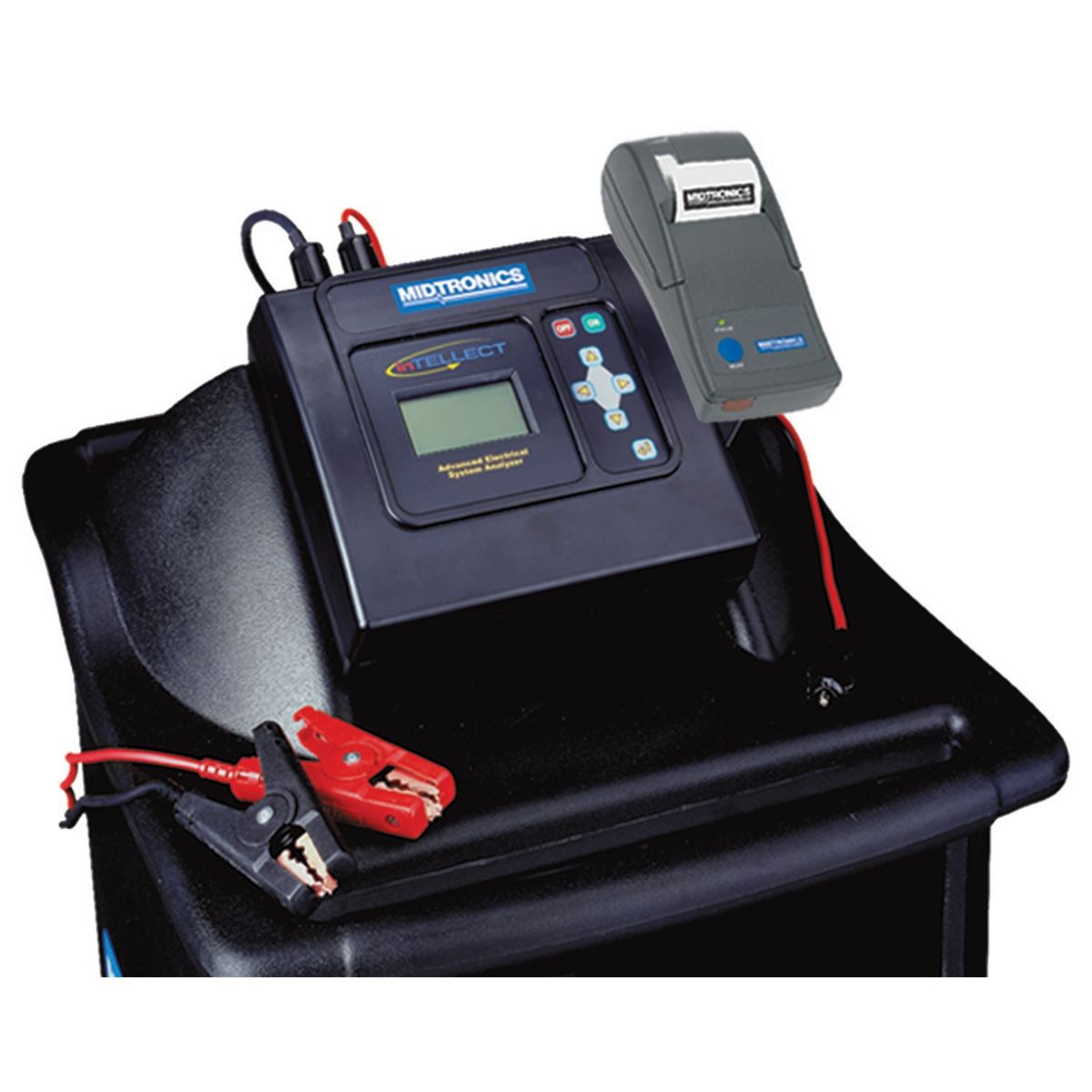

Midtronics ESA800K inTELLECTT Battery / Electrical System - Midtronics

Part #: ESA800K

Simple diagnosing!

  • The inTELLECT is the first complete battery and electrical system analyzer designed specifically for the professional service environment, making it a must for any serious garage operation.
  • The inTELLECT combines Midtronics' innovative technologies for testing the battery, starting and charging systems, along with additional tools and diagnostics, all contained in a rugged cart-mounted platform designed for shop use.
  • The inTELLECT offers simple user interface by providing a large graphics screen for displaying test information and customized test procedure instructions. This allows your customer to see the results and understand what they need, so you can quickly complete the sale.
  • Its unique graphic output and additional diagnostic information about the test results are available both on the screen or by using the included IR printer.
  • The unit does not require the user to make additional connections or disable the ignition system before testing. Simply start the vehicle and the inTELLECT instantly captures the starter cranking voltage and time to start.
  • The inTELLECT's menu-driven interface simplifies electrical system diagnostics. Your time spent diagnosing the system will be measured in seconds, not hours, allowing you more time to focus on fixing the problem.
  • Put it all together, and you get the most complete battery/electrical service tool for any garage. Specifications:
  • 6 and 12-volt automotive, commercial and marine batteries; 12 and 24-volt charging system diagnostics
  • Contains an internal battery as well as an external charger
  • Operating ranges: 100 - 1700 CCA 100 - 1700 CA; 100 - 1700 SAE 100-1700 DIN; 100 - 1700 EN 100 - 1700 IEC; 100 - 1700 MCA - using marine algorithm JIS numbers - using JIS algorithm
  • Voltmeter: 0 - 32-volts DC, @ n .05 VDC
  • Temperature compensation automatic
  • Operating Temp: 0?-120°
  • Test leads: Dual conductor Kelvin clamps; Auxiliary test lead for parasitic drain test clamp
  • Housing material: Acid-resistant ABS plastic
  • Weight: 70 lbs.
