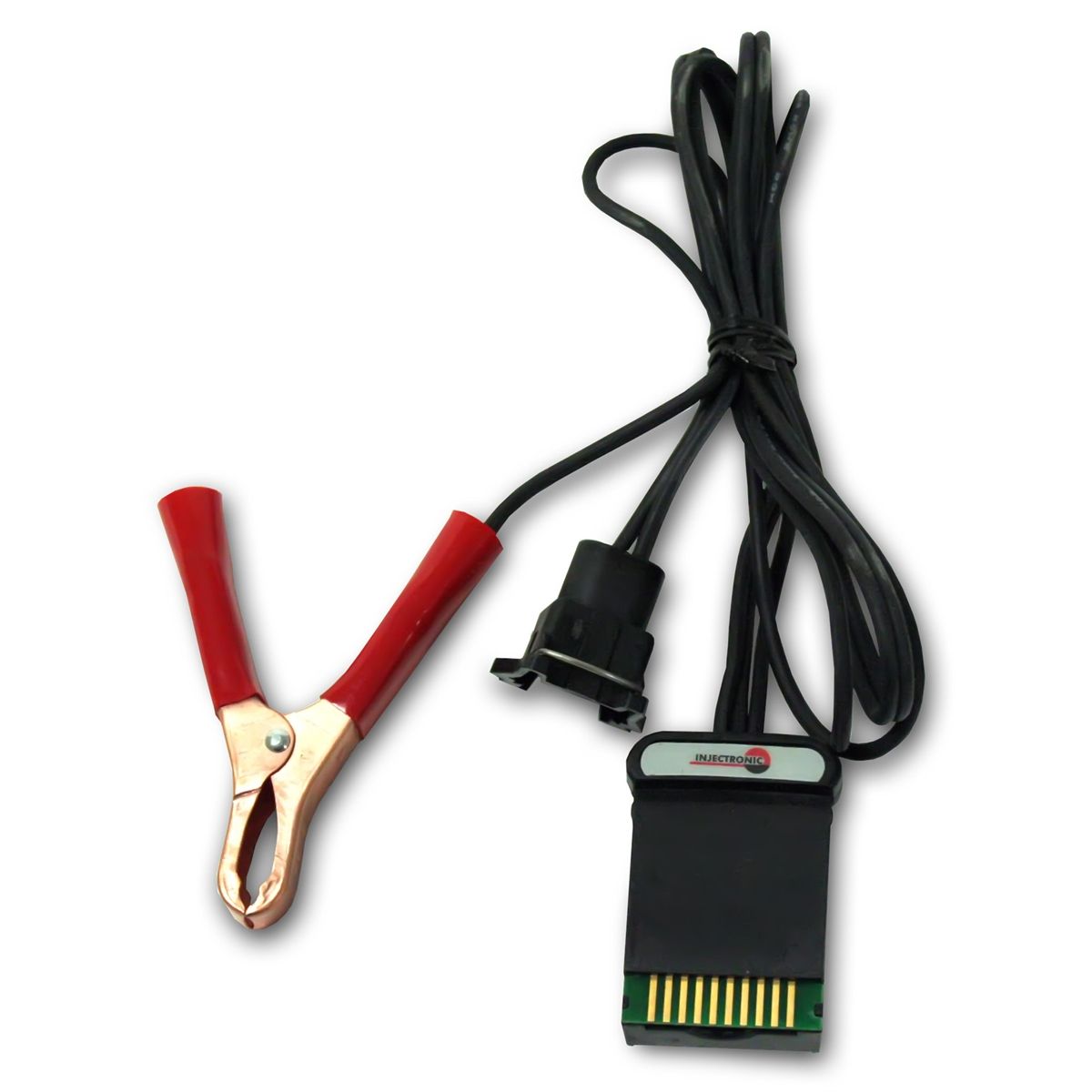

Injector tester for CJ4 scantool - Injectoclean

Features and Benefits:

• Triggers injectors for balance testing
• Simulates various engine running conditions
• Preset settings
• Programmable cycles
• Fits the expansion port of CJ4 scantool

The Injector Tester allows the CJ4 scantool to detect faulty injectors. It triggers one injector at a time for balance testing, long cleaning cycles when used in conjunction with a flow bench.

The injector tester module fits the expansion port of the CJ4.

Features and specifications:
- Draws current to activate injector from the vehicle battery.
- FIXED INJECTION. Simulates 600, 1000, 2000, 3000, 4000, 6000, 7000 and 8000 RPMs for 30 Seconds.
- CLEANING CYCLES. 600 to 8000 RPMS for test cycles of 4 and 10 minutes.
- PROGRAMMED CYCLES. User programmable to simulate virtually all conditions in the vehicle. From 600 TO 7000 rpms in 100´s increments and 1 to 90 seconds (1 second increments).
- QUICK TEST. 1, 2, 25, 50 and 100 pulses to complete 500 ms Duty cycle
