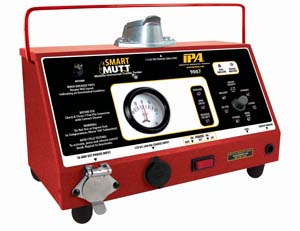

Smart MUTT Head (Semi Style) - Innovative Products of America

The Innovative Products of America (IPA) Smart MUTT Head (Semi Style), Model 9007, is a robust, portable diagnostic trailer tester engineered for professional technicians and mechanics. This essential tool streamlines the inspection and troubleshooting of electrical systems and ABS on commercial semi-trailers, ensuring efficient, one-person operation and minimizing downtime due to electrical faults. Designed for 7-way round pin connections, the Smart MUTT Head is a critical asset for comprehensive trailer maintenance and pre-trip inspections.

Key Features

• Comprehensive Electrical Diagnostics: Provides detailed testing of trailer lights, identifying cross, open, overloaded, and short circuits with audible and visual alerts.
• One-Person Operation with Remote Control: Features a 12-button remote control with a 200+ ft. range, enabling technicians to activate circuits and observe results remotely, significantly reducing inspection time.
• Advanced Ground Fault Detection: Differentiates between wire and chassis ground failures, allowing for precise identification of grounding issues.
• Patented Pulsar® Mode: Utilizes Pulsar® mode to safely chase down and diagnose short circuits without repeatedly blowing fuses, improving diagnostic efficiency.
• ABS Blink Code Access: Facilitates access to ABS blink codes via auxiliary and brake circuit activation, supporting diagnostics for various ABS systems like Meritor/Wabco, Bendix® TABS-6, and Haldex.
• Durable Construction: Built with powder-coated steel, ensuring longevity and resilience in demanding shop and roadside environments.

Applications

The Smart MUTT Head (Semi Style) is an indispensable tool for commercial fleet maintenance, truck repair shops, and mobile service technicians. It is specifically designed to test the electrical and ABS systems of heavy-duty trailers utilizing 7-way round pin connections. Use it for routine trailer inspections, pre-delivery checks, and diagnosing complex electrical issues, including trailer wiring problems, faulty lighting circuits, and ABS system malfunctions, thereby preventing expensive road calls and citations.

Specifications

• Connection Type: 7-Way Round Pin
• Power Input: 12/24V DC
• Source Output: 20A @ 12/24V DC
• Controls: Manual, Remote, Automatic
• Material: Powder-Coated Steel
• Weight: Approximately 15 lbs.
• Dimensions: 12" L x 9.5" W x 9" H
