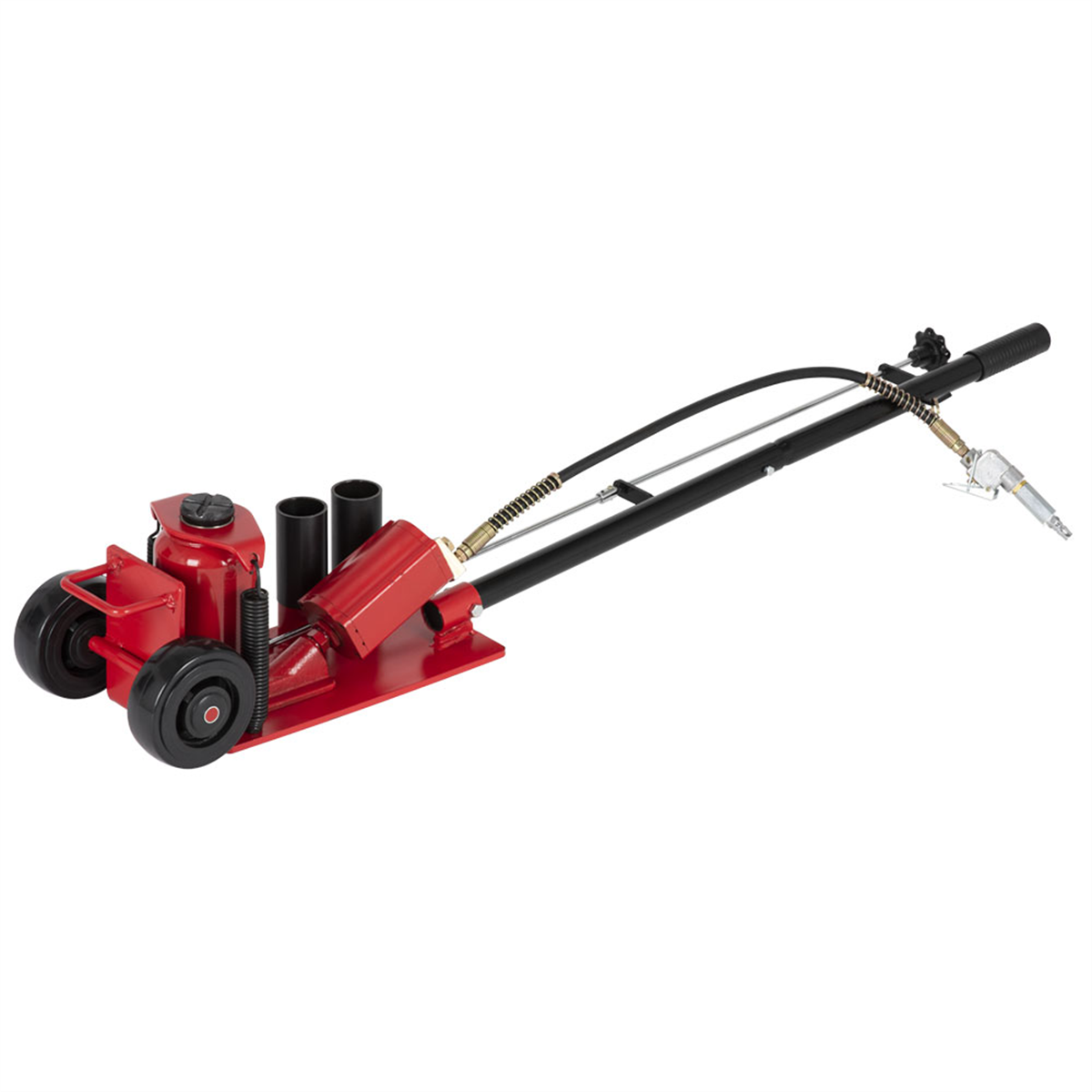

AFF - Axle Jack - 20 Ton Capacity - Spring Return - Air/Hydrauli

Features and Benefits:

• Color: Red/Black
• Capacity: 20 Tons
• Product Type: Axle Jack
• Stages: 1
• Power Type: Hydraulic
• Operation Type: Air Assist
• Duty Level: Heavy Duty
• Minimum Height (in.): 8.66"
• Maximum Height without Extensions: 12.6"
• Maximum Height with Extensions: 23.5"
• Ram Lift (in.) - Stage 1: 3.94"
• Ram Lift (in.) - Stage 2: N/A
• Ram Lift (in.) - Stage 3: N/A
• Capacity (T) - Stage 1: 20 Tons
• Capacity (T) - Stage 2: N/A
• Capacity (T) - Stage 3: N/A
• Handle Length (in.): 35.5"
• Number of Handle Pieces: 1
• Handle Locking Positions: N/A
• Chassis Length (in.): 17.8"
• Chassis Width (in.): 8.9"
• Saddle Diameter: 2"
• Number of Extensions: 2
• Extension Sizes (in.): 4" & 4"
• Extension Screw: 2.78"
• Wheel Diameter (in.): 5"
• Working Air Pressure: 90-180 PSI
• Weight: 50 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Special Features: Lightweight|Dual Return Springs|High Speed Air Motor|Overload BypassAmerican Forge & Foundry?s Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service, fleet maintenance, agriculture, military sectors, and much more.
• Ideal for lifting trucks, trailers, tractors, and any other heavy-duty equipment.
• Lightweight design is ideal for mobile service repair.
• Spring driven self-retracting ram eliminates manual lowering of ram.
• Oil resistant polyurethane wrapped wheels provide increased mobility around the shop floor.
• Fast, efficient air motor reduces time to lift the load.
• Narrow chassis design fits easily between tandem wheels.
• Overload and bypass safety valves prevent the jack from being used beyond its rated capacity.
• Meets ASME
