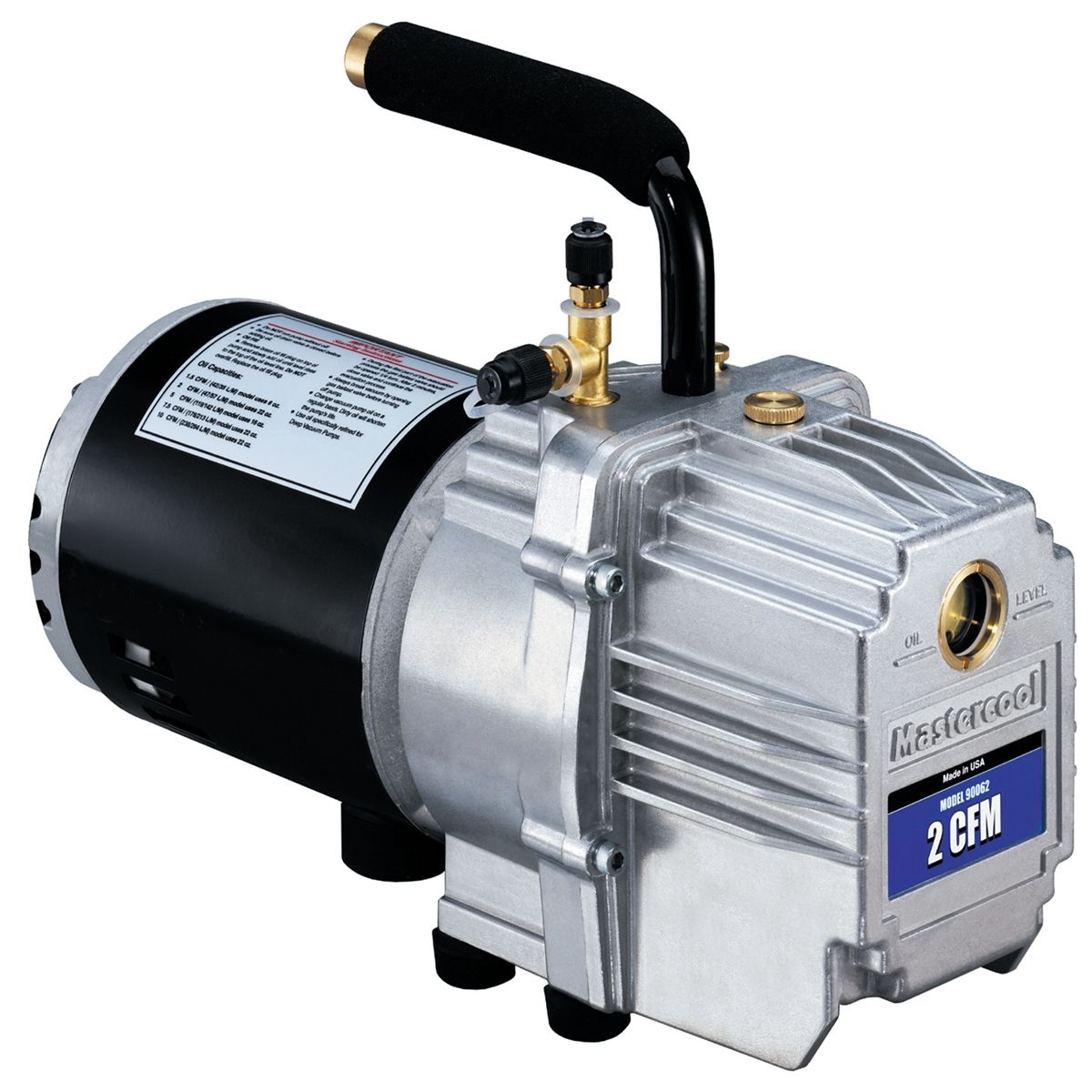

c. Rotary Vane Deep Vacuum Pump - 2 CFM - Mastercool

Part #: 90062

  • Manifold valve isolates pump from the system when testing for leaks. Includes three inlet ports - 1/4", 3/8" SAE and 1/2" ACME.
  • Internal check valve stops oil blowout in case of accidental power loss.
  • Gas ballast valve helps prevent oil contamination caused by high moisture.
  • Center oil fill ports is accessible from front as well as sides.
  • Durable light weight die cast aluminum housing.
  • Delrin vanes provide quieter, longer lasting performance.
  • Two-stage design allows lower pumping pressure resulting in deeper ultimate vacuum.
  • Oil drain valve positioned at bottom of oil reservoir assures maximum drainage.
  • Ultimate vacuum: 70 Microns
  • Motor: 1/3 HP
  • Pump Speed: 1725 RPM
  • Electrical Specs: 110V/60HZ
  • Shipping Weight: 28 Lbs.


  • Mastercool 90062 Single-Stage Rotary Vane Deep Vacuum Pump - 2 CFM

    Recommended Alternatives

    • Mastercool
      Other products
      Mastercool Homepage
    • Model: 91018
    • Shipping Weight: 28lbs
    • UPC: 700376900620
    • Manufacturers Part #: 90062
    • Manufactured by: Mastercool
    • Also Known As: ME90062, MSC90062

    This product was added to our catalog on Monday 22 January, 2007.
