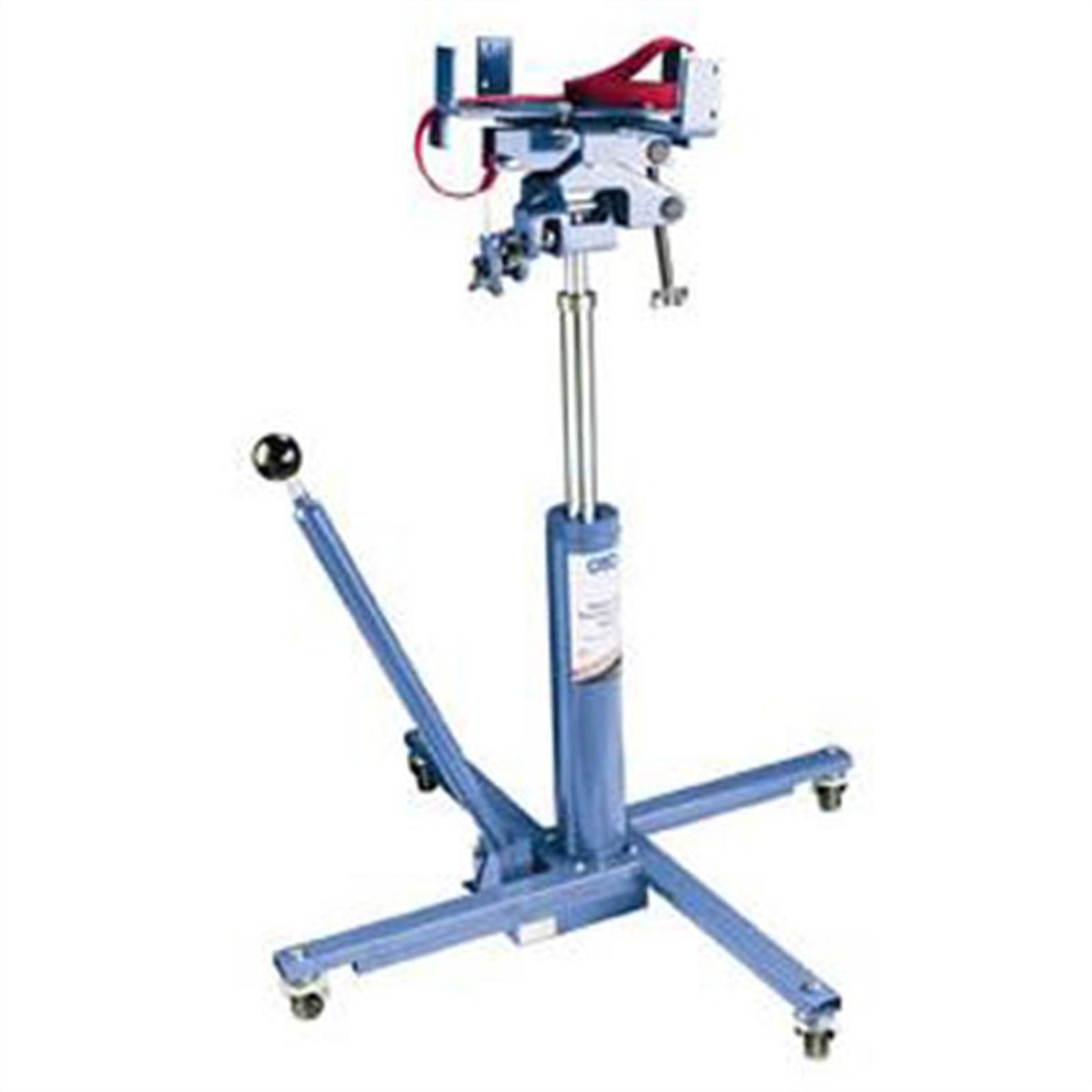

High-Lift Transmission Jack - 1,000 lb Cap - OTC Tools and Equipment

The OTC Tools and Equipment 1792 High-Lift Transmission Jack is a robust solution designed for professional mechanics tackling transmission removal and installation. With a substantial 1,000 lb lifting capacity, this jack provides the stability and precise control necessary for handling a variety of automotive and industrial transmissions, streamlining repair processes in the workshop.

Key Features

• Universal Mounting Head: The jack features a universal mounting head that offers a wide range of tilt capabilities, including 50 degrees forward, 38 degrees backward, and 14 degrees side-to-side, which greatly simplifies transmission alignment and positioning.
• Secure Load Handling: An adjustable nylon tie-down strap is integrated to safely secure the transmission or other components during lifting, lowering, and transport, preventing accidental shifts.
• Two-Stage Hydraulic Cylinder: Engineered with a two-stage hydraulic cylinder, this jack allows for rapid lifting of transmissions, accelerating the process of bringing them into optimal position for installation or removal.
• Integrated Hand Pump: The integral hydraulic pumping unit is hand-operated, providing technicians with fine-tuned control over lifting and lowering operations.
• Ergonomic Pump Handle: The conveniently located pump handle ensures precise control, enabling smooth and accurate maneuvering when removing or replacing a transmission.
• Durable Construction: Built for the demands of professional environments, the jack features flash-chromed rams to resist rust and prolong the life of the hydraulic system, ensuring long-term reliability.

Applications

This high-lift transmission jack is an essential tool for automotive repair shops, fleet service centers, and various industrial settings. It is specifically designed for the efficient removal, installation, and servicing of transmissions on passenger cars, light trucks, and other comparable equipment. Its extended lift range makes it particularly suitable for under-hoist applications where significant vertical clearance is required.

Specifications

• Max. Load Capacity: 1,000 lbs.
• Overall Height (Low Position): 36"
• Max. Height: 73 1/2"
• Max. Forward Tilt: 50 degrees
• Max. Backward Tilt: 38 degrees
• Max. Side Tilt: 14 degrees
• Leg Width: 40"
• Weight: 118 lbs.
