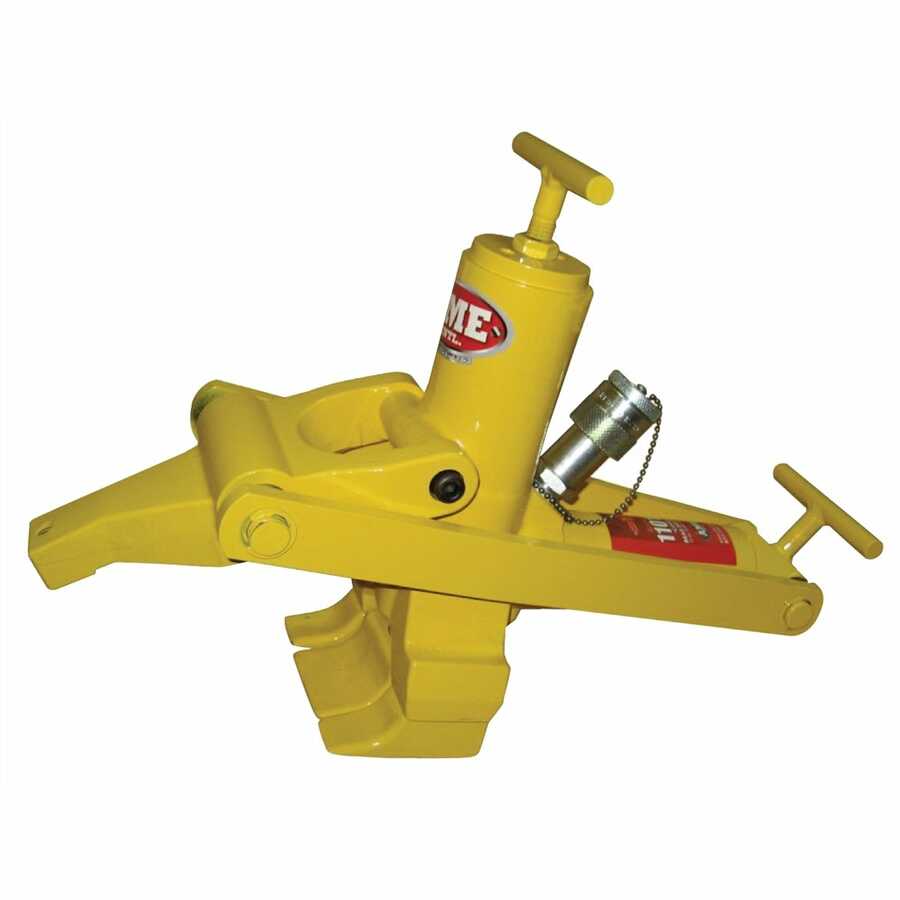

COMBI TIRE BEAD BREAKER

AME International | COMBI TIRE BEAD BREAKER | 11010

The AME International COMBI TIRE BEAD BREAKER is the most popular tool for breaking beads on all agricultural wheels. It can also be used on construction wheels up to 25”. The COMBI TIRE BEAD BREAKER works on single, 2 and 3 piece wheels. The tool clamps hydraulically to the wheel and then breaks the bead with 11 tons of force. It has a stroke length of 3.75” (9.5 cm). The COMBI TIRE BEAD BREAKER is equipped with a High-Flow coupling but can be requested with a Parker Series quick connect coupler (model 11010P). It is used with a 10,000psi (700 bar) air/hydraulic pump and weighs 34 lbs. (15.5 kg).

Key Features

• Most popular tool for breaking beads on all agricultural wheels
• Used on construction wheels up to 25”
• Works on single, 2 and 3 piece wheels
• Tool clamps hydraulically to the wheel and then breaks bead with 11 tons of force
• 3.75” (9.5 cm) stroke length
• Equipped with High-Flow coupling but can be requested with Parker Series quick connect coupler (model 11010P)
• Used with 10,000psi (700 bar) air/hydraulic pump
• Weight 34 lbs. (15.5 kg)

Applications

• Agriculture
• Construction

Benefits

• Most popular tool for breaking beads on all agricultural wheels
• Works on construction wheels up to 25”
• Works on single, 2 and 3 piece wheels
• Heavy-duty construction for long life
• High-Flow coupling for fast, efficient operation
• Parker Series quick connect coupler available for use with other air/hydraulic tools
• 10,000psi (700 bar) air/hydraulic pump required
