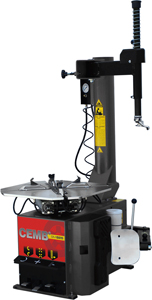

Semi-Automatic Swing Arm Tire - CEMB-SHOP EQUIPMENT

The CEMB-SHOP EQUIPMENT SM825PRESSA is a robust, semi-automatic swing arm tire changer engineered for professional automotive and industrial workshops. Designed to enhance efficiency and safeguard valuable wheels, this machine provides reliable performance for a diverse range of tire service applications, from standard OEM fitments to challenging custom and stiff-sidewall tires.

Key Features

• Semi-Automatic Swing Arm Design: Features a space-saving swing arm that simplifies tire placement and removal, making it suitable for shops with various layout configurations.
• Integrated Press Arm: Equipped with a high-performance press arm system to effortlessly manage stiff sidewall, low-profile, and run-flat tires, reducing technician effort and preventing wheel damage.
• Dual Clamping Cylinders with Rim Protection: Features dual table clamping cylinders with value-added specifications, including replaceable plastic inserts on the mount/demount head, to securely grip rims while protecting alloy wheels from scratches.
• Adjustable Bead Breaker: A powerful, multi-angle adjustable bead breaker shovel is designed to effectively loosen even the most stubborn and seized tire beads.
• Dual-Stage Inflation System: Includes bead seating inflation jets integrated into the clamping jaws and a dual-stage inflation system with a safety limiter for fast, safe, and efficient bead seating.
• Durable Construction: Built with a rugged frame and professional-grade components to ensure long-term durability and consistent performance in demanding shop environments.

Applications

The CEMB SM825PRESSA is an ideal solution for mid-to-high volume tire shops, independent garages, and automotive service centers. It is perfectly suited for servicing most passenger car and light truck tires, including those with stiff sidewalls, custom wheels, and various OEM fitments. Its versatility also extends to handling low-profile and run-flat applications with precision and control.

Specifications

• Rim Clamping Range (External): 12" - 24"
• Maximum Tire Diameter: 44" (1118 mm)
• Maximum Wheel Width: 15" (380 mm)
• Power Supply: 110V, 1ph and Compressed Air
• Air Pressure Requirement: 145 psi (10 bar)
• Turn Table Speed: 8-15 rpm
• Shipping Weight: 630 lbs (286 kg)
