What's the difference between thread chasing and thread cutting (re-threading)?

Thread chasing is a process of cleaning and reforming existing threads without removing significant material. Thread chasers, like those found in Lang Tools thread chaser kits, are designed to restore damaged or dirty threads to their original form. Thread cutting, on the other hand, involves using a tap or die to create new threads or significantly alter existing ones, removing material in the process. Thread cutting is necessary when threads are severely damaged or stripped, while thread chasing is suitable for minor imperfections or cleaning.

When should I use a thread repair insert (like a Time-Sert or similar) versus a thread chaser?

A thread repair insert, such as a Kent-Moore J-42385 series insert or a Time-Sert, is best used when threads are severely damaged or stripped to the point where a thread chaser won't suffice. Inserts provide a new, strong thread within the original hole, often stronger than the original threads. Thread chasers are suitable for minor thread damage, cleaning corroded threads, or removing debris. If a bolt is loose even after chasing the threads, an insert is likely the appropriate solution.

What are external thread repair tools, and how do they work?

External thread repair tools, like the NES 1000 Tool Set, are designed to repair damaged external threads on bolts, studs, and other cylindrical parts. These tools typically consist of a set of hardened cutting blades or dies that conform to the thread profile. By clamping the tool onto the damaged threads and rotating it, the blades reshape and restore the threads to their original form. Always start slowly and use cutting oil to minimize heat and friction. Verify the tool's pitch range matches your fastener.

What should I consider when selecting a thread repair kit for automotive brake lines?

When selecting a thread repair kit for brake lines, ensure the kit includes the correct thread size and pitch for your specific application. Brake line fittings often have fine threads, so a standard thread repair kit may not be suitable. Consider a kit specifically designed for brake lines or hydraulic fittings. Also, confirm that the repair method is compatible with the brake line material (e.g., steel or copper) to prevent corrosion or leaks. Always test the repaired connection for leaks before operating the vehicle.

Are thread repair inserts permanent, and what affects their longevity?

Thread repair inserts, when properly installed, offer a durable and often permanent thread repair solution. Their longevity depends on factors such as the quality of the insert material (e.g., stainless steel), the accuracy of the installation, and the operating conditions (temperature, load, vibration). For critical applications, such as engine head bolts, using high-quality inserts like Kent-Moore J-42385 series and following the manufacturer's installation instructions are crucial for long-term reliability.

Can thread repair tools be used on spark plug threads, and what precautions should I take?

Yes, thread repair tools, specifically thread repair insert kits, can be used to repair damaged spark plug threads in cylinder heads. However, it's crucial to use a kit designed for spark plug threads to ensure the correct thread size and reach. When installing the insert, carefully follow the manufacturer's instructions to avoid damaging the cylinder head or the spark plug. Ensure the insert is properly seated and torqued to prevent leaks or spark plug ejection. Consider using anti-seize compound on the spark plug threads during reinstallation.

What are the common thread sizes and pitches encountered in import vehicles, and how do I identify them for repair?

Import vehicles commonly use metric thread sizes and pitches, such as M6x1.0, M8x1.25, M10x1.5, M12x1.75, and M14x1.5. To identify the correct thread size and pitch, use a thread gauge or pitch gauge. These tools allow you to accurately measure the distance between threads and determine the thread size. Alternatively, consult the vehicle's service manual or parts catalog for the specific thread specifications. Using the wrong thread size or pitch can damage the threads and compromise the repair.

What safety precautions should I take when using thread repair tools?

When using thread repair tools, always wear appropriate personal protective equipment (PPE), including safety glasses or a face shield to protect your eyes from flying debris. Use gloves to protect your hands from sharp edges and chemicals. Ensure the workpiece is securely clamped or held in place to prevent movement during the repair process. When using power tools, such as drills or taps, follow the manufacturer's safety instructions and use the correct speed and feed rates. Apply cutting fluid or lubricant to reduce friction and heat, and to prevent tool damage. Be mindful of hot metal parts after chasing/cutting threads.

Search

Manufacturers [more]

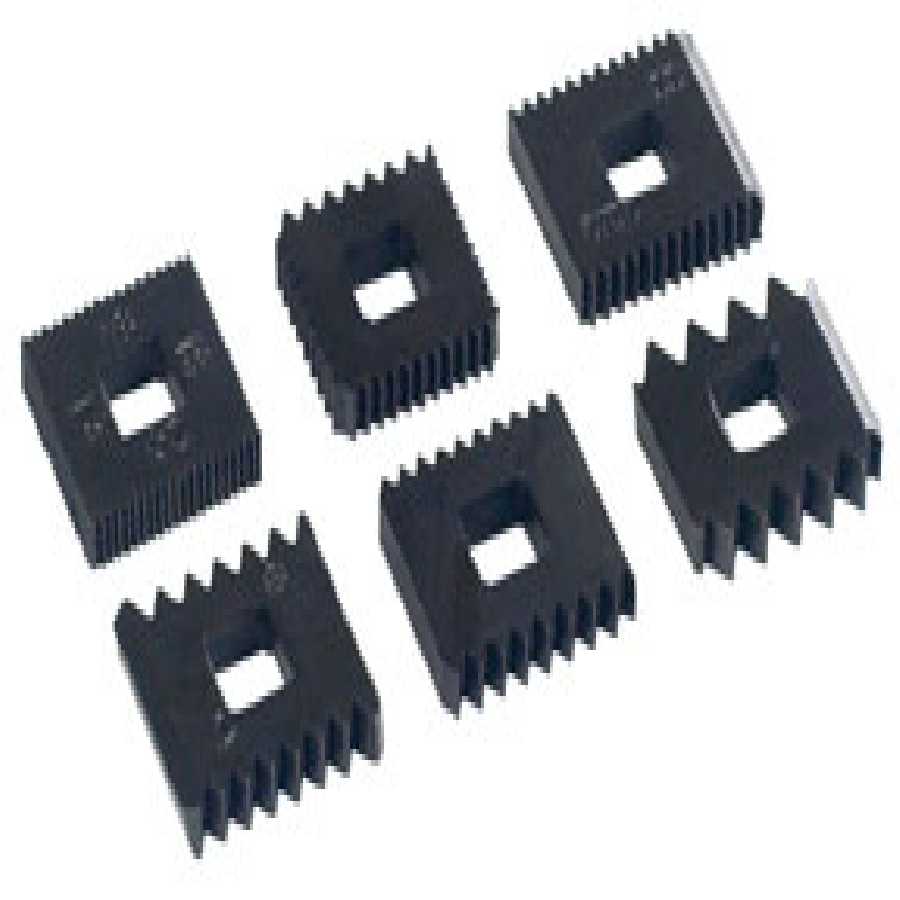

OTC Tools and Equipment | 216884 | Standard Thread Chaser Die Set w 6 Dies for 7402

Name: Standard Thread Chaser Die Set w 6 Dies for 7402
Brand: OTC Tools and Equipment
SKU: 62981
Price: 43.86 USD
Availability: InStock
Rating: 3 (1 reviews)

larger image

Specifications

Model Number: OTC 216884
Weight: 0.3 lbs
Dimensions: 3 x 2 x 1 inches
Thread Sizes Included: 4, 5, 6, 7, 7-1/2, 8, 9, 10, 11, 11-1/2, 12, 14, 16, 18, 20, and 24 threads per inch.
Number of Dies: 6-piece fractional die set.

Key Features

Seamless Replacement: Designed as a replacement for the OTC 7402 thread chaser, ensuring compatibility and smooth operation.
Durable Construction: Engineered for long-lasting performance in demanding workshop environments.
Versatile Thread Sizes: Includes a range of 6 dies to tackle a variety of fractional threading needs.
Compact and Portable: Lightweight design fits easily in toolboxes, making storage and transport simple.

Applications

Mechanics and Repair Work: Perfect for automotive professionals needing precise thread repair for bolts and nuts during maintenance.
Automotive Industry: A reliable solution for restoring or creating threads with exact specifications in vehicles and machinery.
Metalworking Tasks: Ideal for general metalworking applications, ensuring consistent quality in thread creation.

Benefits

Cost-Effective: Replaces worn-out dies, reducing expenses on multiple individual replacements.
Increased Efficiency: With six thread sizes available in one set, minimizes downtime and boosts productivity.
Accurate Results: Delivers precision threading, essential for high-quality repairs and manufacturing.
Enhanced Compatibility: Designed to integrate seamlessly with the OTC 7402 thread chaser for reliable performance.

Other products
OTC Tools and Equipment Homepage
Model: 62981
Shipping Weight: 0.2lbs
Manufacturers Part #: 216884
Manufactured by: OTC Tools and Equipment
Also Known As: OT216884, OTC216884, OTC-216884
