What's the difference between a tap and a die?

Taps and dies are both thread-cutting tools, but they create threads on different surfaces. A tap is used to cut internal threads inside a hole, such as in a nut or a cylinder head for spark plugs. A die, on the other hand, is used to cut external threads on a rod or bolt. For example, the Hanson High Carbon Steel (HCS) Metric Thread Plug Tap cuts threads inside a hole, while a die would be used to thread a rod of the same diameter.

What are the different types of taps, and when should I use each?

There are mainly three types of taps: taper, plug, and bottoming. Taper taps have a gradual taper that helps start the thread and are ideal for initial threading or when the hole goes all the way through the material. Plug taps have a less pronounced taper and are used after a taper tap to create a more complete thread. Bottoming taps have almost no taper and are used to cut threads to the very bottom of a blind hole. Vermont American offers various taper taps suitable for different applications.

What is a pipe tap, and how does it differ from a standard tap?

Pipe taps are designed to cut tapered threads, specifically National Pipe Taper (NPT) threads, which are used to create a tight seal in pipes and fittings. Unlike standard taps that cut straight threads, pipe taps create a conical thread that becomes tighter as the fitting is screwed in. For instance, the Hanson HCS Taper Pipe Tap is designed for creating these NPT threads in pipes, as opposed to standard threads for bolts and screws.

What do the markings on a tap or die mean (e.g., 1/4-20, M8 x 1.25)?

The markings on a tap or die indicate the thread size and pitch. For example, '1/4-20' means the tap or die is for a 1/4 inch diameter thread with 20 threads per inch (Unified National Coarse). 'M8 x 1.25' indicates a metric thread with an 8mm diameter and a thread pitch of 1.25mm. It's critical to match the tap or die to the correct fastener size and thread pitch to ensure proper fit and function.

What size drill bit should I use before tapping a hole?

The correct drill bit size is crucial for successful tapping. You need to use a drill bit that's slightly smaller than the tap's major diameter to allow the tap to cut the threads properly. The specific drill size is usually indicated on the tap packaging or in a tap drill chart. Some taps, like the Vermont American Pipe Tap, even have the drill size permanently marked on them. Always consult a tap drill chart or the tap manufacturer's recommendations for the correct size.

What is a tap socket, and when would I use one?

A tap socket is a specialized socket designed to hold and turn a tap, providing a secure and controlled grip. These are particularly useful when tapping in tight spaces or when needing consistent torque. Lisle offers tap sockets, such as the #9 Tap Socket, that provide a precise fit, improving leverage and reducing the risk of breaking the tap or damaging the threads.

What are some best practices for using taps and dies to avoid breakage?

To prevent breaking taps and dies, always use the correct cutting fluid or lubricant to reduce friction and heat. Start the tap or die straight and apply even pressure while turning, backing off occasionally to break chips. Avoid forcing the tool, as this can cause it to bind and break. Using a tap socket, like those from Lisle, can also help maintain alignment and control.

How do I re-thread a damaged spark plug hole?

Damaged spark plug holes can often be repaired using a rethread tap. These taps are designed to clean up or recut the existing threads in the cylinder head, allowing a new spark plug to be installed securely. The Lang M12 x 1.50 Rethread Tap is designed for this purpose, restoring damaged threads instead of cutting new ones. Always use cutting oil and work slowly to avoid damaging the cylinder head further.

Search

Manufacturers [more]

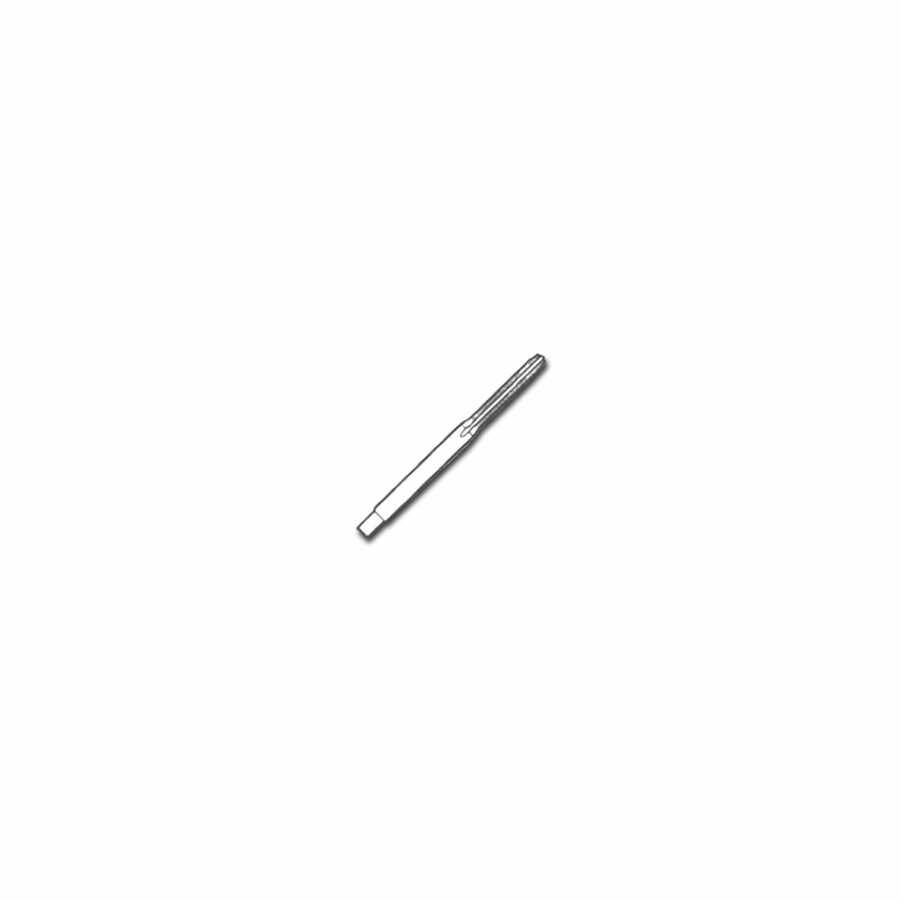

Metric Plug Tap, Sparkplug, 14mm - 1.25 - Vermont American

Name: Metric Plug Tap, Sparkplug, 14mm - 1.25
Brand: Vermont American
SKU: 51413
Price: 8.4 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

Part #: 21152

larger image

Specifications

Manufacturer: Vermont American
Model Number: 21152
Product Type: Metric Plug Tap
Application: Sparkplug Thread Repair
Thread Specification: 14mm x 1.25 Pitch
Weight: 0.1 lbs
Material: High-Speed Steel

Key Features

Specifically engineered for 14mm spark plug threads, ensuring precise fit and function.
Features a 1.25 metric thread pitch, compatible with common spark plug specifications.
Constructed from durable high-speed steel for excellent wear resistance and extended tool longevity.
Plug tap design allows for straightforward entry and effective thread cutting in various materials.

Applications

Repairing stripped or damaged spark plug threads in engine cylinder heads.
Cleaning carbon buildup and corrosion from spark plug ports for improved sealing.
Restoring thread integrity in automotive, motorcycle, and small engine repair tasks.
Preparing new or reconditioned cylinder heads for accurate spark plug installation.

Benefits

Restores the integrity of cylinder head spark plug holes, preventing the need for expensive head replacements.
Ensures a secure fit for spark plugs, which helps prevent blow-outs and maintains optimal engine compression.
Supports consistent engine performance and fuel efficiency by enabling correct spark plug function.
Provides a dependable solution for common thread damage, prolonging the lifespan of engine components.
Offers a precise and efficient method for thread maintenance, reducing overall repair time and effort.

Special Order Contact For Details

$8.40

Add to Cart:

Other products
Vermont American Homepage
Model: 51413
Shipping Weight: 0.1lbs
Manufacturers Part #: 21152
Manufactured by: Vermont American
Also Known As: VER21152, VA21152

Earn 1% Back On Every Purchase (Rewards Program)

We are Here To Help (Contact Us)

2 people have this item in their cart!

This product was added to our catalog on Friday 09 February, 2007.
